  • External Metric Phosphated E-Clip Retaining Ring DE-009-PA
  • External Metric Phosphated E-Clip Retaining Ring DE-009-PA
  • External Metric Phosphated E-Clip Retaining Ring DE-009-PA

    • External Metric Phosphated E-Clip Retaining Ring DE-009-PA

    DMR

    $0.00
    (No reviews yet) Write a Review
    SKU:
    DAE DE-009-PA
    Weight:
    0.00 LBS
    Material finish:
    Phosphate coating
    Ring material:
    Carbon spring steel (SAE 1060-1090/UNS G10600-G10900)
    RoHS & ELV compliant:
    Yes
    Size range:
    3.00 ~ 30.00 mm
    *Note:

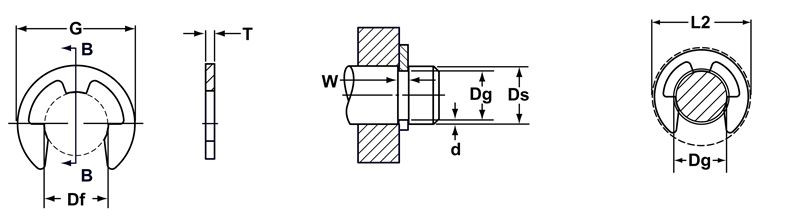

    The radius "R" on the load side must not exceed 0.1 T
    Recommendation:
    The standard finish is recommended over unfinished plain steel since it offers an extended shelf-life protection against rusting

    Product Description

    With regards to the DE series retaining rings, only the black phosphate coated (DE-PA) rings are listed in this database, however other finishes are available upon special request

    Alternate Finishes Available:

  • (DE-H) Stainless Steel - PH 15-7 Mo is an extra strength corrosion-resistant stainless steel, capable of preventing atmospheric oxidation at temperatures up to 900ยบ F
  • (DE-ZD) Yellow Zinc Dichromate - It affords the metal excellent salt spray protection (96 hours) and is particularly effective for applications exposed to seawater. This retaining rings zinc plated finish utilizes a mechanical plating process which effectively eliminates hydrogen embrittlement
  • (DE-Z3X) Trivalent Chromate Zinc Plus Sealer
  • (DE-ZF) Clear Bright Zinc



     adobepdficon.png  DMR Retaining Rings



    •

    Product Videos

    Custom Field

    Material finish Phosphate coating
    Ring material Carbon spring steel (SAE 1060-1090/UNS G10600-G10900)
    RoHS & ELV compliant Yes
    Size range 3.00 ~ 30.00 mm
    *Note The radius "R" on the load side must not exceed 0.1 T
    Recommendation The standard finish is recommended over unfinished plain steel since it offers an extended shelf-life protection against rusting
