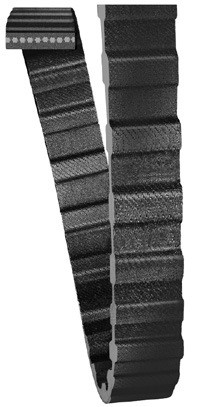

Dual Synchro-Cog® Timing Belt D800H100

Overview
Reviews

Product Description

Double-sided timing belt with a trapezoidal tooth profile provides synchronization and 100% load capacity from both sides of the belt.

Trapezoidal tooth profile provides maintenance-free synchronization with equal load capacity from both sides of the belt.

This feature is not found in every dual-sided belt on the market.

The Synchro-Cog® dual timing belt allows greater flexibility and efficiency in drive design.

The freedom to use a single belt for a series of pulleys results in a more efficient use of available space with decreased overall drive weight and cost.

The non-slip positive drive provides smooth, clean, quiet performance with optimum efficiency.

The belt features an advanced polymer construction with molded teeth that are sheer resistant and designed to assure smooth, positive meshing with the sprocket.

A tough nylon tooth facing is wear resistant.

High quality fiberglass cords are specially treated to provide strength, flex life and resistance to stretching.

The belt resists oil, heat, ozone, grease, and moisture for maximum belt life.

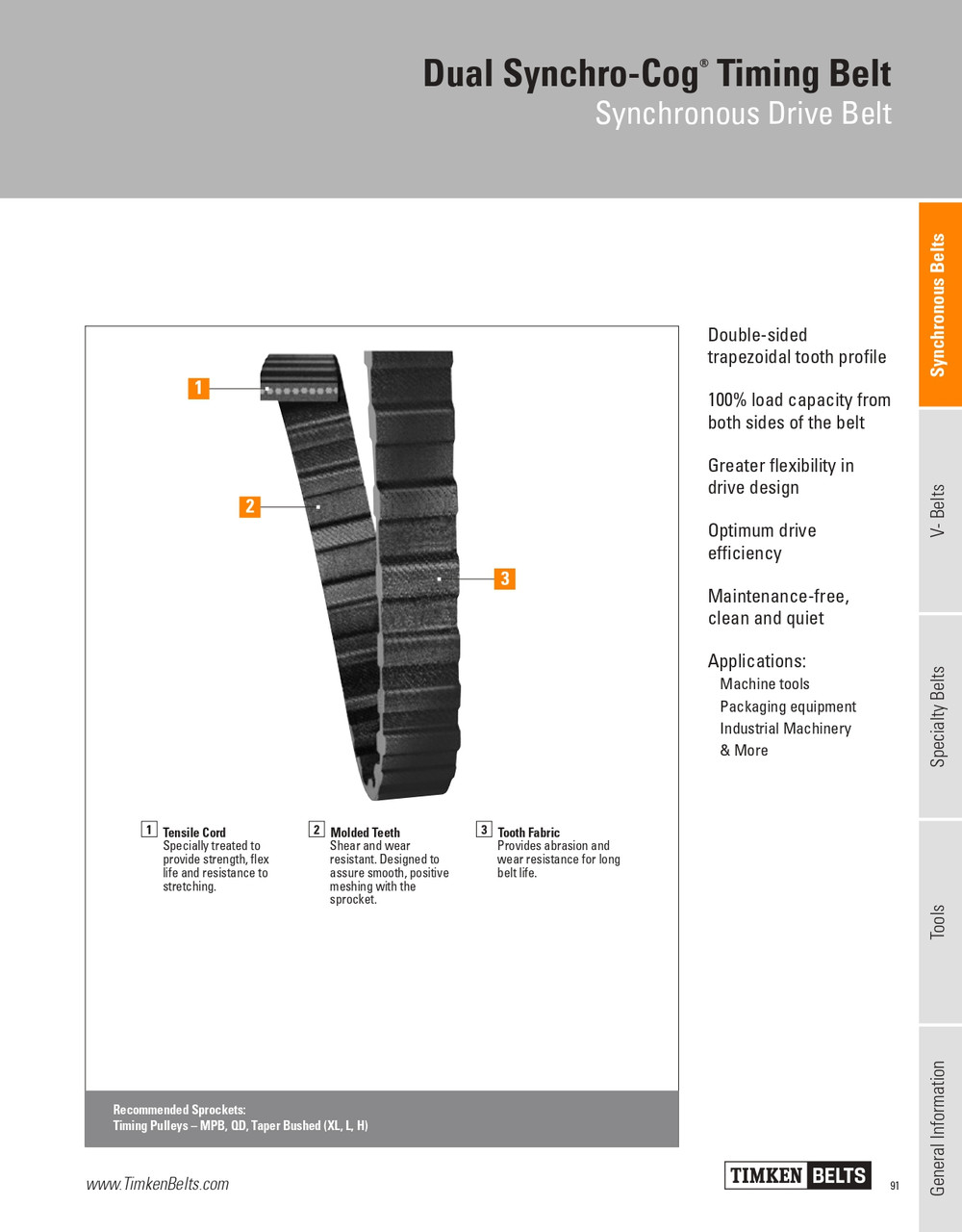

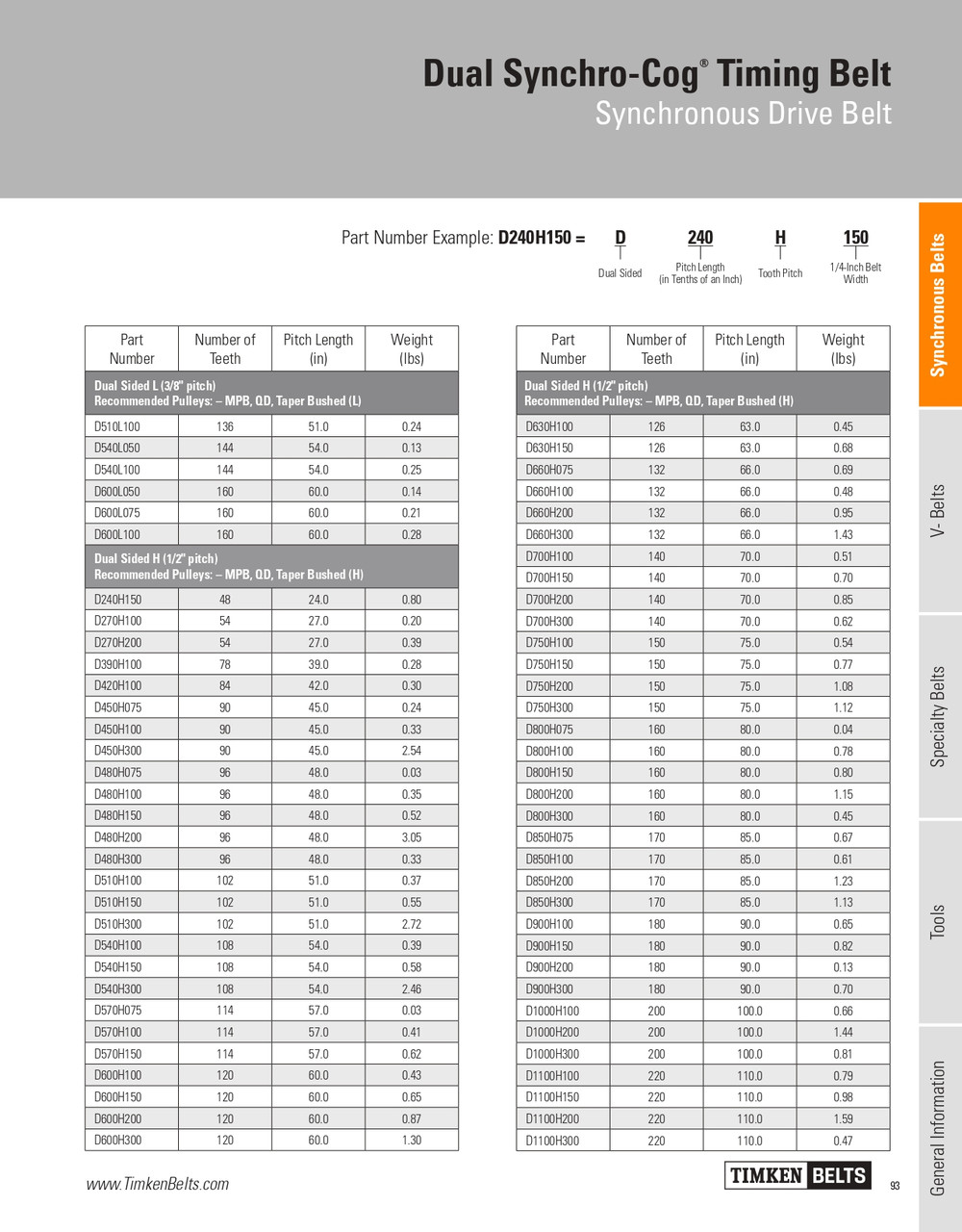

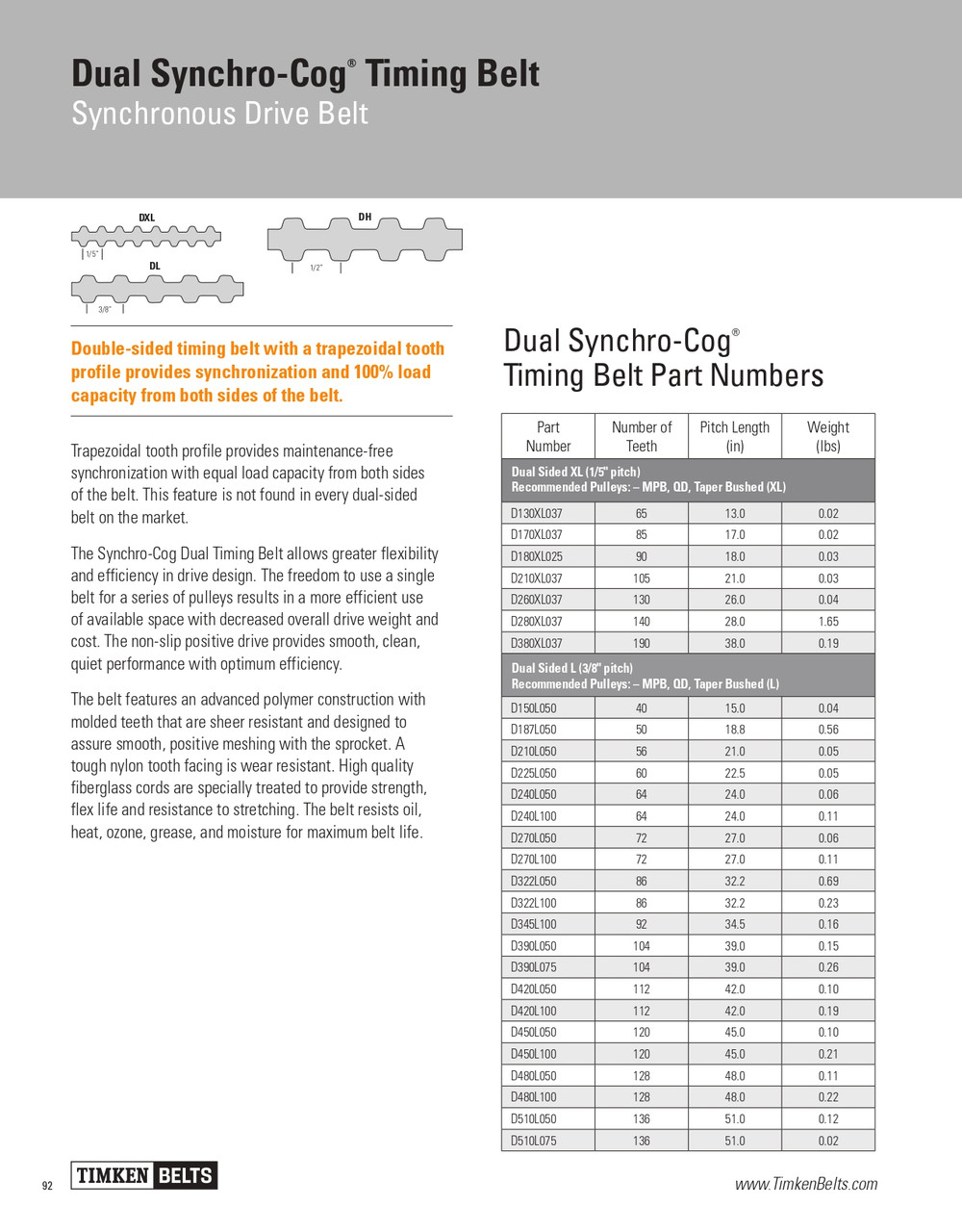

Timken Belts Catalog
