    Timken

    $6,477.32
    (No reviews yet) Write a Review
    SKU:
    TIM DI158-6-SPCR-BSE=5.5-OAL=3.122
    UPC:
    UPC 0697904946000
    Weight:
    5.46 LBS
    Series:
    DI158-6
    Spacer length between shaft ends:
    5.5-OAL=3.122"
    Coupling type:
    Disc coupler
    Adding to cart… category.add_cart_announcement

    Product Description

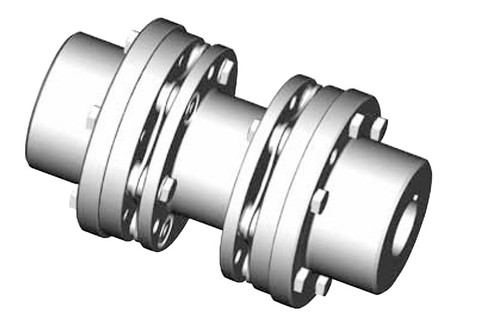

  • The DI Type coupling has a “Drop-In” spacer assembly that is assembled at the factory.
  • The coupling consists of two hubs and a spacer assembly comprising of the spacer, two unitized disc packs, and two guard rings.
  • The disc packs are bolted to the spacer and guard rings at the factory using the torque values recommended by Lovejoy for the disc pack bolts.
  • With the hubs mounted on the shafts, the entire disc pack assembly can be “Dropped In” place between the two hubs.
  • The hubs are piloted to ensure proper centering of the spacer assembly.
  • This piloting serves as an anti-flail feature and aids in the coupling's ability to meet the balance standards mandated by API.
  • This style coupling is designed to meet the balance and anti-flail requirements specified in API-610.
  • Oversized, or jumbo, hubs are available for use with the DI Type coupling to allow for larger bore sizes on most DI coupling sizes.
  • This allows for the use of smaller DI couplings in applications where a smaller size coupling can still accommodate the application torque.
  • Note: Spacers are INCLUDED in a sub-assembly, along with two disc pack kits and two guard rings. Unless ordered as a replacement part, spacers are

    adobepdficon.png Timken Lovejoy Master Catalog

    adobepdficon.png Drop-In Disc Coupling Installation Guide

    • Product Videos

    Custom Field

    Series DI158-6
    Spacer length between shaft ends 5.5-OAL=3.122"
    Coupling type Disc coupler
