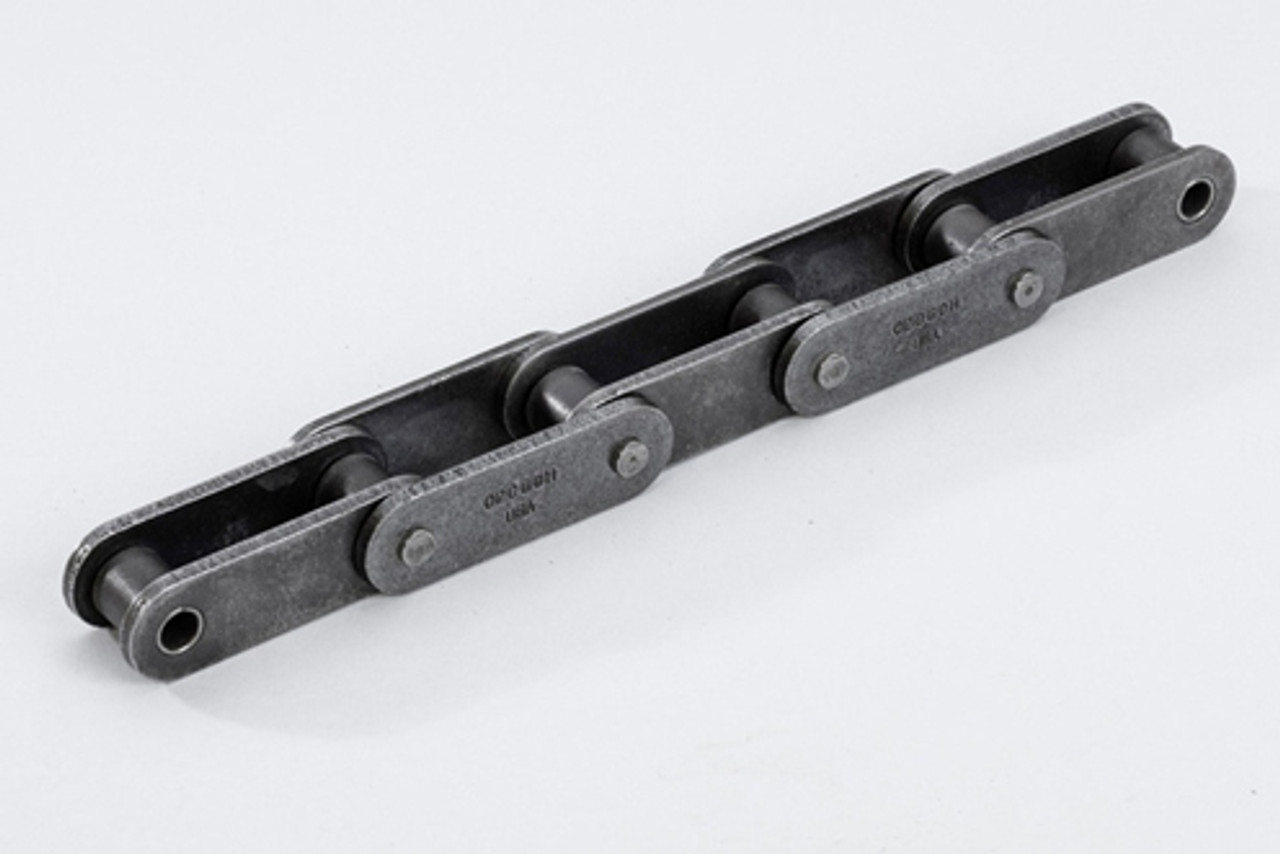

  • CHP® Extended Life Double Pitch Riveted Conveyor Chain - 10' Box DRV-C2040-1RCH-10FTNCA
  • CHP® Extended Life Double Pitch Riveted Conveyor Chain - 10' Box DRV-C2040-1RCH-10FTNCA
  • CHP® Extended Life Double Pitch Riveted Conveyor Chain - 10' Box DRV-C2040-1RCH-10FTNCA
  • CHP® Extended Life Double Pitch Riveted Conveyor Chain - 10' Box DRV-C2040-1RCH-10FTNCA
  • CHP® Extended Life Double Pitch Riveted Conveyor Chain - 10' Box DRV-C2040-1RCH-10FTNCA

    • CHP® Extended Life Double Pitch Riveted Conveyor Chain - 10' Box DRV-C2040-1RCH-10FTNCA

    Timken/Drives

    $299.07
    (No reviews yet) Write a Review
    SKU:
    DRV-C2040-1RCH-10FTNCA
    UPC:
    UPC 642051574293
    Weight:
    3.65 LBS
    Former "Drives" identification number:
    57429
    Chain classification:
    ANSI C2040
    Chain strands:
    1
    Continuous chain length:
    10'

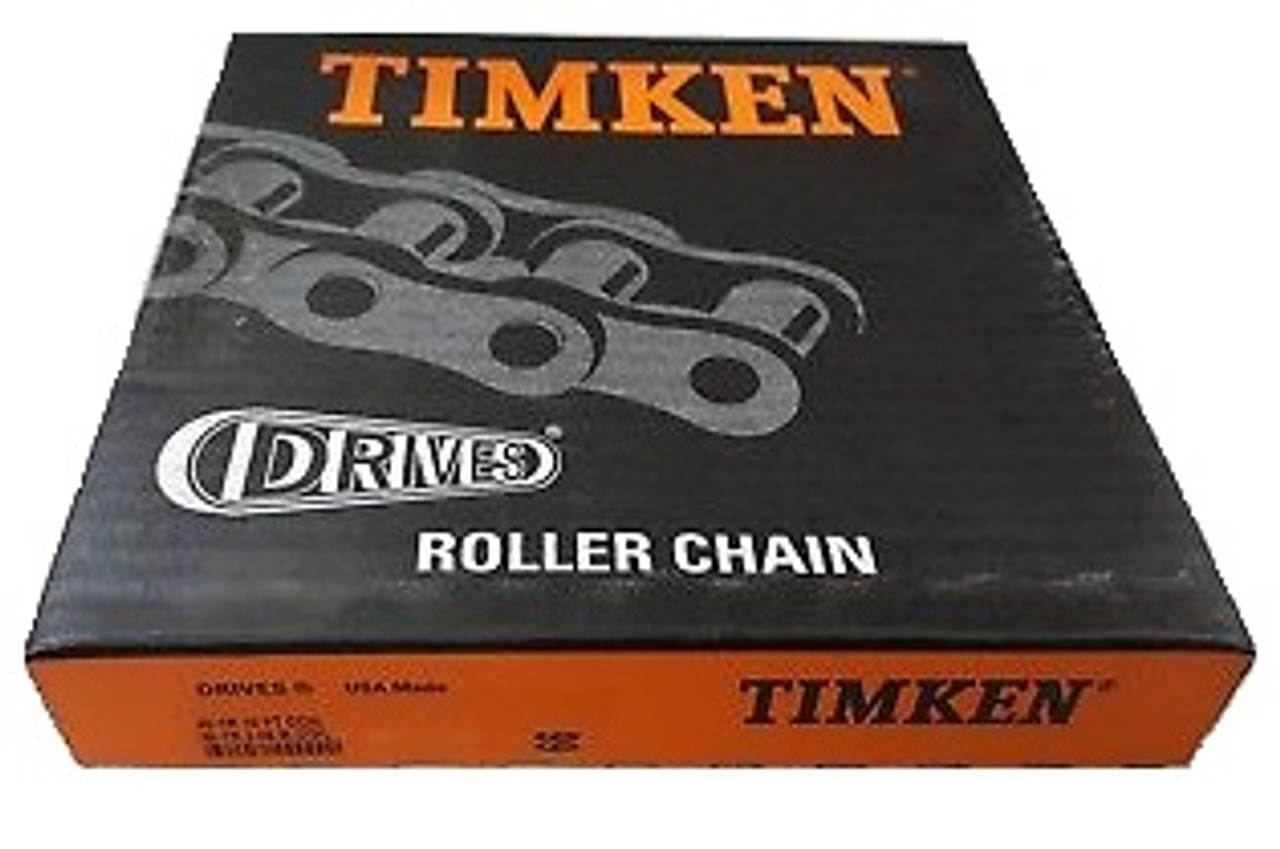

    Packaging:
    Boxed
    Link type:
    Riveted lengths
    Material:
    Carbon steel
    Adding to cart… category.add_cart_announcement

    Product Description

    EXTENDED LIFE CHP® SERIES CHAIN (CH)

  • Directly interchangeable with standard ANSI chain
  • Outstanding wear and shock-load performance, even at elevated temperatures
  • No reduction in working loads or operating speeds
  • Exceptional pin wear resistance reduces chain elongation and can increase wear life up to three times more than conventional premium chains
  • Full range of ANSI standard attachments available
  • Extended Life CHP offsets available on a made-to-order basis. Two pitch riveted offsets are required
  • Cotter-type connecting links standard in the box for Extended Life CHP® chain
  • 40 ~ 60 pitch is dual cotter key
  • 80 ~ 180 pitch have hardened Sheppards hook cotter pins
  • 200 ~ 240 pitch are equipped with coated T-pins
  • Available in single and double-strand sizes from 40 ~ 240
  • Riveted or cottered pins available depending on size
  • Corrosion resistant finishes available upon request for side bars, bushings and rollers
  • We suggest operating roller chain with periodic lubrication and maintenance. Various lubricants are available, including food grade and no-stain, depending on the application
  • Extended Life CHP also can be applied to carbon steel heavy series chain and other specialty chains including silver shield, stainless steel and engineered class chain. Please consult with your Drives representative
  • Chain is available with hot dip lubricants for optimal chain wear life as well as rust inhibitor for those customers who do not require hot dip lubricant

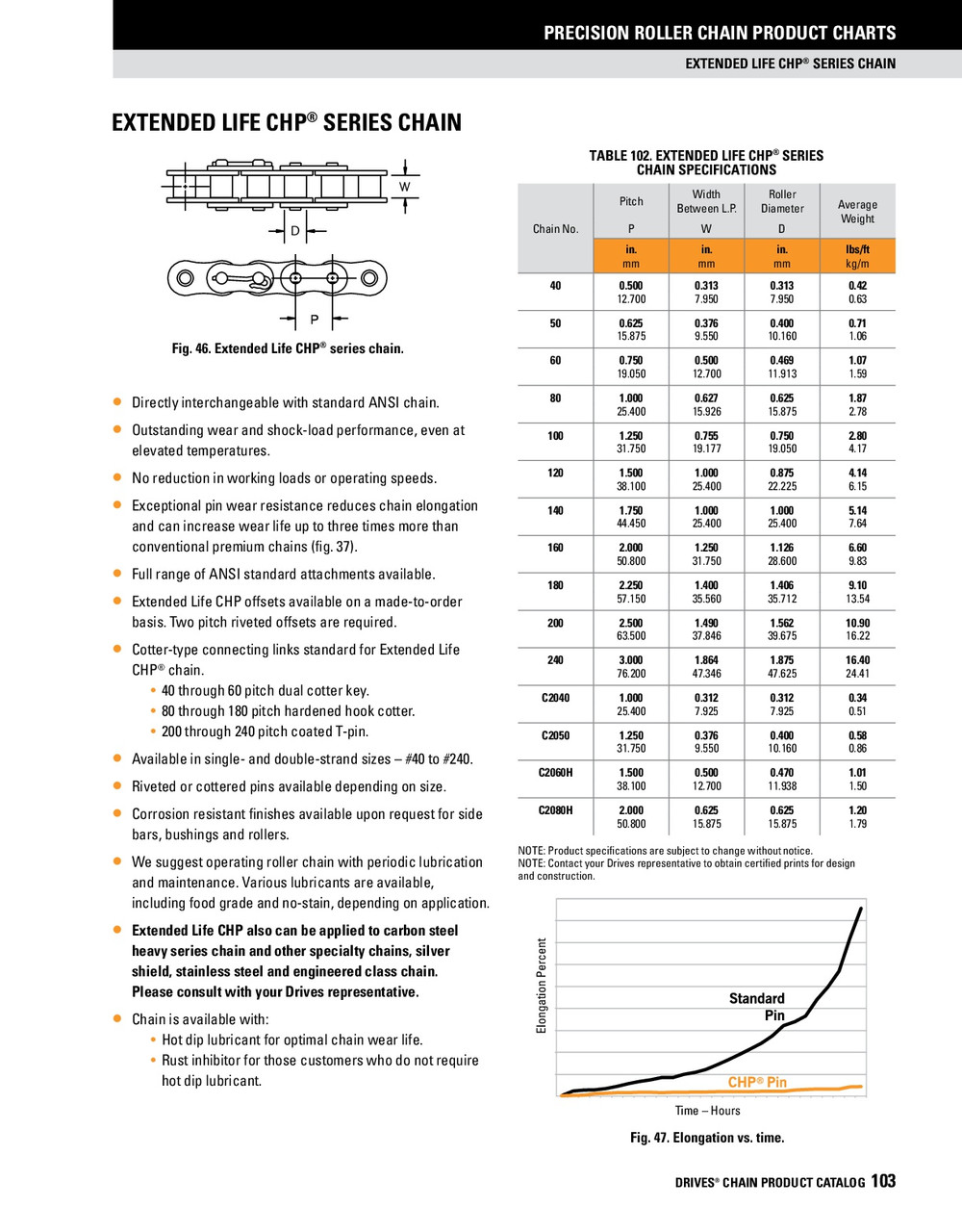

    adobepdficon.png Timken Drives General Catalog

    Follow this link to access Timken's "Drives" customized roller chain attachment software.

    • Product Videos

    Custom Field

    Former "Drives" identification number 57429
    Chain classification ANSI C2040
    Chain strands 1
    Continuous chain length 10'
    Packaging Boxed
    Link type Riveted lengths
    Material Carbon steel
