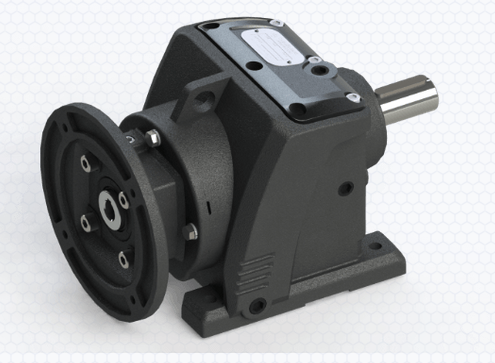

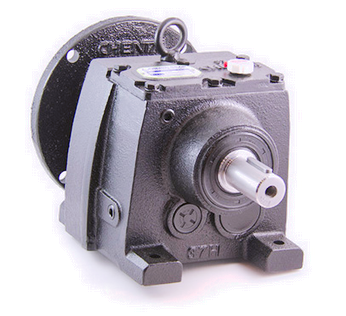

Chenta In-Line Helical Gear C-Flange Speed Reducer LHN 37-145TC

Overview
Reviews

Product Description

DESIGN CONCEPTS: The combination of standardization and modularization allows interchangeability with international leading brands, while keeping structure rigidity and compactness.

ENERGY EFFICIENCY: Leveraging the advantage of high accuracy of helical gears, the reducers perform at 90% efficiency with higher stability and lower noise level.

RATIOS COVERAGE: 1 to 3 stages of reduction provides a wide range of ratio accommodation from 1/1.3 to 1/27788.

LOADING CAPACITY: Available with power ranges from 1/4HP up to 150HP depending on different requirements and applications.

TENSILE STRENGTH: Pinion and gears are made with 20CrMo alloy steel plus carburizing heat treatment to enhance performance; the input pinion is equipped with double bearing support to provide stability at high speed.

COMPLETE SERIES: Vertical and horizontal mounting along various input mechanism ensure the products meet a wide range of applications.

INSTALLATION FLEXIBILITY: All models are designed for a choice of mounting position (M1 to M6) specified by customers.

APPEARANCE AESTHETICS: The products are designed with a modern exterior while maintaining high rigidity.

Power-Link Catalog

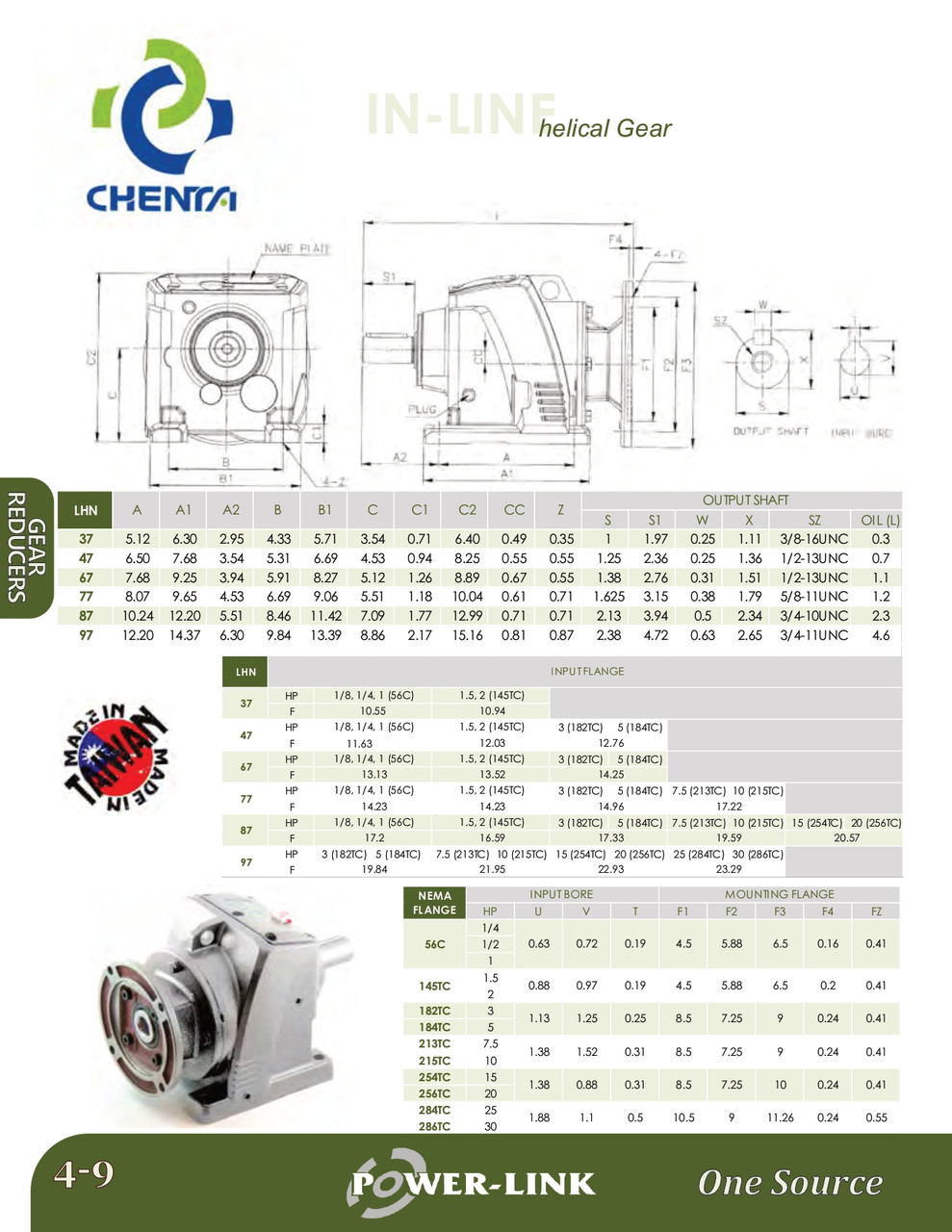

Chenta In-Line Speed Reducer Catalog - Metric

Chenta In-Line Speed Reducer Catalog - SAE

Product Videos

Custom Field

Reducer size 37

Chenta series LHN

PLI series LHN

NEMA input flange 145TC

Input shaft option A 7/8"

Output shaft 1"

Available ratio range 4:1 ~ 138.36

Country of origin Taiwan
