Chain Coupler Sprocket Half CB6018-1-3/8

Power-Link

$0.00

(No reviews yet) Write a Review

Chain couplers are one type among many coupler designs used to couple two drive shafts and allow for slight shaft misalignment.

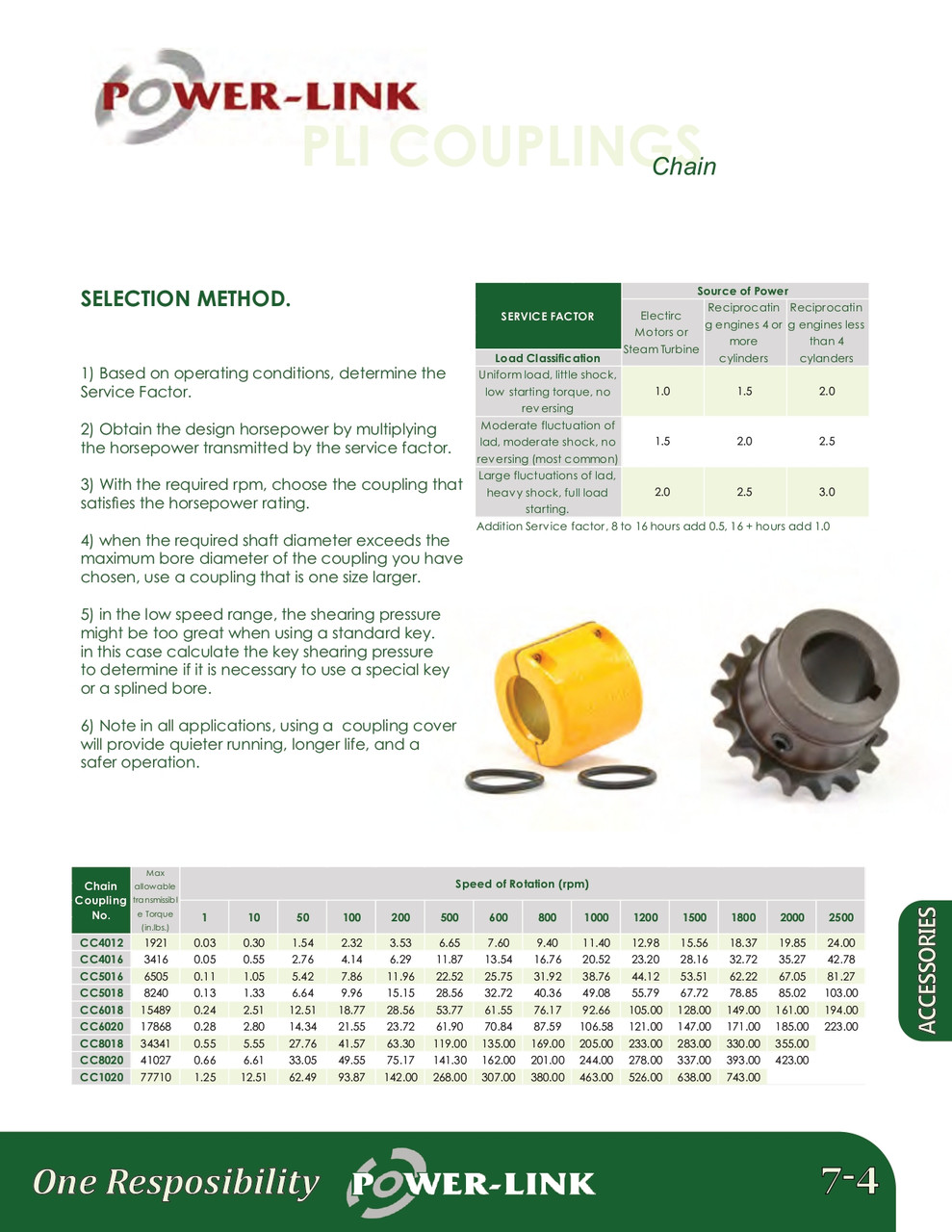

Based on operating conditions, determine the service factor.

Obtain the desired horsepower by multiplying the horsepower transmitted by the service factor.

When the required shaft diameter exceeds the MAXIMUM bore diameter of the coupling you have chosen, use a coupling size that is one size larger.

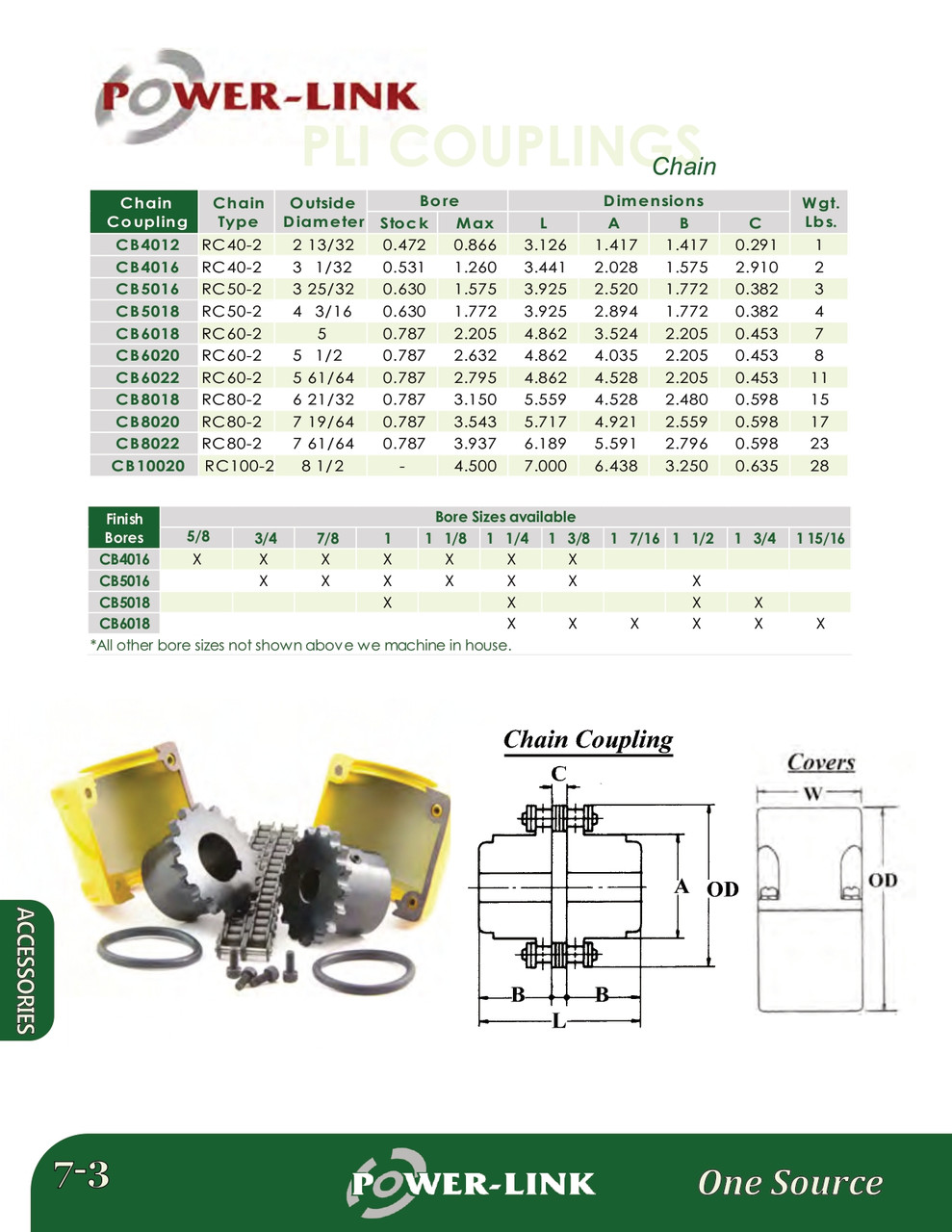

Power-Link Catalog

Chain type 60-2R

Coupler bore 1-3/8"

Maximum machinable bore 56mm

Coupler cover CV6018

Coupler chain CH6018
