Chain Coupler Sprocket Half CB10020

Power-Link

$0.00

(No reviews yet) Write a Review

Chain couplers are one type among many coupler designs used to couple two drive shafts and allow for slight shaft misalignment.

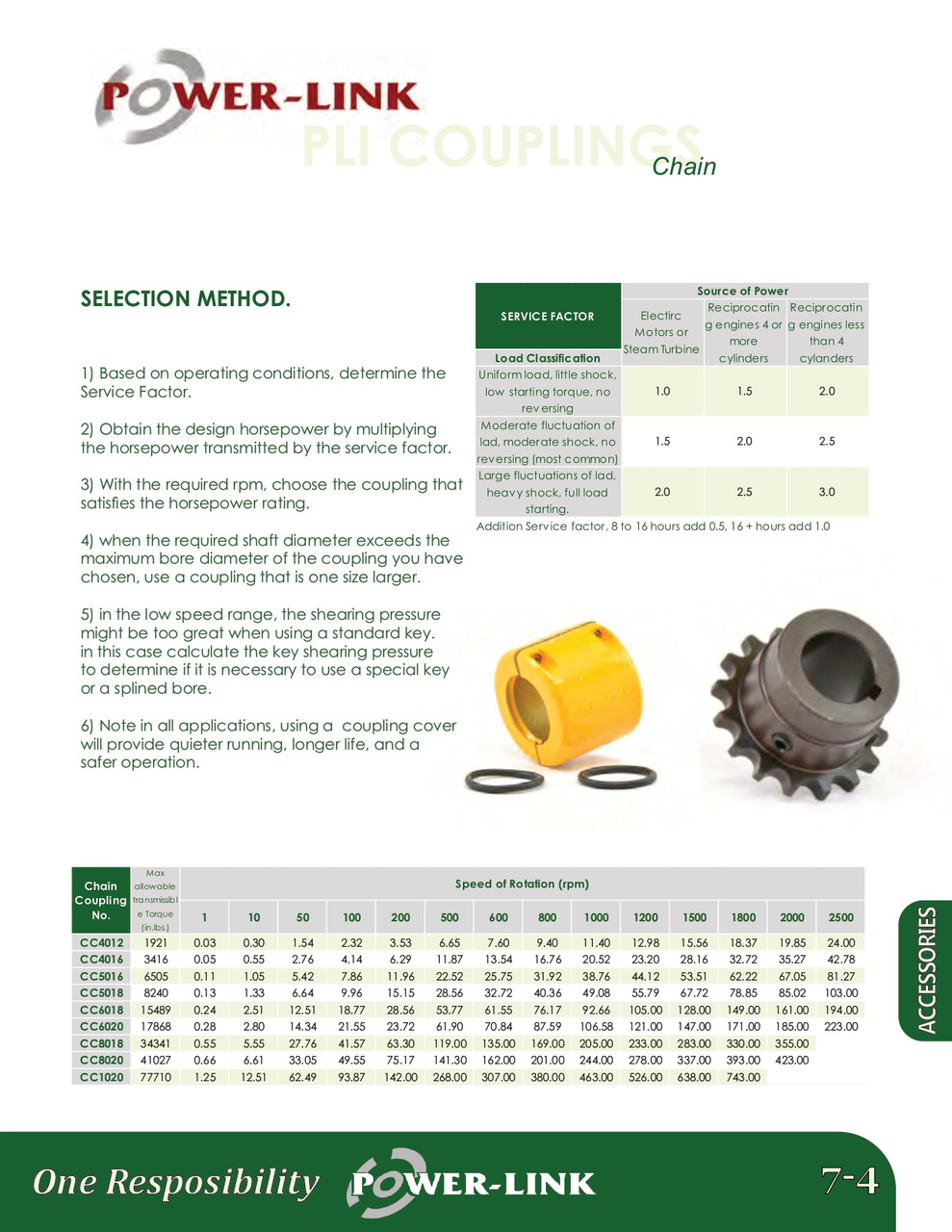

Based on operating conditions, determine the service factor.

Obtain the desired horsepower by multiplying the horsepower transmitted by the service factor.

When the required shaft diameter exceeds the MAXIMUM bore diameter of the coupling you have chosen, use a coupling size that is one size larger.

Power-Link Catalog

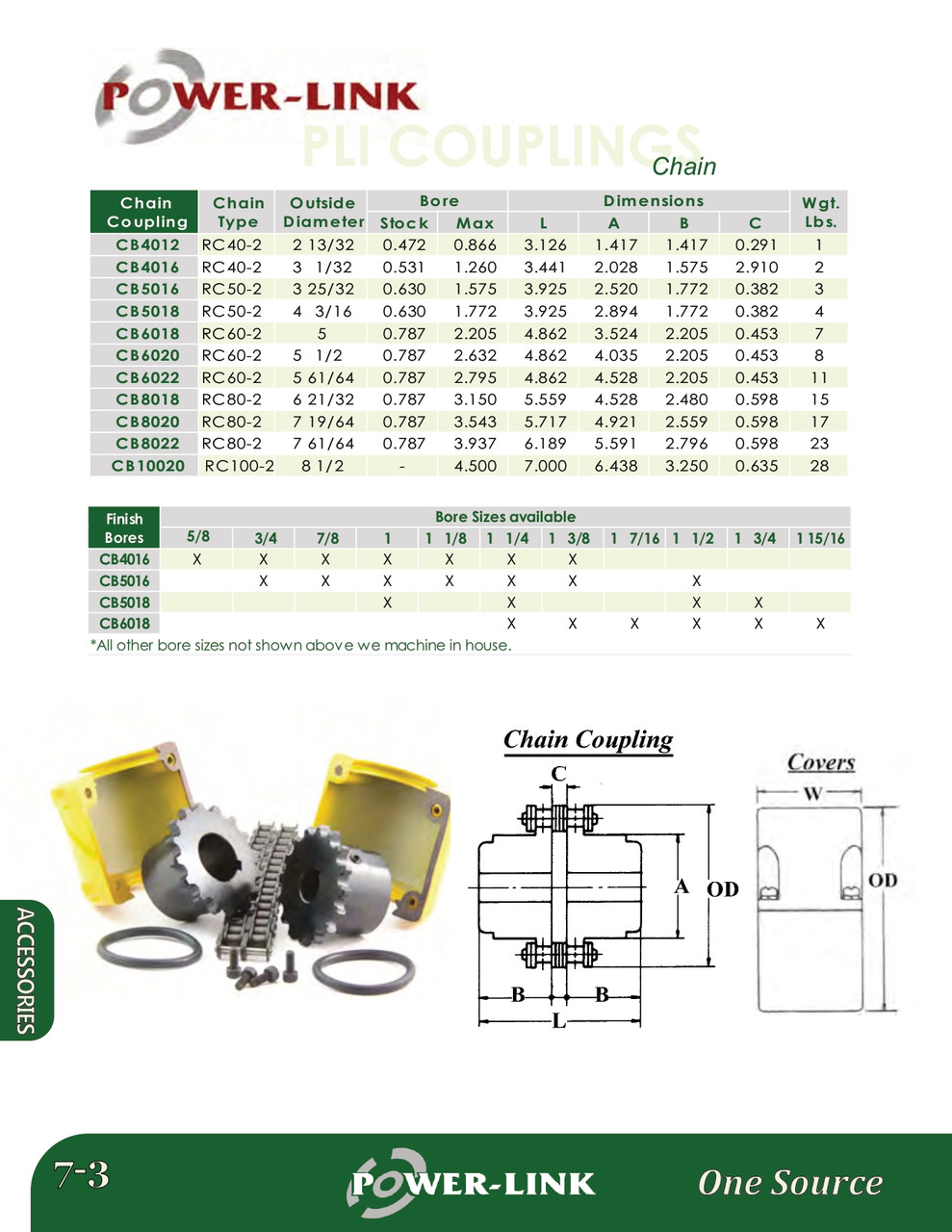

Chain type 100-2R

Coupler bore Rough stock bore

Maximum machinable bore 114mm

Coupler cover CV10020

Coupler chain CH10020
