  • "Browning®" Split Taper Lock Bushing Double Single Tooth Sprocket DS50P19
  • "Browning®" Split Taper Lock Bushing Double Single Tooth Sprocket DS50P19
  • "Browning®" Split Taper Lock Bushing Double Single Tooth Sprocket DS50P19
  • "Browning®" Split Taper Lock Bushing Double Single Tooth Sprocket DS50P19

    • "Browning®" Split Taper Lock Bushing Double Single Tooth Sprocket DS50P19

    Ringball

    $0.00
    (No reviews yet) Write a Review
    SKU:
    RBL DS50P19
    Weight:
    2.80 LBS
    Hardened tooth:
    No
    Bushing series:
    P1
    Tooth count:
    19
    Chain series:
    50
    Fits chain:
    50-1R
    Material:
    Carbon Steel
    Finish:
    Black oxide
    Standards:
    ANSI/ASME
    Call for pricing:
    Yes

    Product Description

  • "Browning®" profile sheaves and sprockets were originally created by the Browning® Manufacturing Company, currently owned by Regal Rexnord, which utilize their own taper lock bushing designs which differ from the generic "QD" design.
  • This special sprocket is designed to accept two single strand roller chains where the chains travel in opposite directions (i.e. powered conveyor line with multiple rollers).
  • The design, which includes a split through the taper and flange, allows for faster and easier fitting onto a shaft and simple removal using jackscrews.
  • Taper lock sprockets can accommodate different shaft diameters simply by changing the accompanying taper lock bushing, eliminating the need to purchase a new sprocket for every bore size.
  • When installed, the tapered bushing compresses onto the shaft, ensuring a tight and firm grip and improved centering compared to other systems.

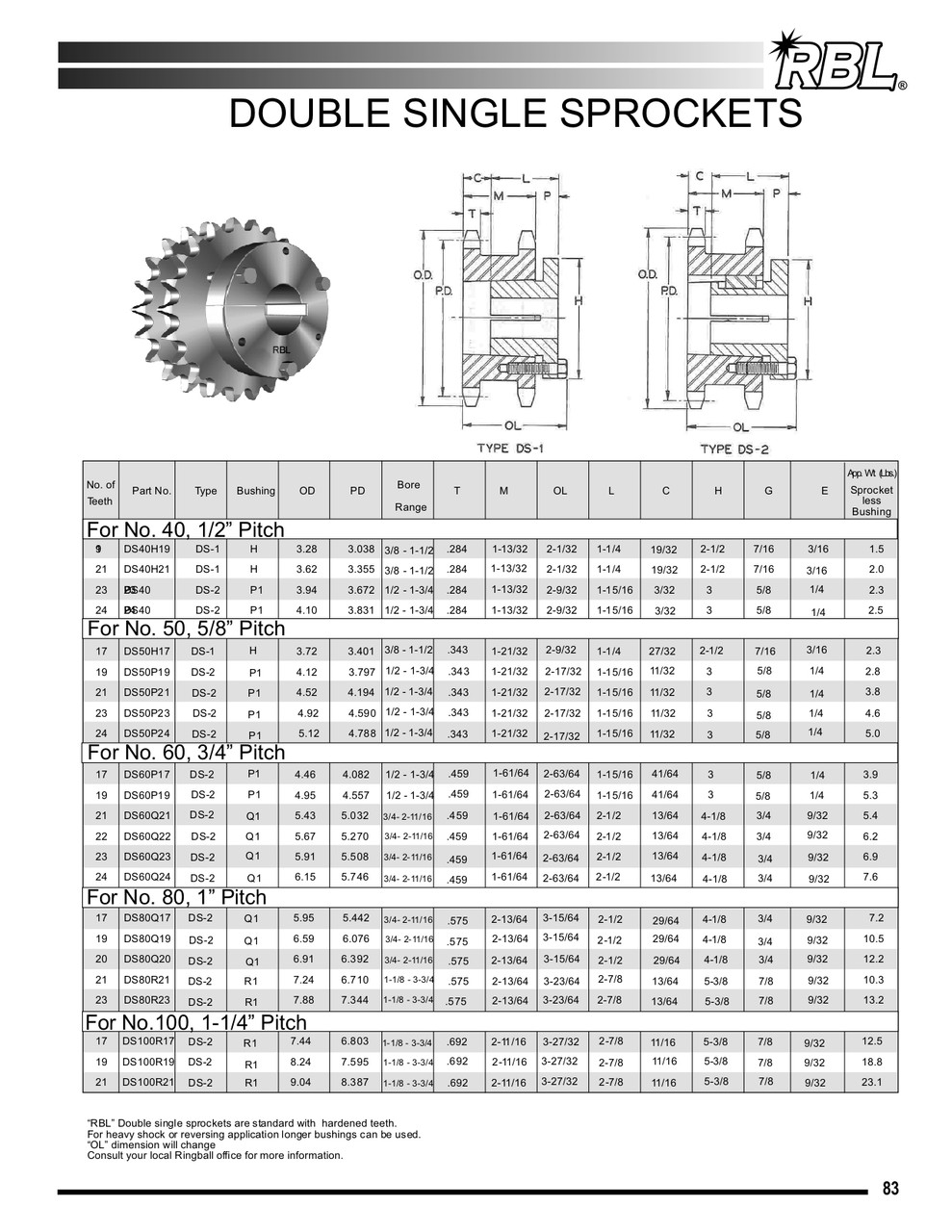

    adobepdficon.pngRingball Sprocket Catalog



    • Product Videos

    Custom Field

    Hardened tooth No
    Bushing series P1
    Tooth count 19
    Chain series 50
    Fits chain 50-1R
    Material Carbon Steel
    Finish Black oxide
    Standards ANSI/ASME
    Call for pricing Yes
