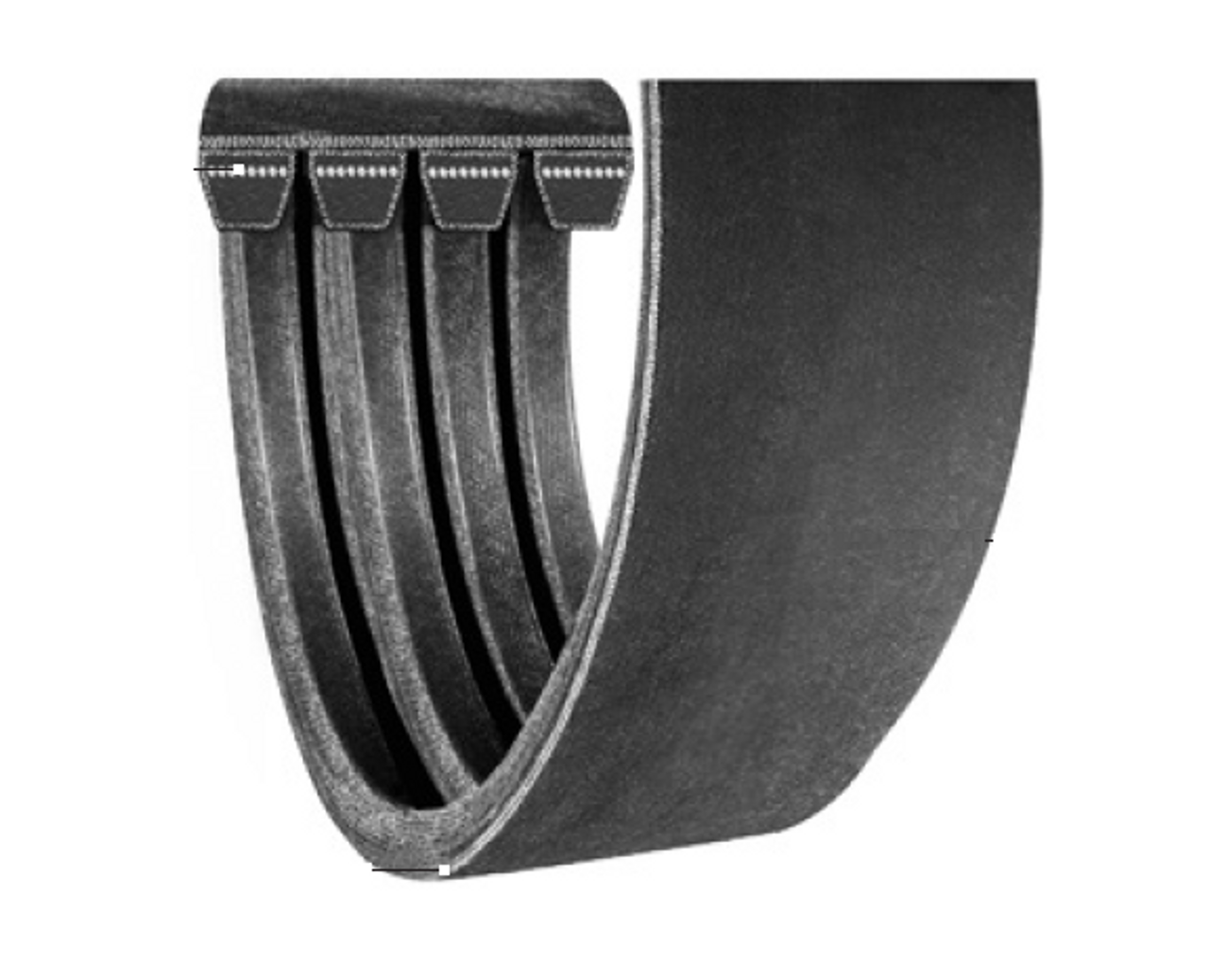

  • Aramax® Super Power Wedge® 5 Rib Banded V-Belt R8VK3750-5
  • Aramax® Super Power Wedge® 5 Rib Banded V-Belt R8VK3750-5
  • Aramax® Super Power Wedge® 5 Rib Banded V-Belt R8VK3750-5
  • Aramax® Super Power Wedge® 5 Rib Banded V-Belt R8VK3750-5

    • Aramax® Super Power Wedge® 5 Rib Banded V-Belt R8VK3750-5

    Timken

    $7,407.22
    (No reviews yet) Write a Review
    SKU:
    TIM R8VK3750-5
    UPC:
    UPC 785201569258
    Weight:
    0.00 LBS
    Cross section:
    8V
    Ribs:
    5
    Cord material:
    Aramid
    HTS code:
    4010.39.1000
    Adding to cart… category.add_cart_announcement

    Product Description

  • Aramax® Super Power-Wedge® bands are ideally suited for oil field equipment, rock and quarry applications, forestry industry applications and heavy construction machinery.
  • Aramid cord provides maximum protection against belt breakage due to shock loads.
  • When compared with 5V and 8V belts, the horsepower capacity per rib is significantly higher and provides substantial cost savings in belts and metal.
  • Overhung load is also reduced and can extend equipment service life.
  • Because of the high horsepower loads involved, standard 5V and 8V cast iron Q-D® pulleys typically DO NOT have sufficient horsepower capacity to operate with the Aramax® Super Power-Wedge® band at the belt's rated horsepower.
  • As a result, special pulleys are frequently required.
  • Due to the unique nature of these "super high performance" banded belts, no drive design literature is available.
  • Use drive engineer to run an existing drive analysis.
  • When designing a new drive, we suggest working with a Timken belts application engineer.
  • Note: R5VK has a brown clutching cover and is not static dissipating, R8VK has a black cover and is static dissipating.
  • When these R5VK and R8VK belts are used as a matched set, all belts in the set must have the same sag number.
  • These high modulus aramid cord belts require closer matching than standard R5V and R8V belts in order to tension properly as a set.
  • Maximum number of ribs available is 12.

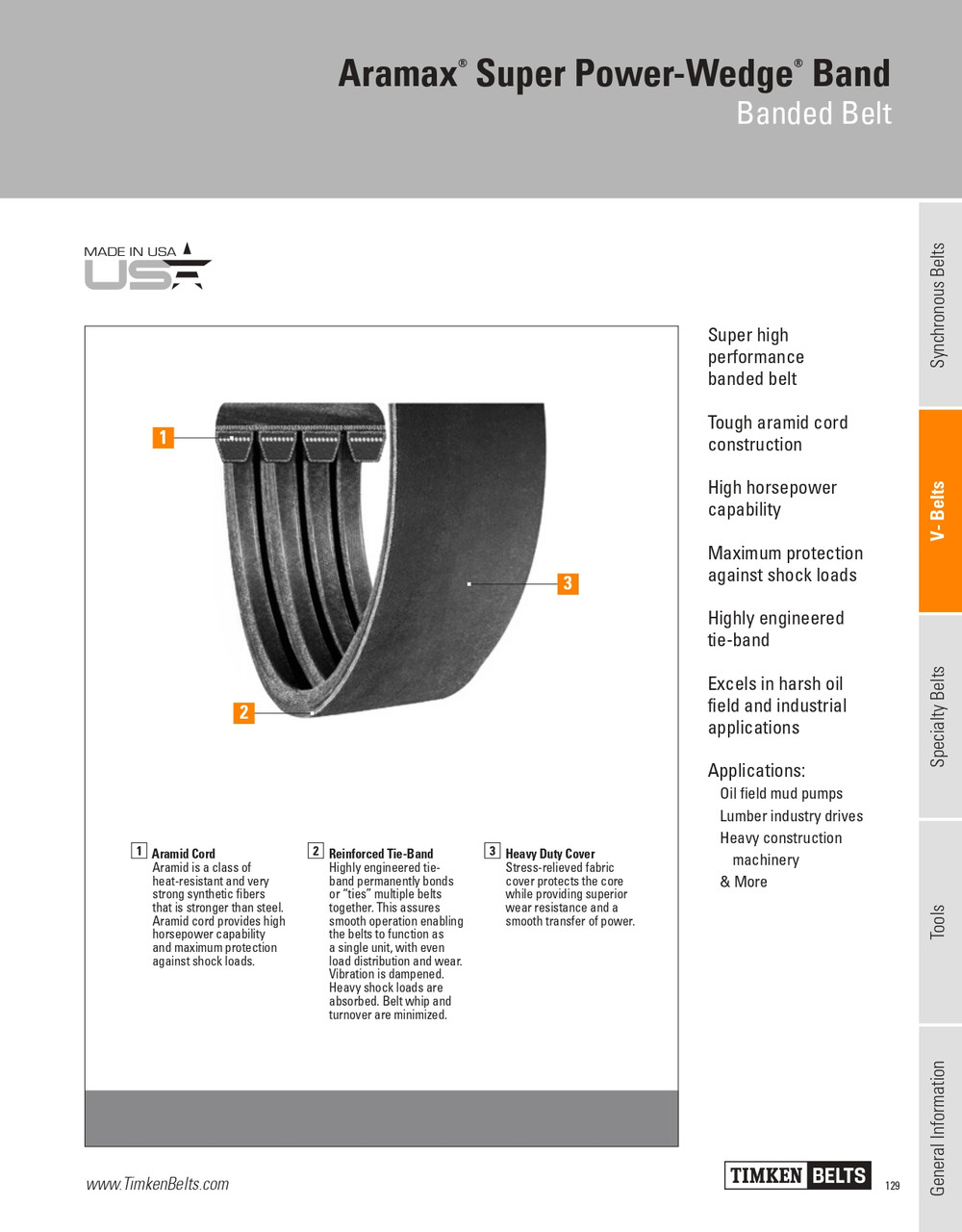

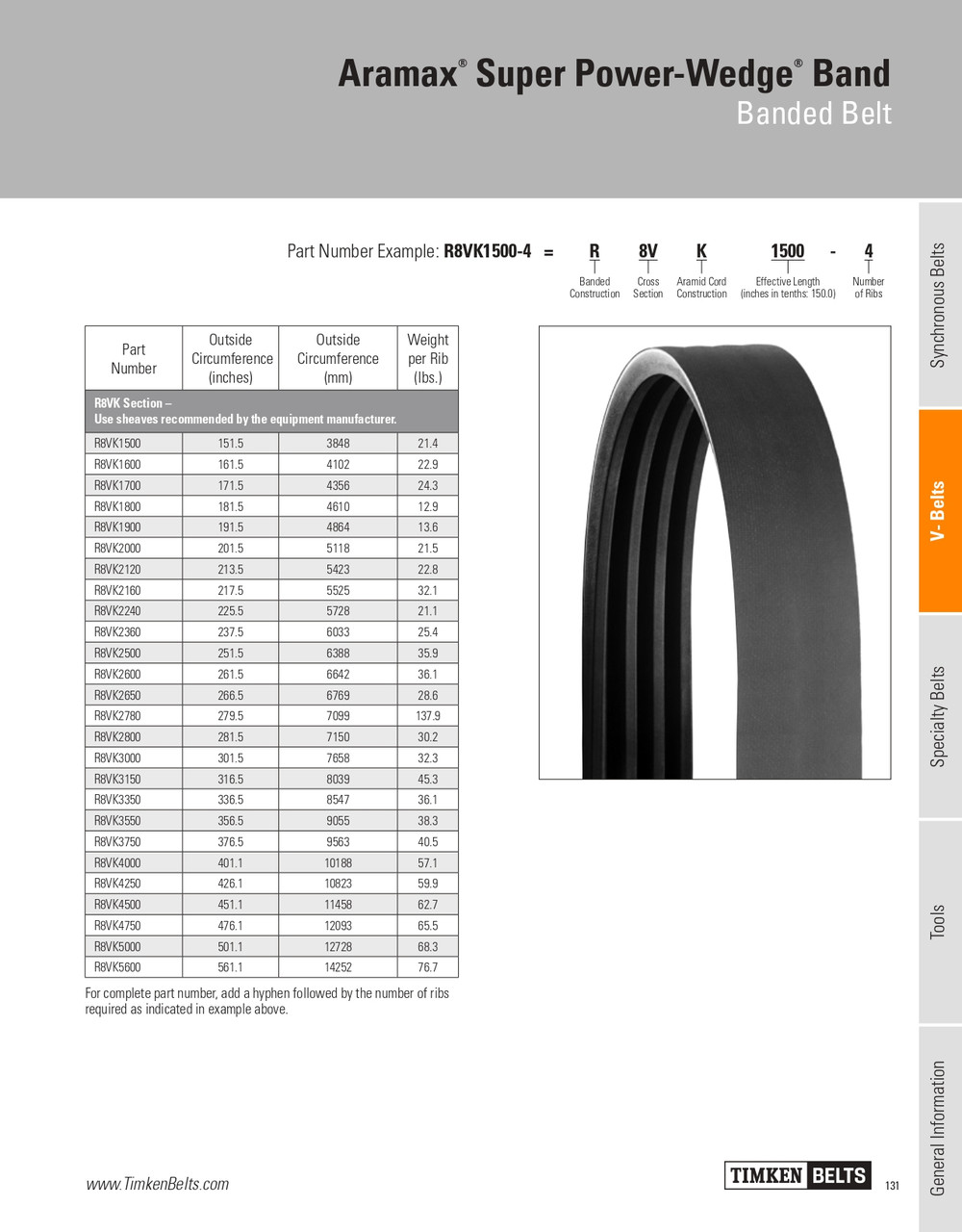

    adobepdficon.png Timken Belts Catalog

    Please use this link to use the Timken belt interchange/cross-reference TIMKEN BELTS INTERCHANGE

    • Product Videos

    Custom Field

    Cross section 8V
    Ribs 5
    Cord material Aramid
    HTS code 4010.39.1000
