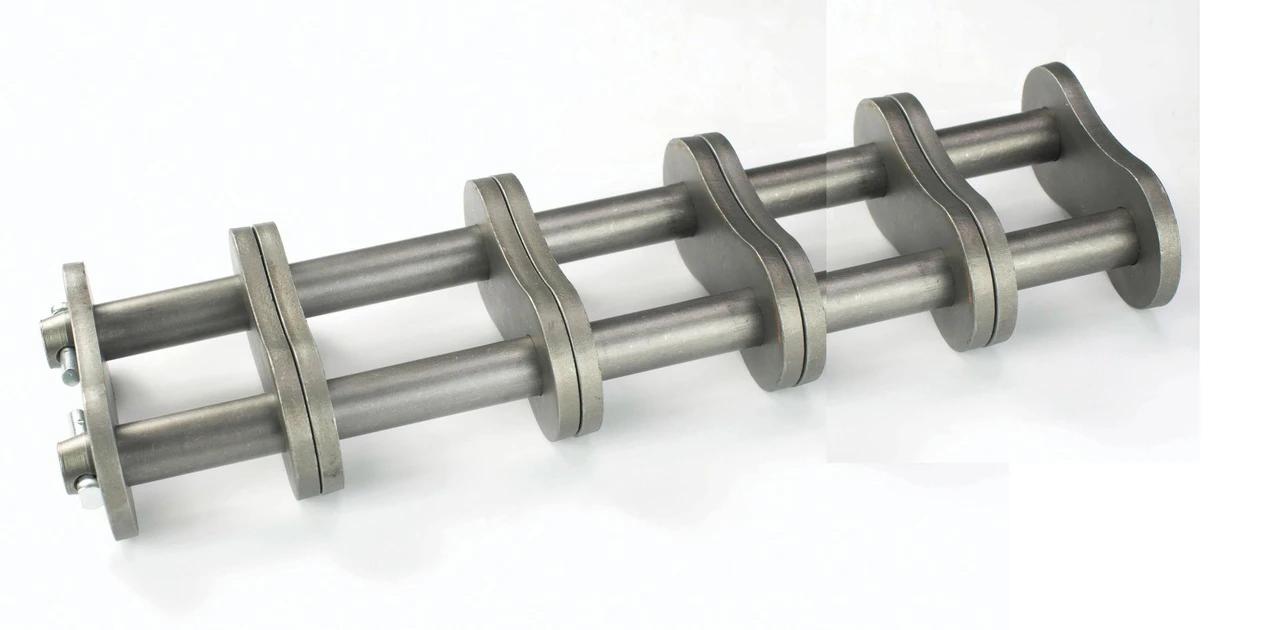

  • API Oil Field Roller Chain Cottered Connector Link w/Hardened Pins - Five Row API-264Z-5 CT CO LINK
  • API Oil Field Roller Chain Cottered Connector Link w/Hardened Pins - Five Row API-264Z-5 CT CO LINK
  • API Oil Field Roller Chain Cottered Connector Link w/Hardened Pins - Five Row API-264Z-5 CT CO LINK
  • API Oil Field Roller Chain Cottered Connector Link w/Hardened Pins - Five Row API-264Z-5 CT CO LINK
  • API Oil Field Roller Chain Cottered Connector Link w/Hardened Pins - Five Row API-264Z-5 CT CO LINK
  • API Oil Field Roller Chain Cottered Connector Link w/Hardened Pins - Five Row API-264Z-5 CT CO LINK

    • API Oil Field Roller Chain Cottered Connector Link w/Hardened Pins - Five Row API-264Z-5 CT CO LINK

    Timken/Drives

    $723.95
    (No reviews yet) Write a Review
    SKU:
    API-264Z-5 CT CO LINK
    UPC:
    UPC 642051185499
    Weight:
    13.47 LBS
    Former "Drives" identification number:
    18549
    Chain classification:
    API 264Z
    Chain strands:
    5
    Quantity:
    1 link
    Link type:
    T-Pin connecting link
    Material:
    Carbon steel
    Adding to cart… category.add_cart_announcement

    Product Description

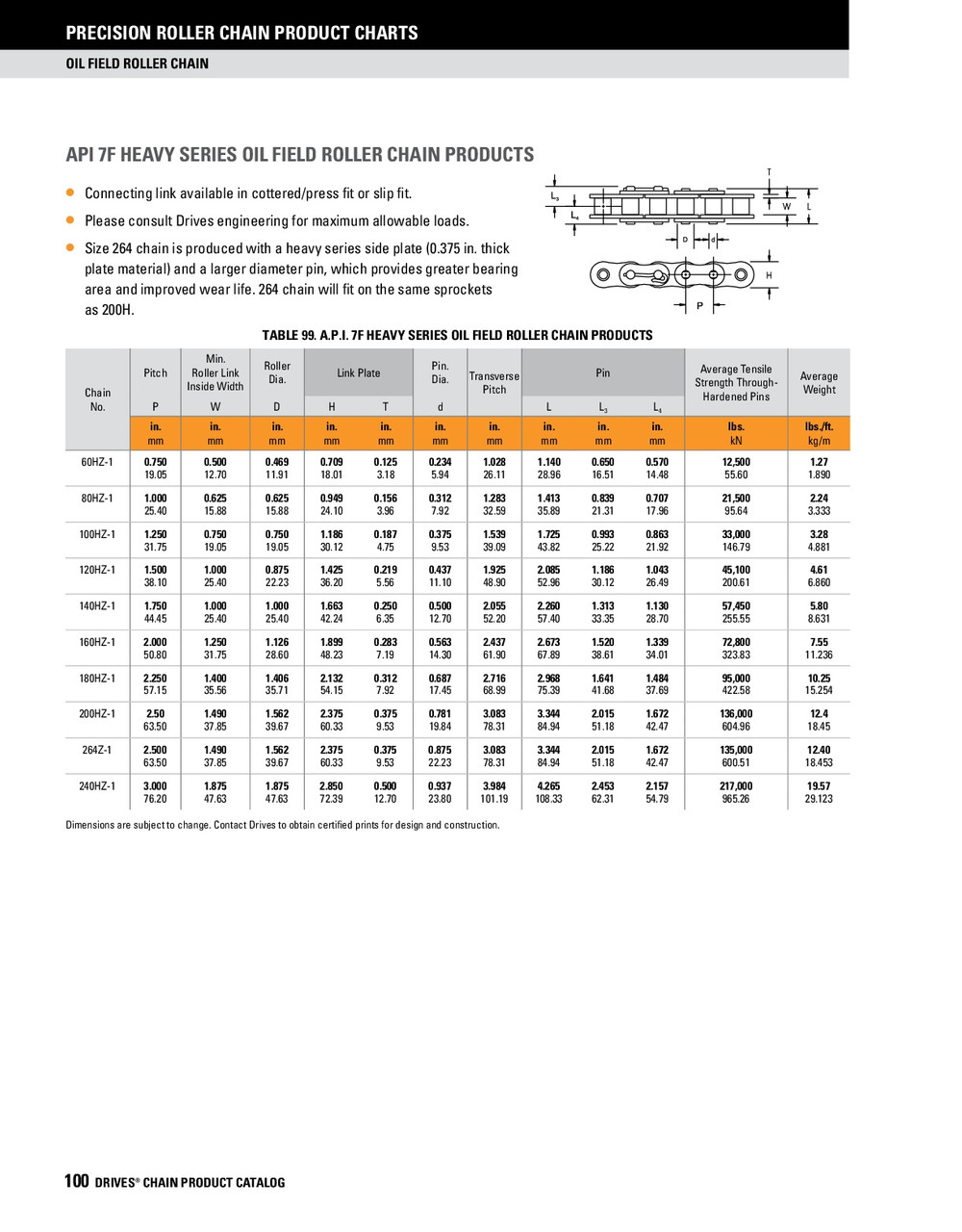

    OIL FIELD ROLLER CHAIN (A.P.I.)

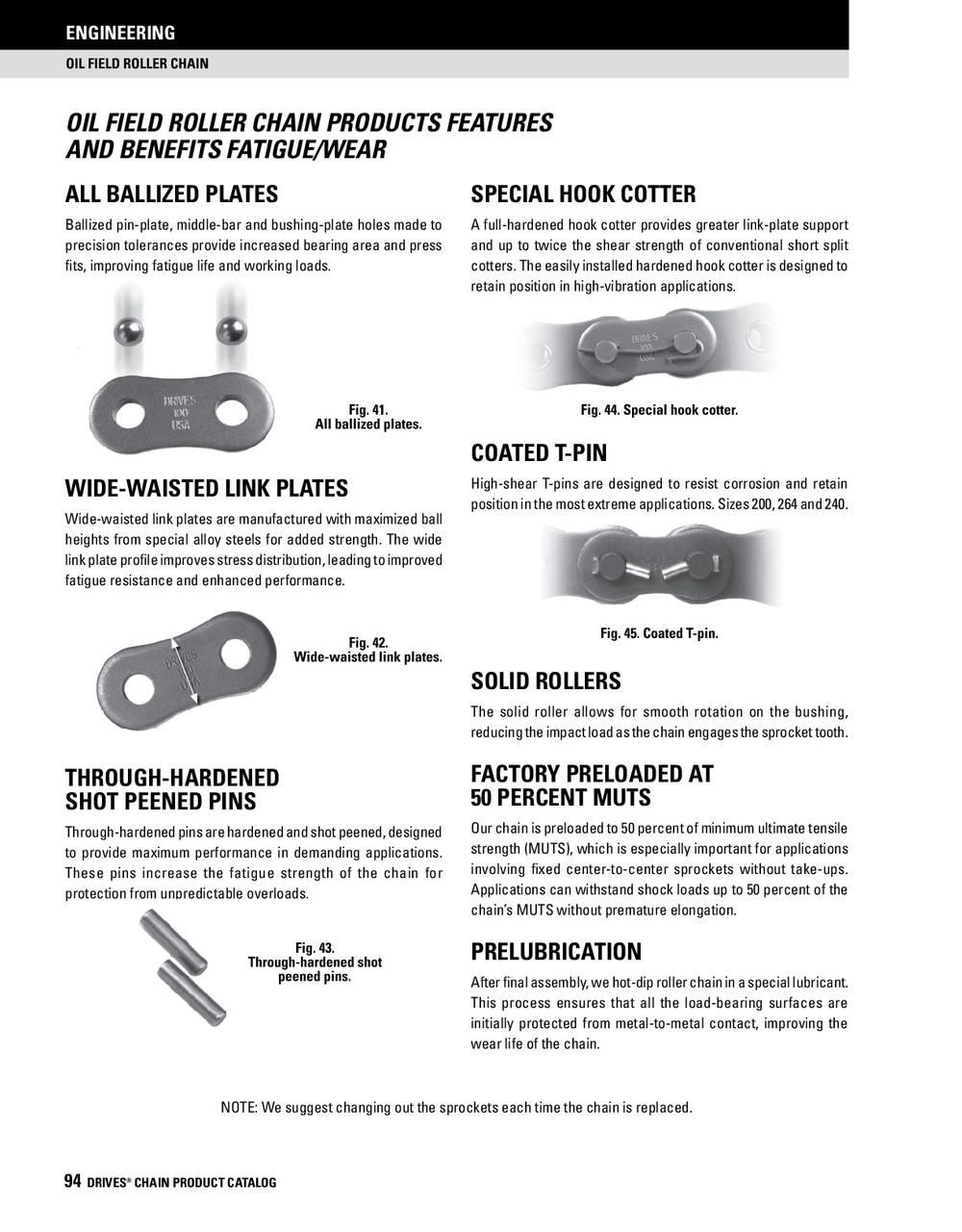

  • Ballized pin-plate, middle-bar and bushing-plate holes made to precision tolerances provide increased bearing area and press fits, improving fatigue life and working loads
  • Wide-waisted link plates are manufactured with maximized ball heights from special alloy steels for added strength. The wide link plate profile improves stress distribution, leading to improved fatigue resistance and enhanced performance
  • A hardened Sheppards hook cotter pin is deployed on chain sizes 60 ~ 180 and provides greater link-plate support and up to twice the shear strength of conventional short split cotters. The easily installed hardened hook cotter pin is designed to retain its position in high-vibration applications without coming loose
  • T-pin cotters used on sizes 200, 264, and 240 oil field chain. High-shear T-pins are designed to resist corrosion and retain position in the most extreme applications
  • The solid roller allows for smooth rotation on the bushing, reducing the impact load as the chain engages the sprocket tooth
  • Our chain is preloaded to 50 percent of minimum ultimate tensile strength (MUTS), which is especially important for applications involving fixed center-to-center sprockets without take-ups. Applications can withstand shock loads up to 50 percent of the chain’s MUTS without premature elongation
  • After final assembly, Timken hot-dips the roller chain in a special lubricant. This process ensures that all the load-bearing surfaces are initially protected from metal-to-metal contact, improving the wear life of the chain
  • Cut-to-length chain available
  • Other corrosion resistant finishes for components are available for the Oil Field chain upon request
  • Offsets are NOT suggested for Oil Field chains
  • Size 264 chain provides greater tensile strength/working load utilizing larger diameter pin and replaces 200H chain

    Z RIVETED & COTTERED SERIES CHAIN
  • Z series chain has the same dimensions as ANSI-standard series chain
  • The "Z" designates through-hardened pins that are utilized for higher working load capacities and additional resistance to fatigue in heavy load applications
  • Size 264 chain is produced with a heavy series side plate (0.375 in. thick plate material) and a larger diameter pin, which provides greater bearing area and improved wear life. 264 chain will fit on the same sprockets as 200H

    CONNECTING LINKS
  • Standard connecting links are used when roller chain is operating under normal conditions
  • Spring-clip style connecting links are used for sizes 60H and smaller denoted by "S/C CO LINK"
  • Sizes 80 ~ 180H typically use a single special hardened "Sheppards" hook cotter pin denoted by "CT CO LINK SH"
  • Traditionl dual split cottered key connector links are also available in select chain sizes denoted by "SPL END CK"
  • Coated T-pins are used on chain sizes 200, 240 and 264 denoted by "CT CO LINK"
  • For severe applications, press fit connecting links are suggested denoted by "PF CO LINK"

    adobepdficon.png Timken Drives General Catalog

    Follow this link to access Timken's "Drives" customized roller chain attachment software.

    • Product Videos

    Custom Field

    Former "Drives" identification number 18549
    Chain classification API 264Z
    Chain strands 5
    Quantity 1 link
    Link type T-Pin connecting link
    Material Carbon steel
