  • API Oil Field Riveted Roller Chain - 50' Reel API-40-1R-50FT
  • API Oil Field Riveted Roller Chain - 50' Reel API-40-1R-50FT
  • API Oil Field Riveted Roller Chain - 50' Reel API-40-1R-50FT
  • API Oil Field Riveted Roller Chain - 50' Reel API-40-1R-50FT

    • API Oil Field Riveted Roller Chain - 50' Reel API-40-1R-50FT

    Timken/Drives

    $1,054.00
    (No reviews yet) Write a Review
    SKU:
    API-40-1R-50FT
    UPC:
    UPC 642051751243
    Weight:
    4.66 LBS
    Former "Drives" identification number:
    75124
    Chain classification:
    API 40
    Chain strands:
    1
    Continuous chain length:
    50'
    Packaging:
    Reinforced reel
    Link type:
    Riveted lengths
    Features:
    Chain ships with spring clip connecting link
    Material:
    Carbon steel
    Adding to cart… category.add_cart_announcement

    Product Description

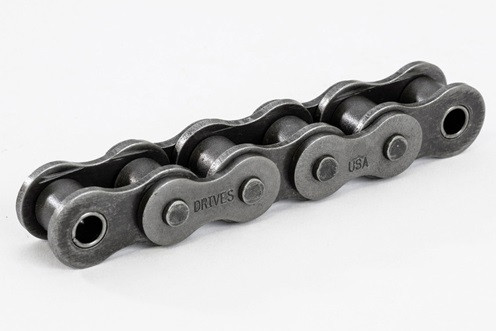

    OIL FIELD ROLLER CHAIN (A.P.I.)

  • Ballized pin-plate, middle-bar and bushing-plate holes made to precision tolerances provide increased bearing area and press fits, improving fatigue life and working loads
  • Wide-waisted link plates are manufactured with maximized ball heights from special alloy steels for added strength. The wide link plate profile improves stress distribution, leading to improved fatigue resistance and enhanced performance
  • A hardened Sheppards hook cotter pin is deployed on chain sizes 60 ~ 180 and provides greater link-plate support and up to twice the shear strength of conventional short split cotters. The easily installed hardened hook cotter pin is designed to retain its position in high-vibration applications without coming loose
  • T-pin cotters used on sizes 200, 264, and 240 oil field chain. High-shear T-pins are designed to resist corrosion and retain position in the most extreme applications
  • The solid roller allows for smooth rotation on the bushing, reducing the impact load as the chain engages the sprocket tooth
  • Our chain is preloaded to 50 percent of minimum ultimate tensile strength (MUTS), which is especially important for applications involving fixed center-to-center sprockets without take-ups. Applications can withstand shock loads up to 50 percent of the chain’s MUTS without premature elongation
  • After final assembly, Timken hot-dips the roller chain in a special lubricant. This process ensures that all the load-bearing surfaces are initially protected from metal-to-metal contact, improving the wear life of the chain
  • Cut-to-length chain available
  • Other corrosion resistant finishes for components are available for the Oil Field chain upon request
  • Offsets are NOT suggested for Oil Field chains
  • Size 264 chain provides greater tensile strength/working load utilizing larger diameter pin and replaces 200H chain

    adobepdficon.png Timken Drives General Catalog

    Follow this link to access Timken's "Drives" customized roller chain attachment software.

    • Product Videos

    Custom Field

    Former "Drives" identification number 75124
    Chain classification API 40
    Chain strands 1
    Continuous chain length 50'
    Packaging Reinforced reel
    Link type Riveted lengths
    Features Chain ships with spring clip connecting link
    Material Carbon steel
