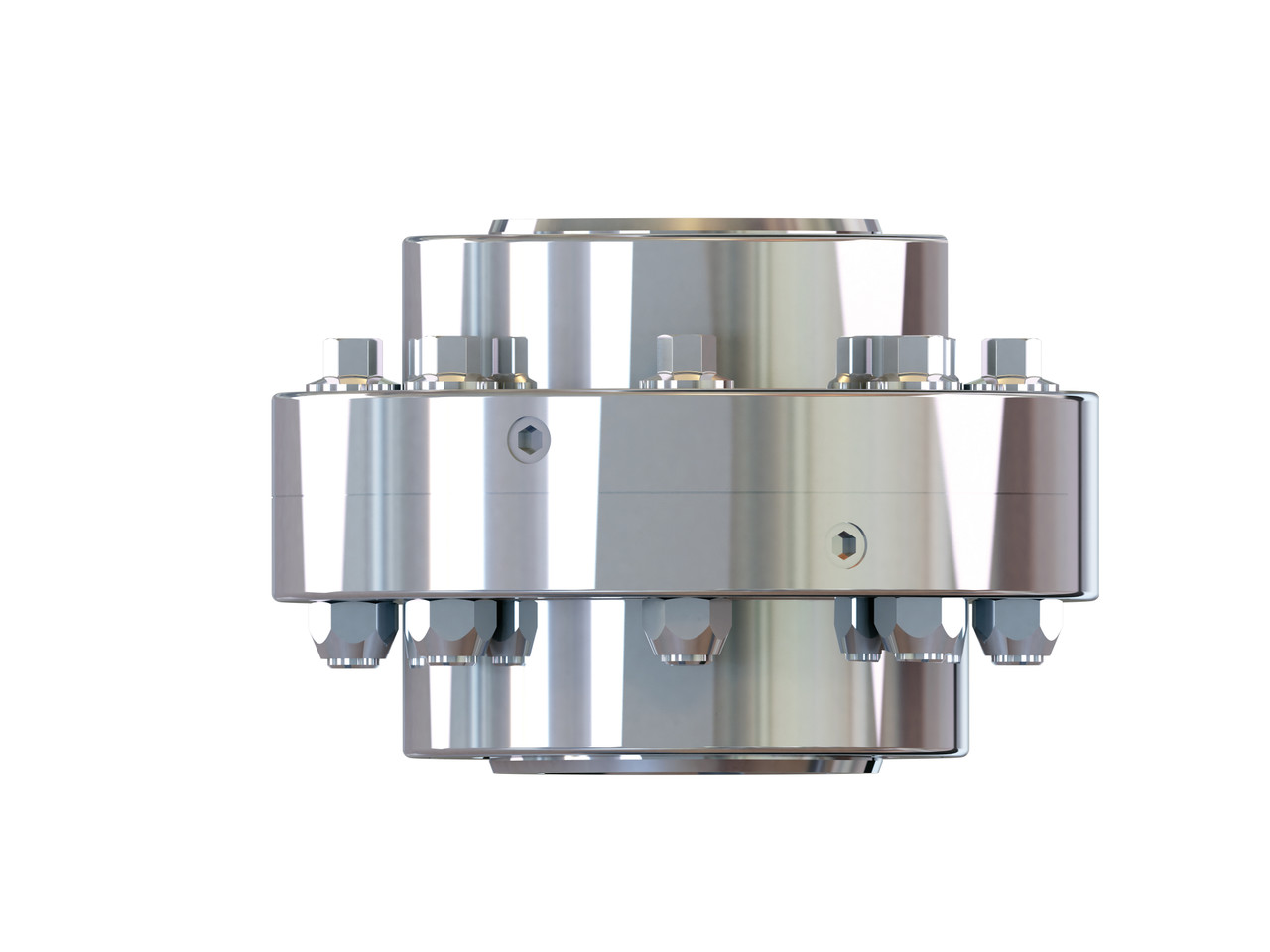

90mm Shaft Lovejoy® Series FXL-3.5 HercuFlex® Gear Coupling Hub FXL-3.5-HUB-90MMP7-25X5.4MMKW

Overview
Reviews

Product Description

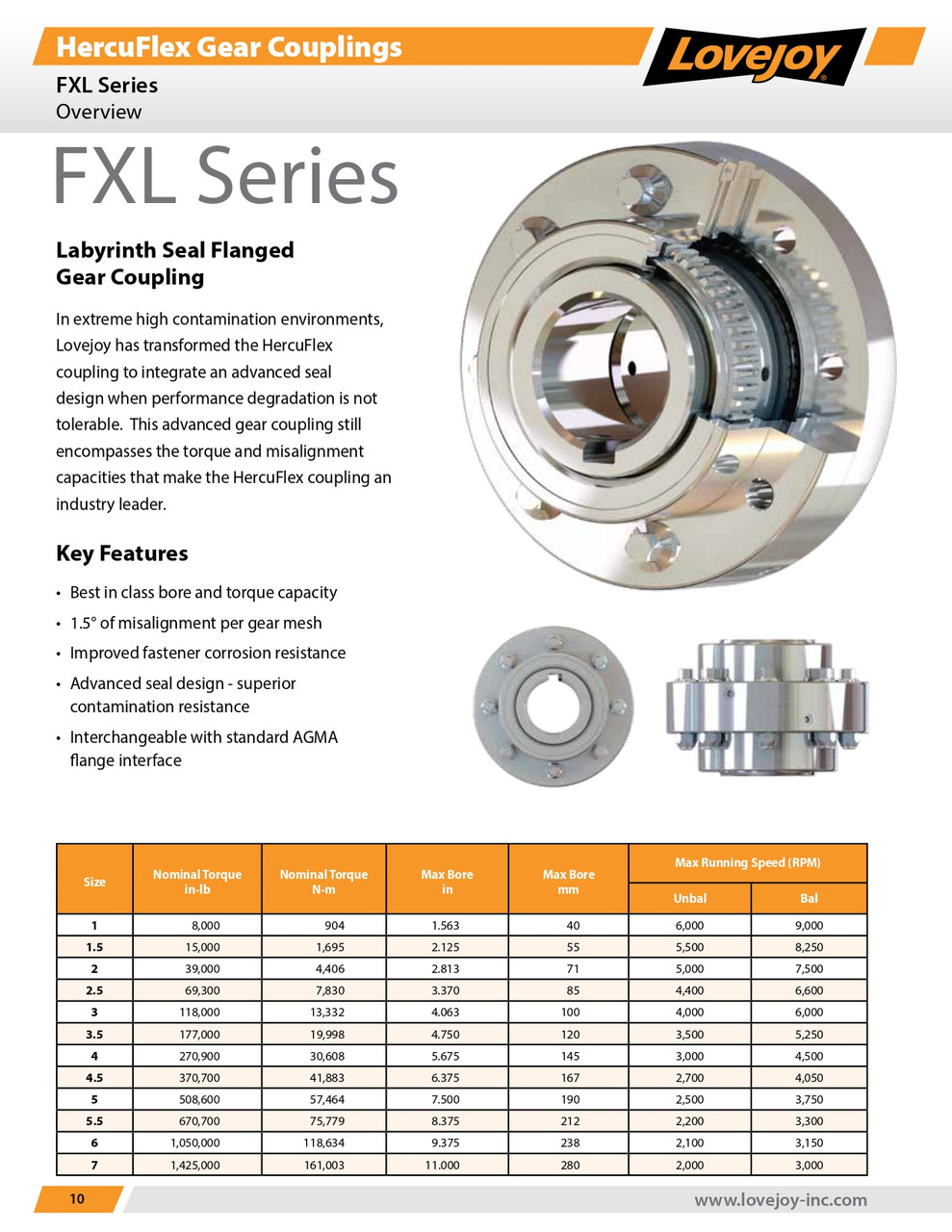

Metric HercuFlex® gear coupling hubs for FXL (flanged style).

The "L" in the name is for labyrinth seal.

In extreme high contamination environments, Lovejoy has transformed the HercuFlex® coupling to integrate an advanced seal design when performance degradation is not tolerable.

This advanced gear coupling still encompasses the torque and misalignment capacities that make the HercuFlex coupling an industry leader.

Unequaled bore and torque capacity

1.5° of misalignment per gear mesh

Improved fastener corrosion resistance

Advanced seal design intensifying contamination resistance

Interchangeable with standard AGMA flange interface

Timkens Quick Flex® Elastomeric Coupling Configurator helps you quickly size Quick Flex coupling solutions for common applications.

By entering motor power (HP or kW), speed (rpm), and service factors, the configurator presents available Quick Flex coupling options, supporting faster selection and quoting.

Access the Quick Flex® Coupling Configurator to speed up your next coupling selection.

Timken Lovejoy Master Catalog

Timken Lovejoy Hercuflex Catalog

Product Videos

Custom Field

Series FXL-3.5

Shaft diameter 90mm

Keyway size 25 x 5.4mm

Coupling type Hercuflex® gear coupler
