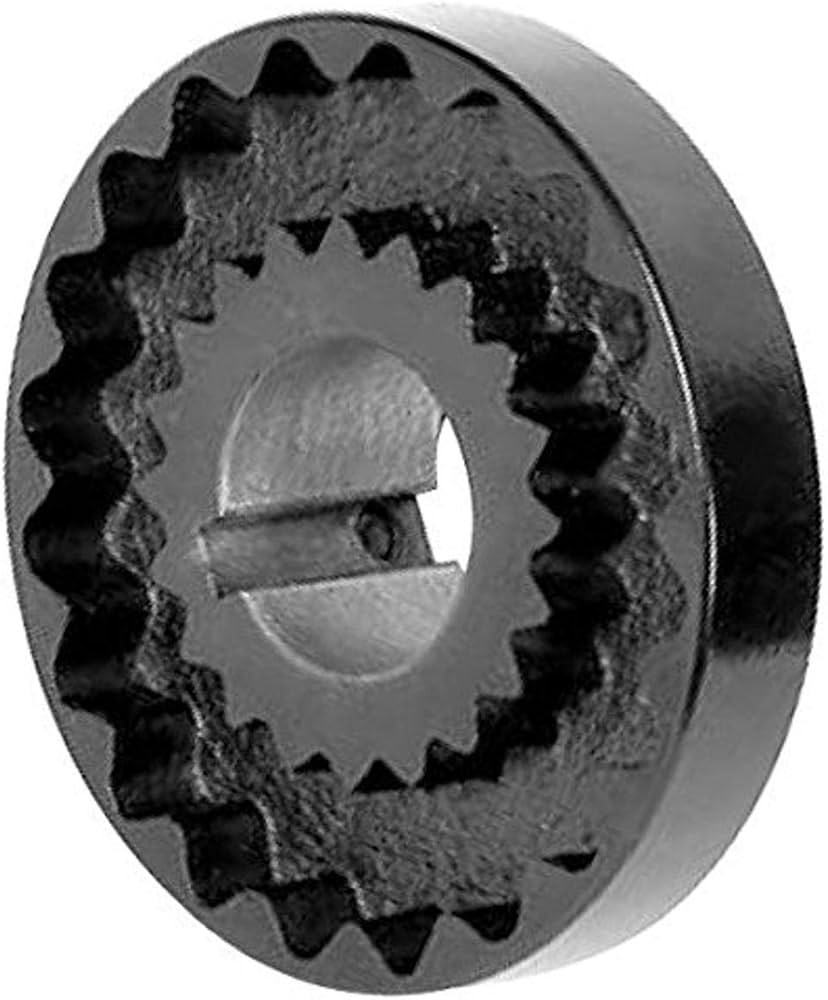

#9 x 1-3/8" Shaft Sure-Flex® Coupling Half 9S-FLNG-1-3/8-5/16X5/32KW

S flanges are made of high strength cast iron and are bored-to- size for a slip fit on standard shafts.

S flanges are easy to install, are readily available from stock in a wide range of popular bore sizes, and are supplied with two set screws at 90°.

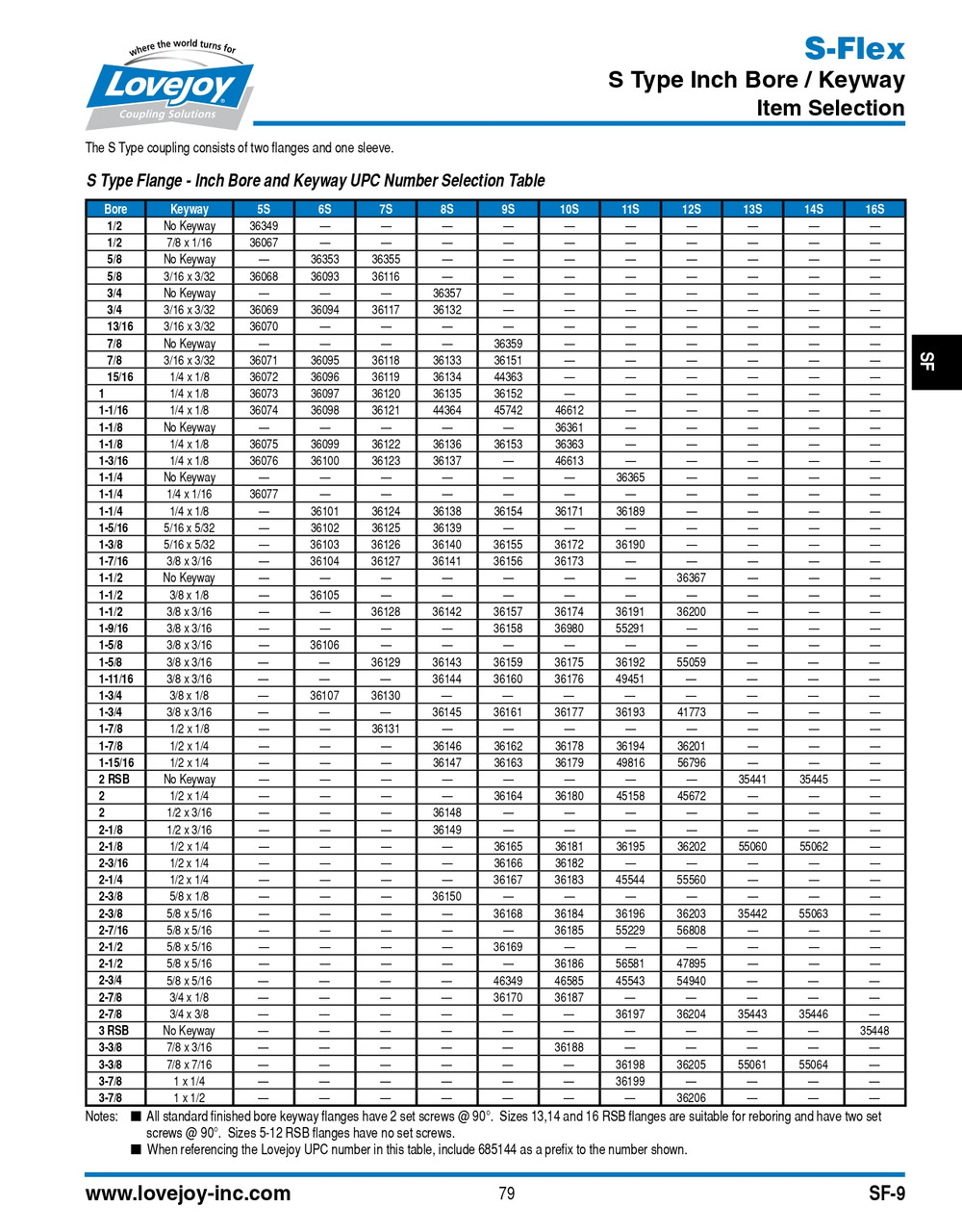

The S Type coupling consists of two flanges and one sleeve.

All standard finished bore keyway flanges have 2 set screws at 90°.

Sizes 13, 14 and 16 RSB flanges are suitable for reboring and have two set screws at 90°.

Sizes 5-12 RSB flanges have no set screws.

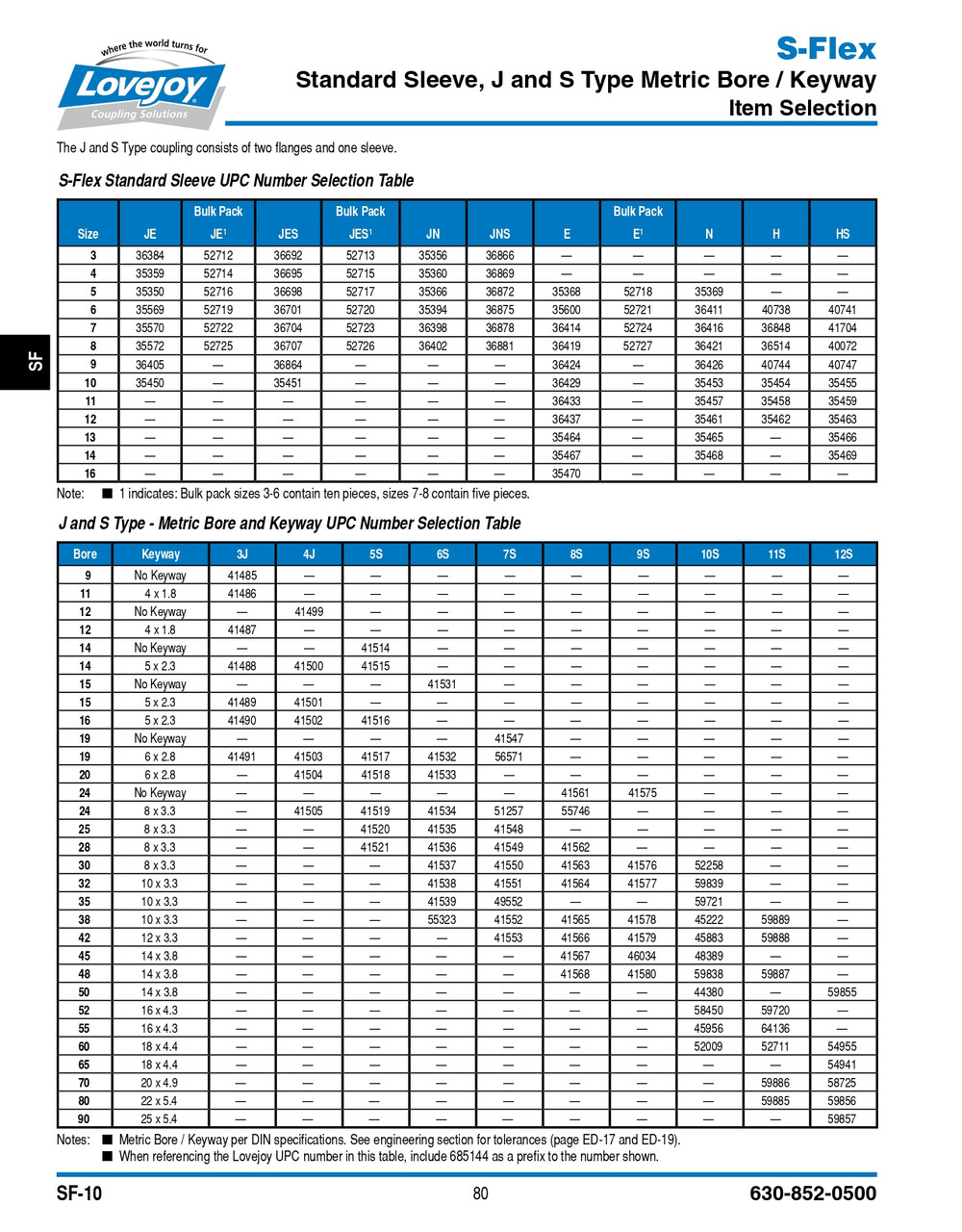

Metric Bore / Keyway per DIN specifications.

Spacing between shafts should be greater than 1/8 inch and less than OAL minus the sum of the two bore dimensions.

Timken Lovejoy Master Catalog

S-Flex Coupling Installation Guide

Shaft diameter 1-3/8"

Series #9

Material Cast iron

Keyway size 5/16 x 5/32"

Coupler type Sure-flex coupler
