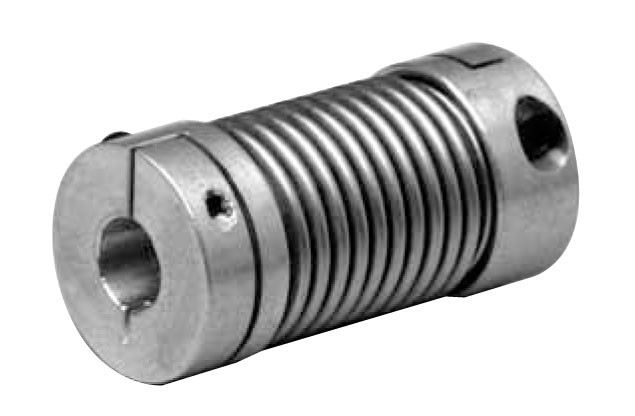

8mm x 8mm Shaft Lovejoy® BWC-47 Bellows Clamp Coupling BWC47-CP-8MMX8MM

Overview
Reviews

Product Description

The BWC (Bellows Clamp) Series coupling provides a new range of coupling options with the high torsional stiffness. The higher torsional stiffness provides the benefit of accuracy and repeatability in motion control applications. The BWC series coupling features aluminum hubs and corrosion resistant steel bellow.

The compact design also offers the benefit of low inertia. The BWC Series also has a torque capacity of up to 89 in-lbs, with a maximum bore capacity of .748 inches in diameter. The BWC utilizes clamping style hubs that provide easy installation and removal of the coupling. The bellows design also offers up to .016 inches of axial misalignment, with low reactionary loading on bearings.

High torsional stiffness

Low reactionary loading

No maintenance required

Low inertia

Nominal torque, torsional stiffness, weight and moment of inertia are based on minimum bore size.

Timkens Quick Flex® Elastomeric Coupling Configurator helps you quickly size Quick Flex coupling solutions for common applications.

By entering motor power (HP or kW), speed (rpm), and service factors, the configurator presents available Quick Flex coupling options, supporting faster selection and quoting.

Access the Quick Flex® Coupling Configurator to speed up your next coupling selection.

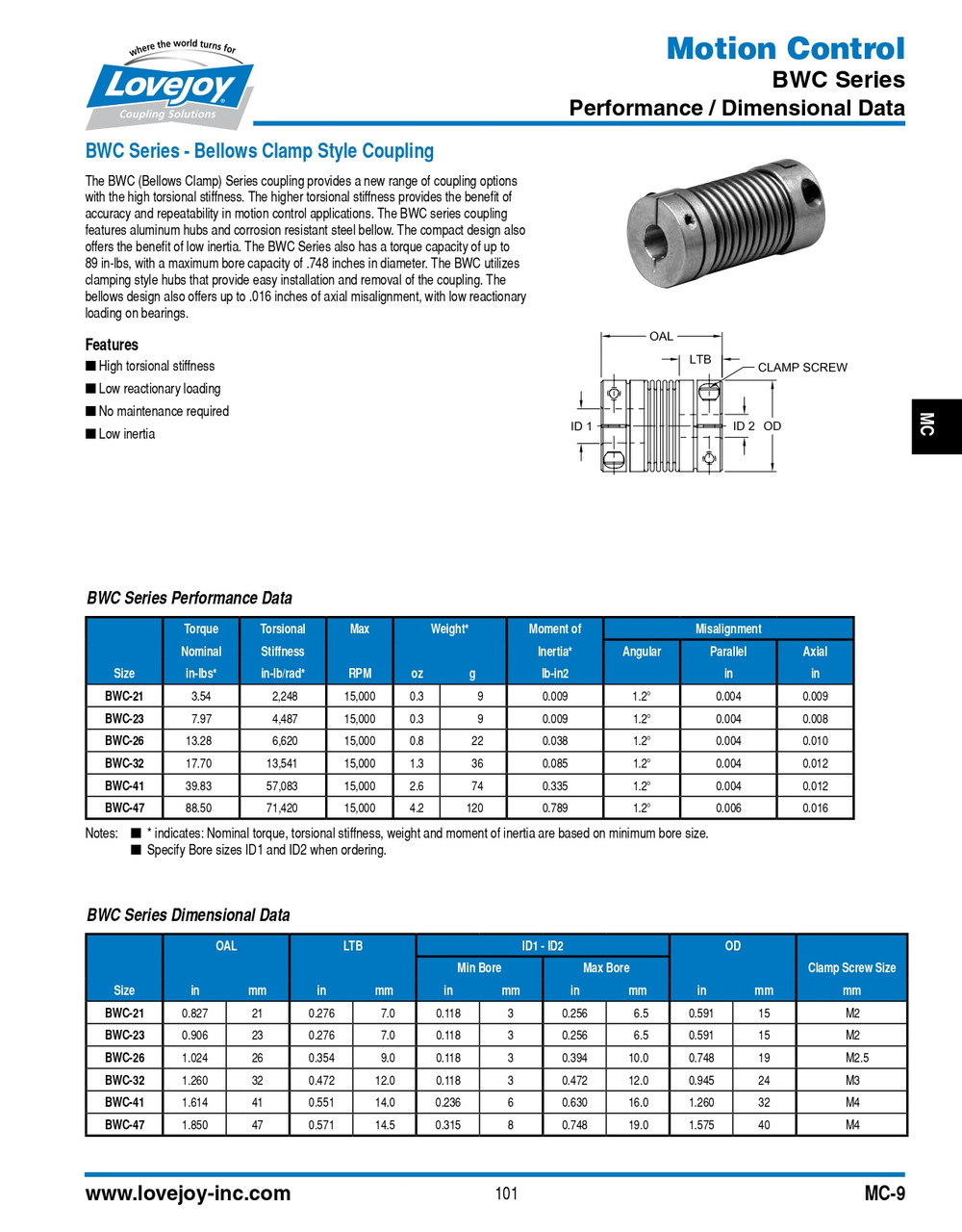

Timken Lovejoy Master Catalog

BWC & BWLC Instructions

Product Videos

Custom Field

Series BWC-47

Shaft diameter 8mm x 8mm

Material Aluminum & stainless steel

Keyway size No keyway

Coupling type Bellows clamp coupler
