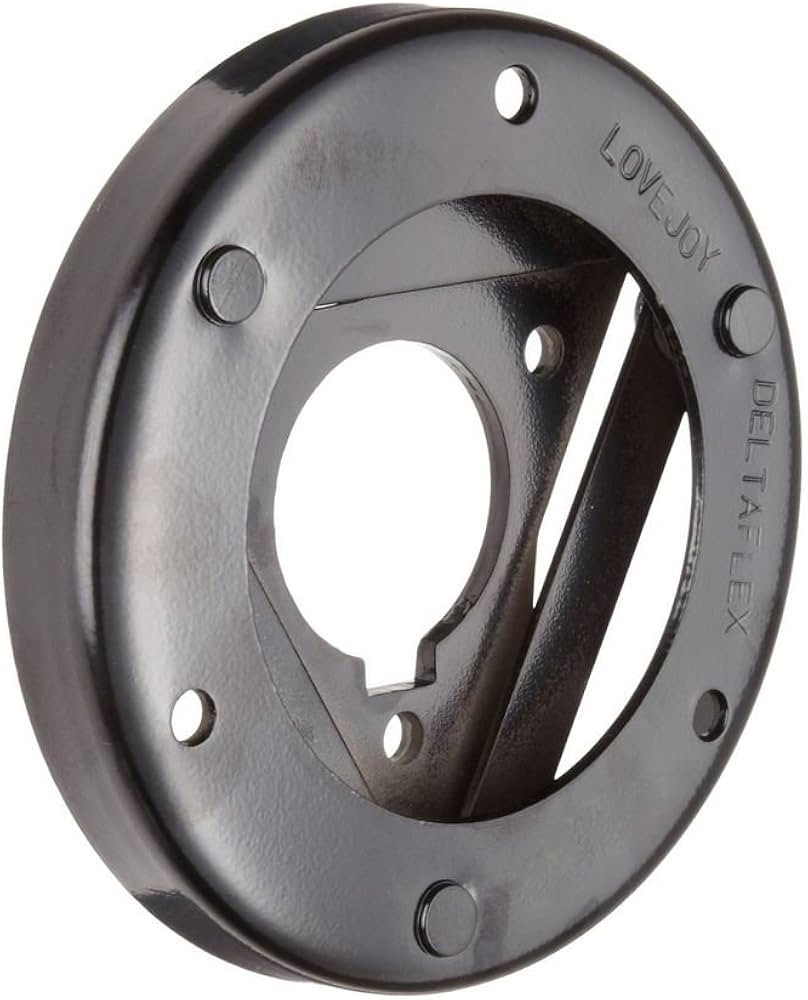

80HT Series Lovejoy® Deltaflex® Spacer Flange Assembly 80HT-DLT SPCR FLNG

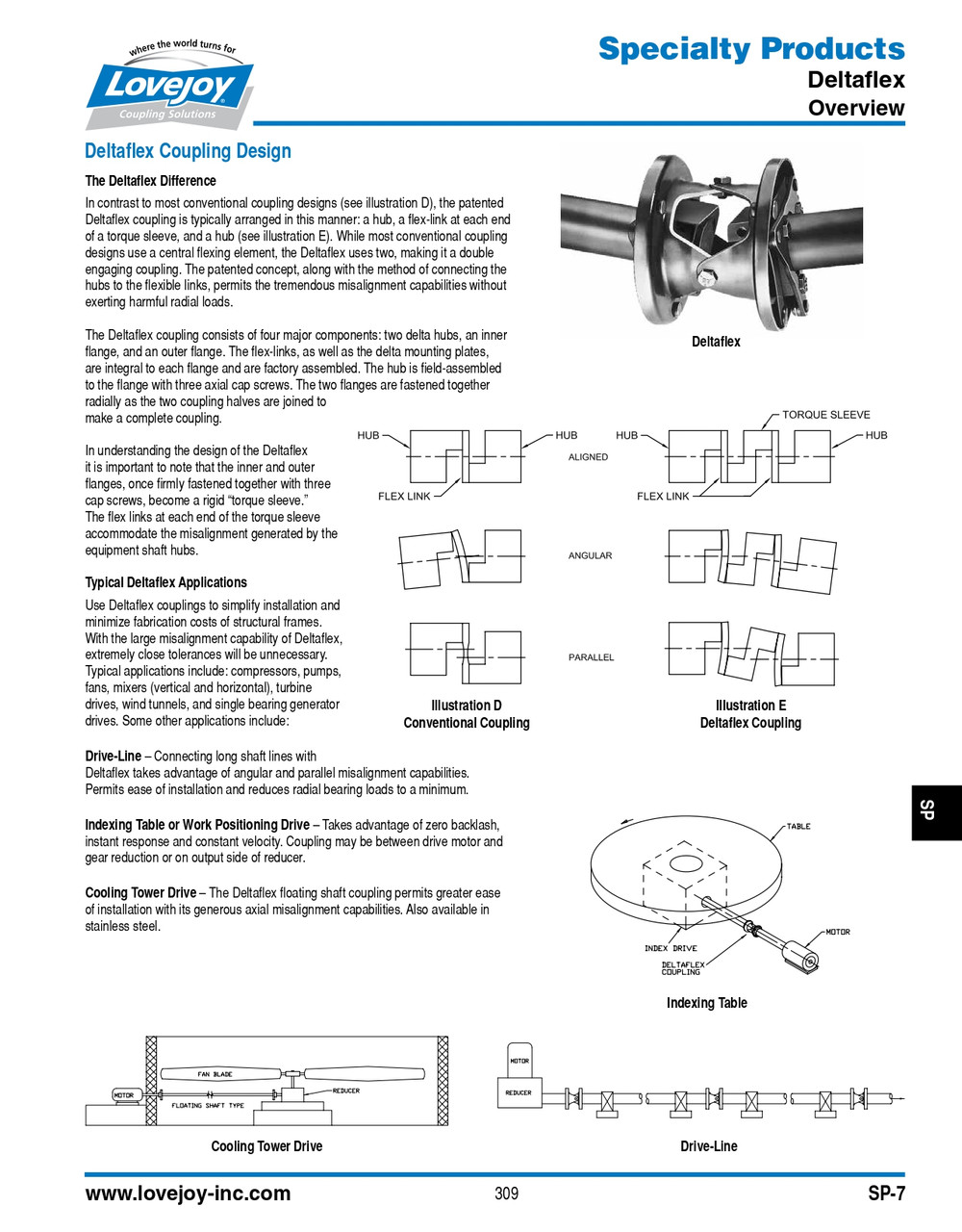

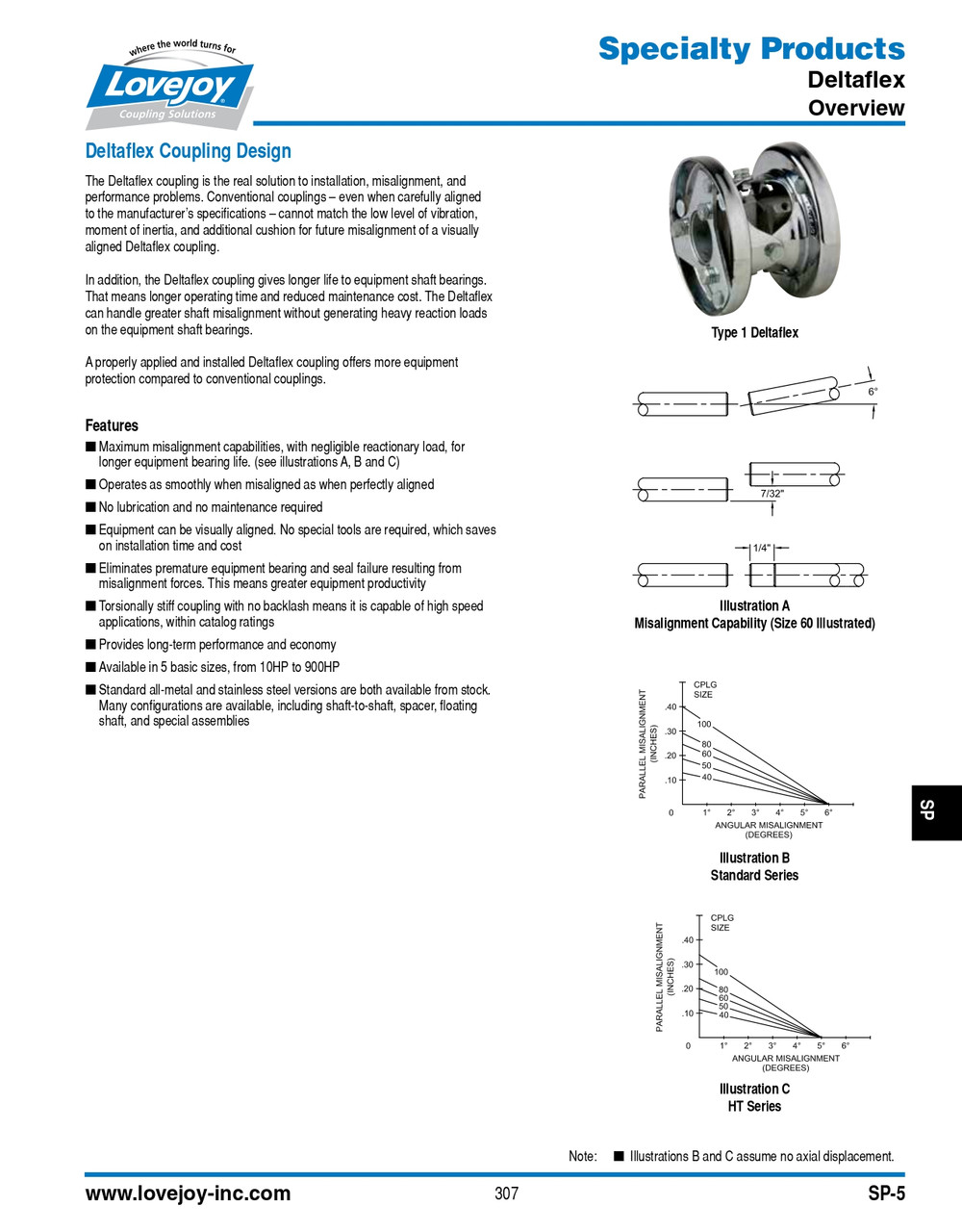

The patented Deltaflex series of couplings offer maximum misalignment capabilities with negligible reactionary load, for longer equipment life.

This all-metal flex-link coupling requires no lubrication or other maintenance.

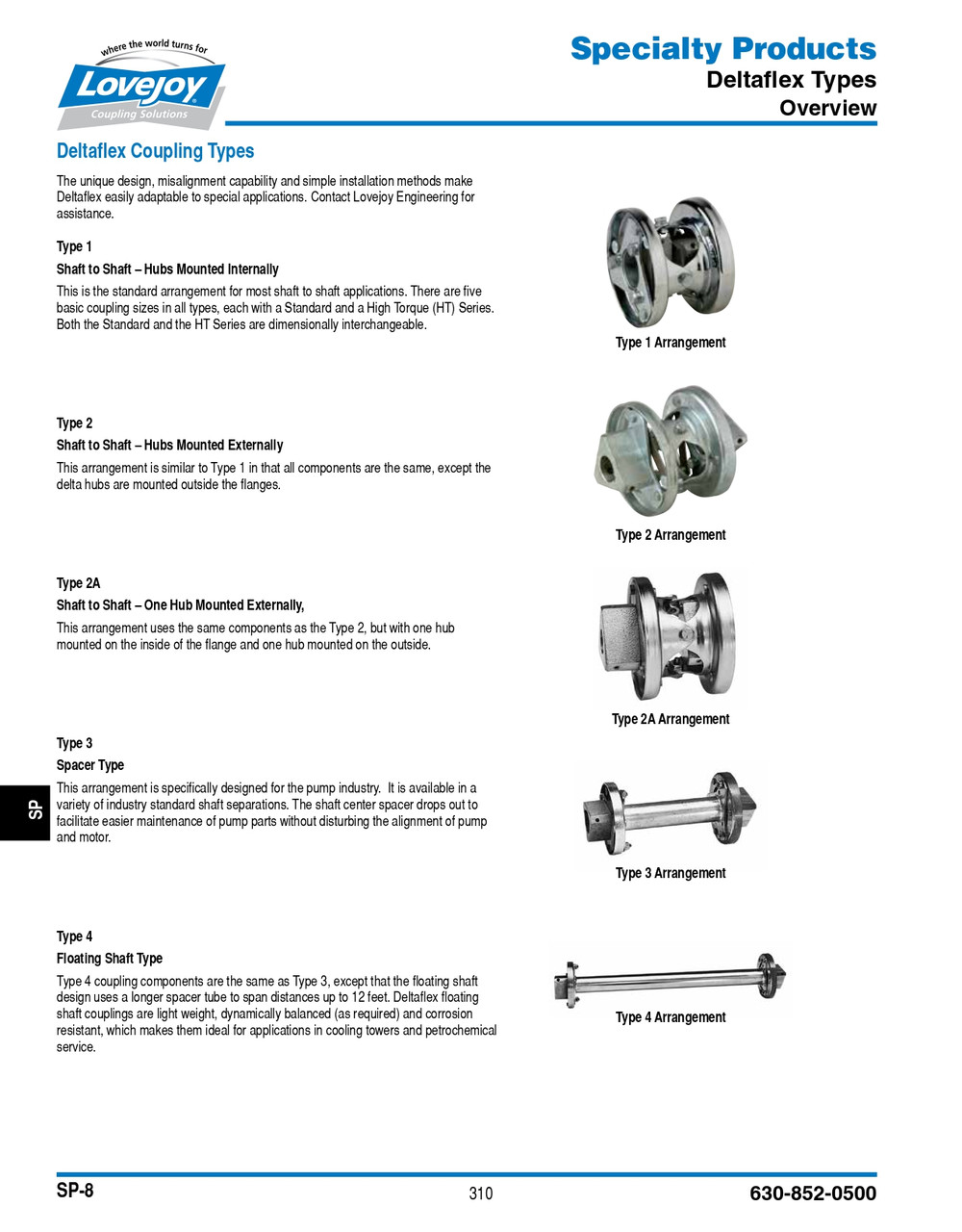

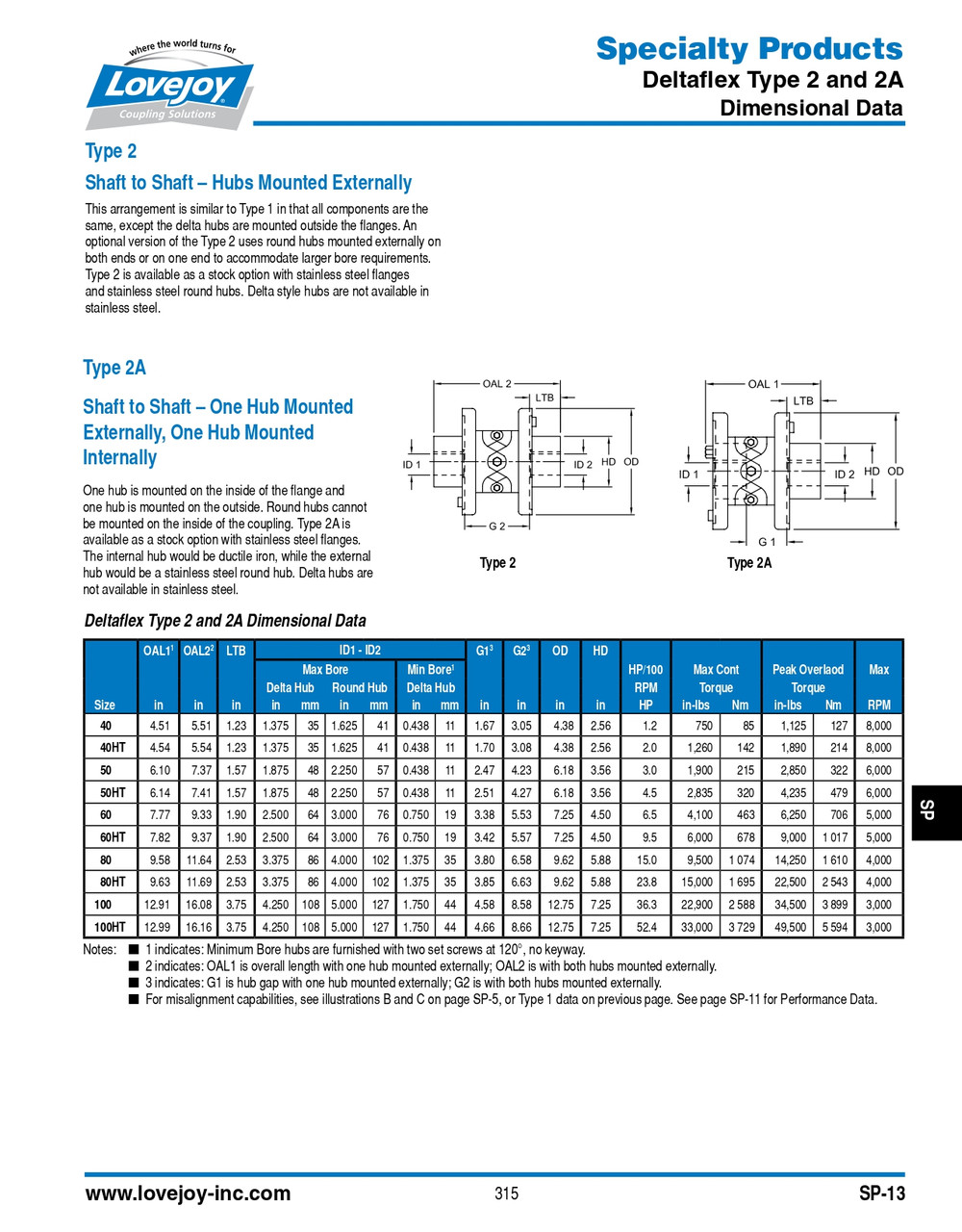

Standard (Type 1, 2, or 2A) Deltaflex coupling are comprised of two hubs, an inner flange (with hardware), and an outer flange.

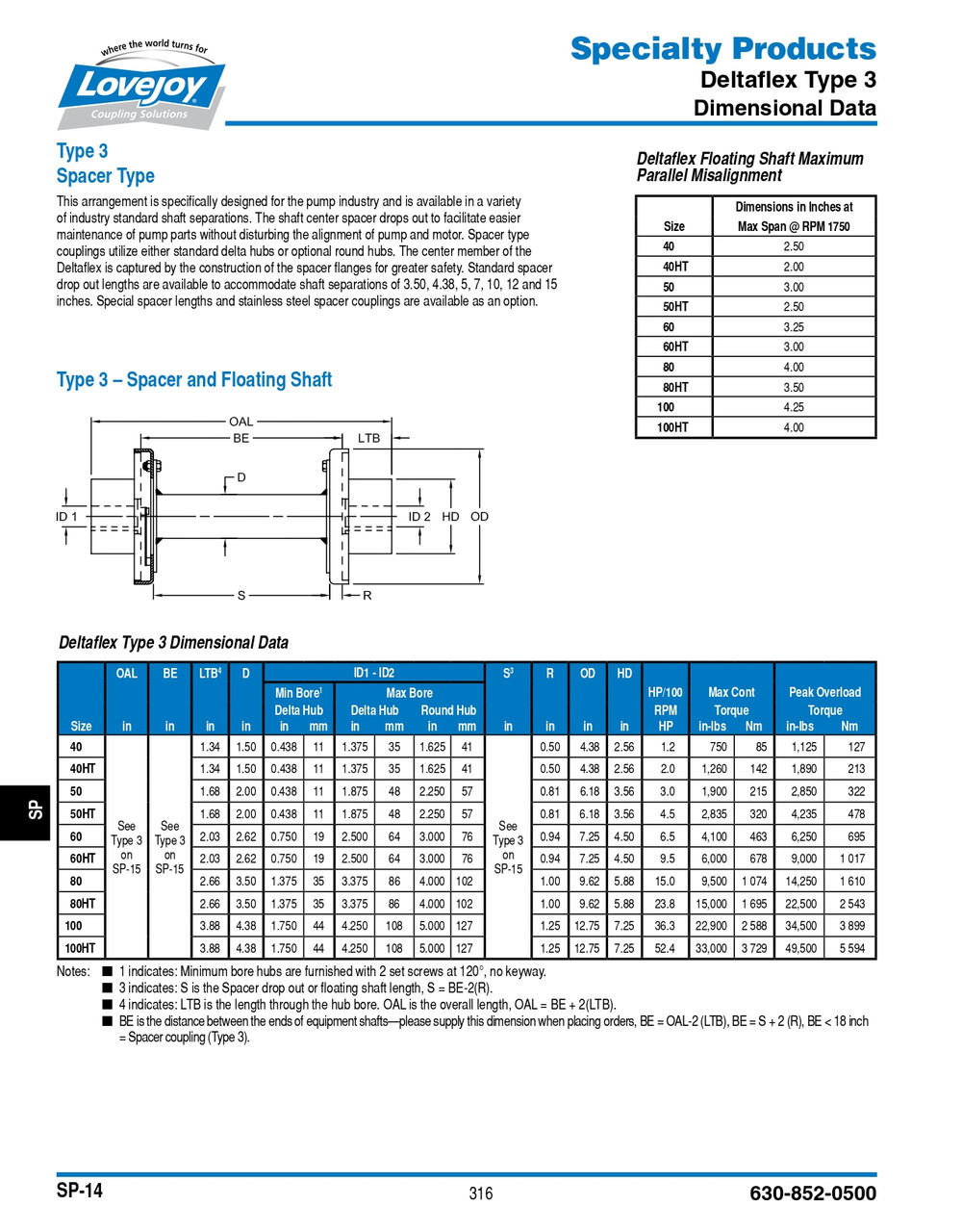

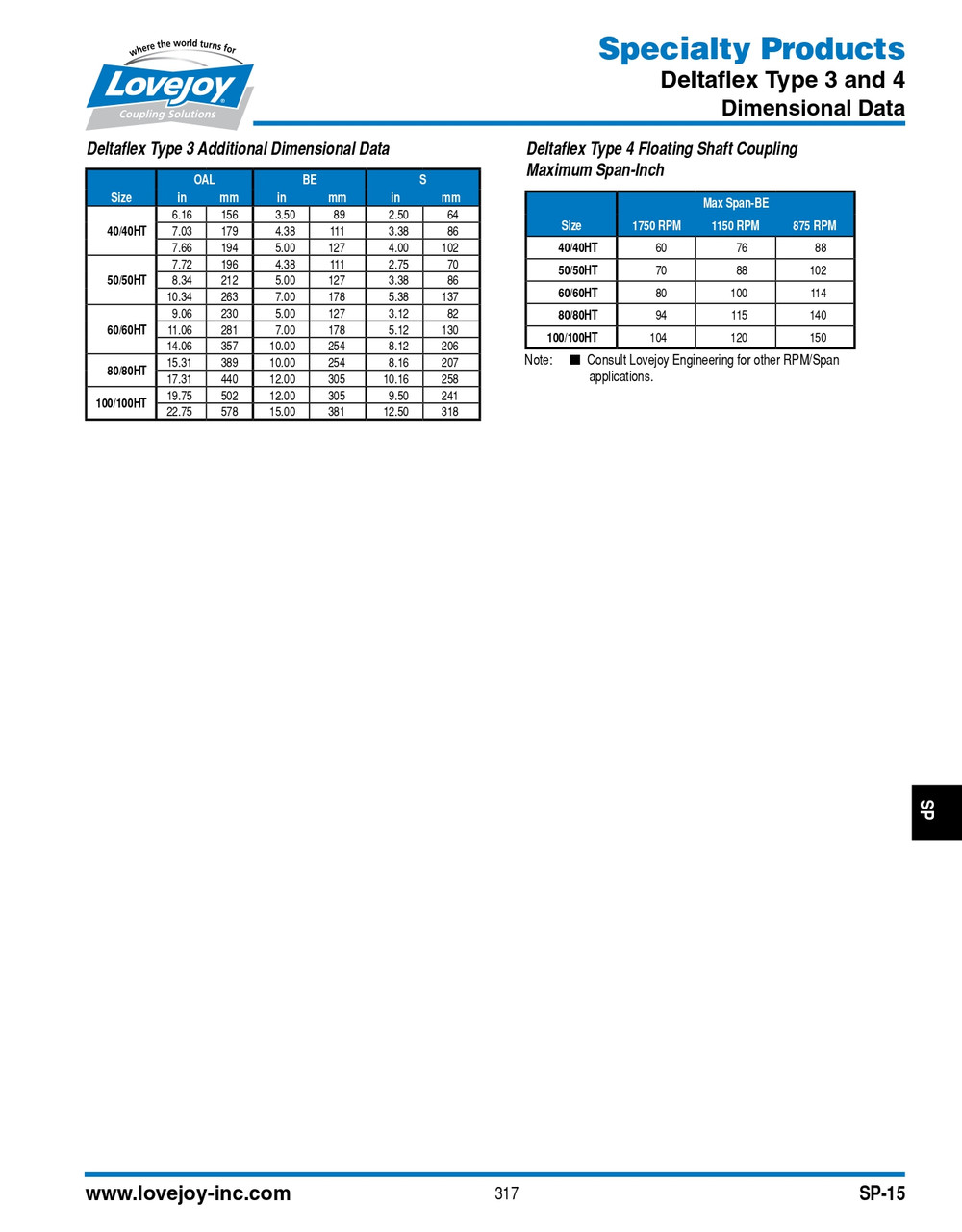

Spacer (Type 3 & 4) Deltaflex coupling are comprised of two hubs, two spacer flanges (with hardware), and a drop out spacer.

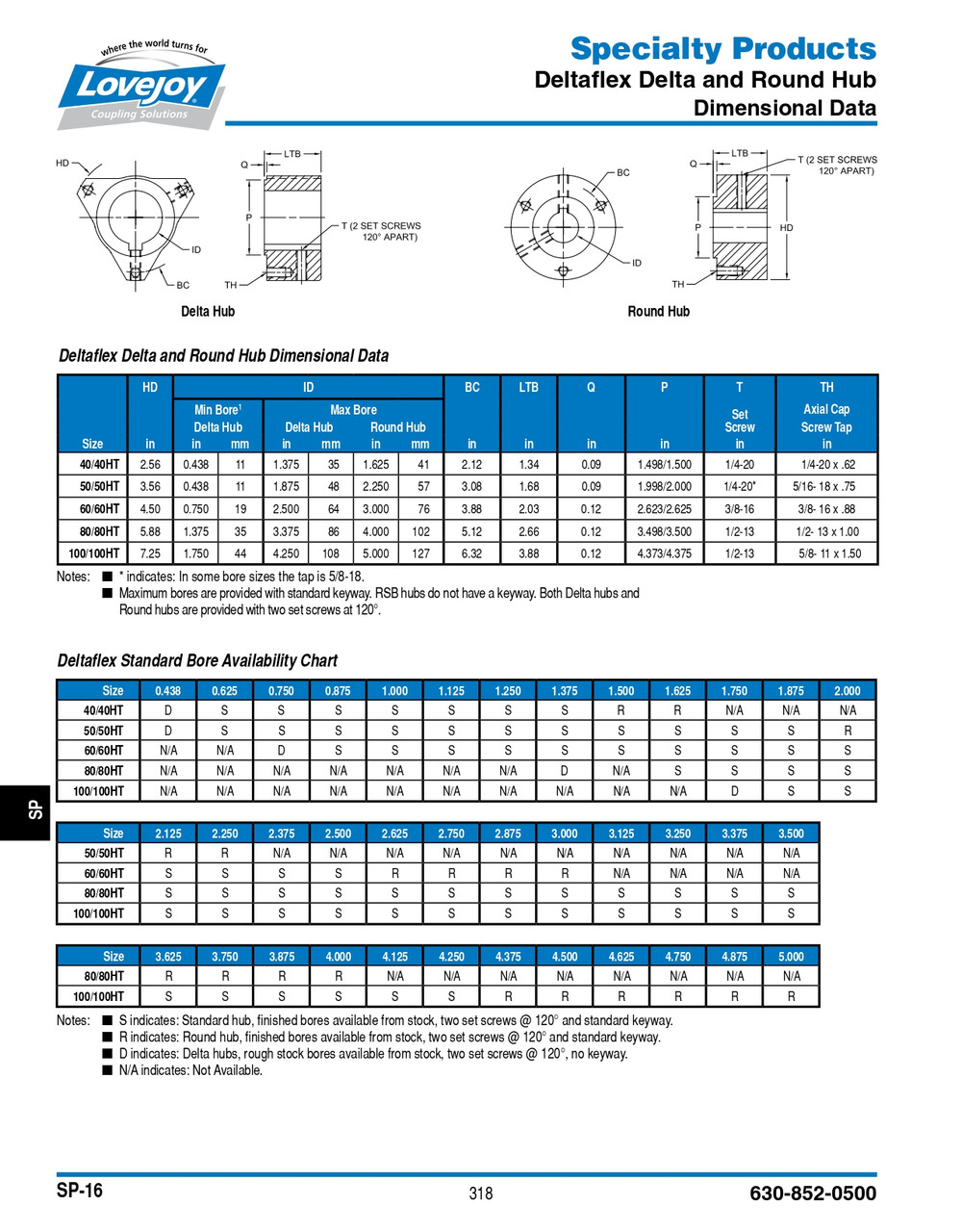

Unlike Delta hubs, Round hubs are available in stainless steel (SS).

Round hubs can also accommodate a larger max bore, but must always be mounted externally (no internal Type 1 mounting).

Standard Round hubs come with two set screws at 120°.

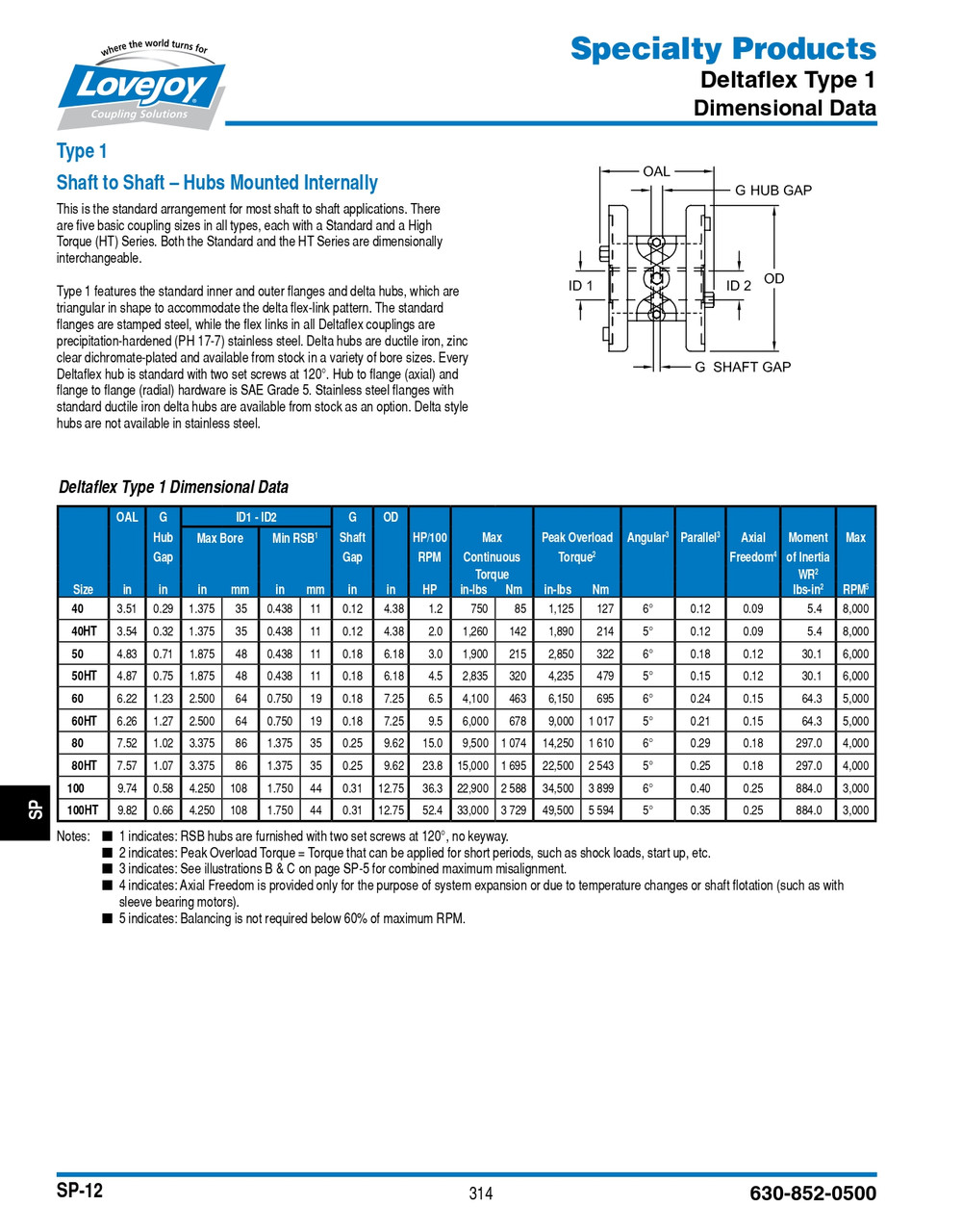

Timken Lovejoy Master Catalog

Deltaflex Coupling Installation Guide

Series 80HT

Coupling type Deltaflex coupler
