8" 2926V Type 1 Companion Sheave 2926G8SK-SHEAVE

Overview
Reviews

Product Description

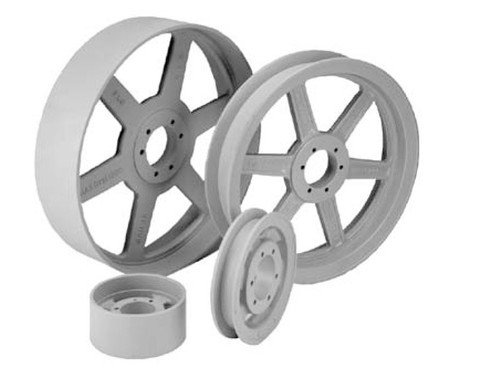

Lovejoy companion sheaves are made of durable cast iron to assure best possible wear at the belt contact area. Grooved sheaves, for use with V-V adjustable center drives, are machined to match the belt width and angle of standard variable speed belts for optimum efficiency. The spoked design provides strength and light weight. All companion sheaves are precision balanced for smooth running. The sheaves are bored to accept standard type tapered bushings for ease of installation, best possible shaft grip and removal from the shaft without damage to any of the parts.

Timkens Quick Flex® Elastomeric Coupling Configurator helps you quickly size Quick Flex coupling solutions for common applications.

By entering motor power (HP or kW), speed (rpm), and service factors, the configurator presents available Quick Flex coupling options, supporting faster selection and quoting.

Access the Quick Flex® Coupling Configurator to speed up your next coupling selection.

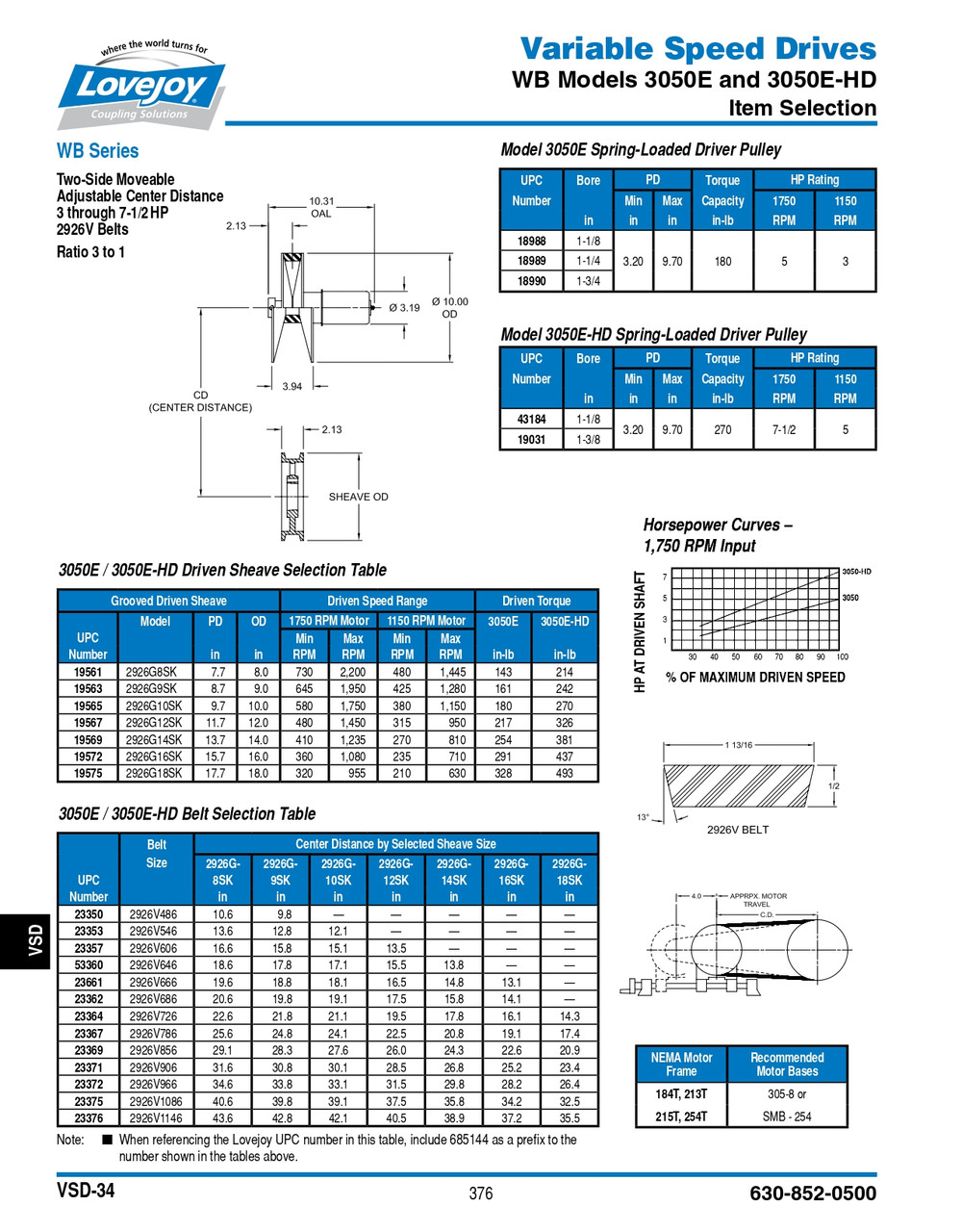

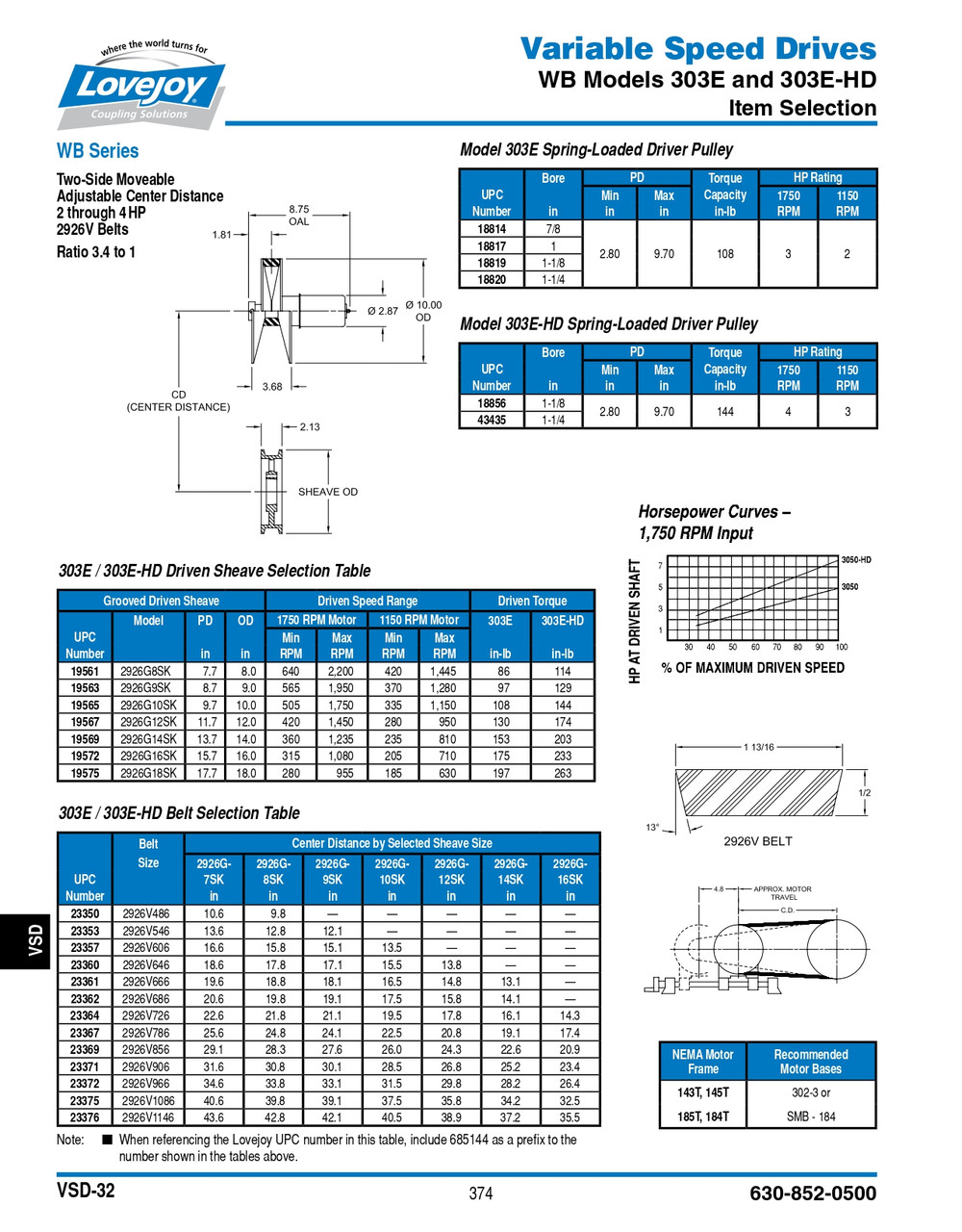

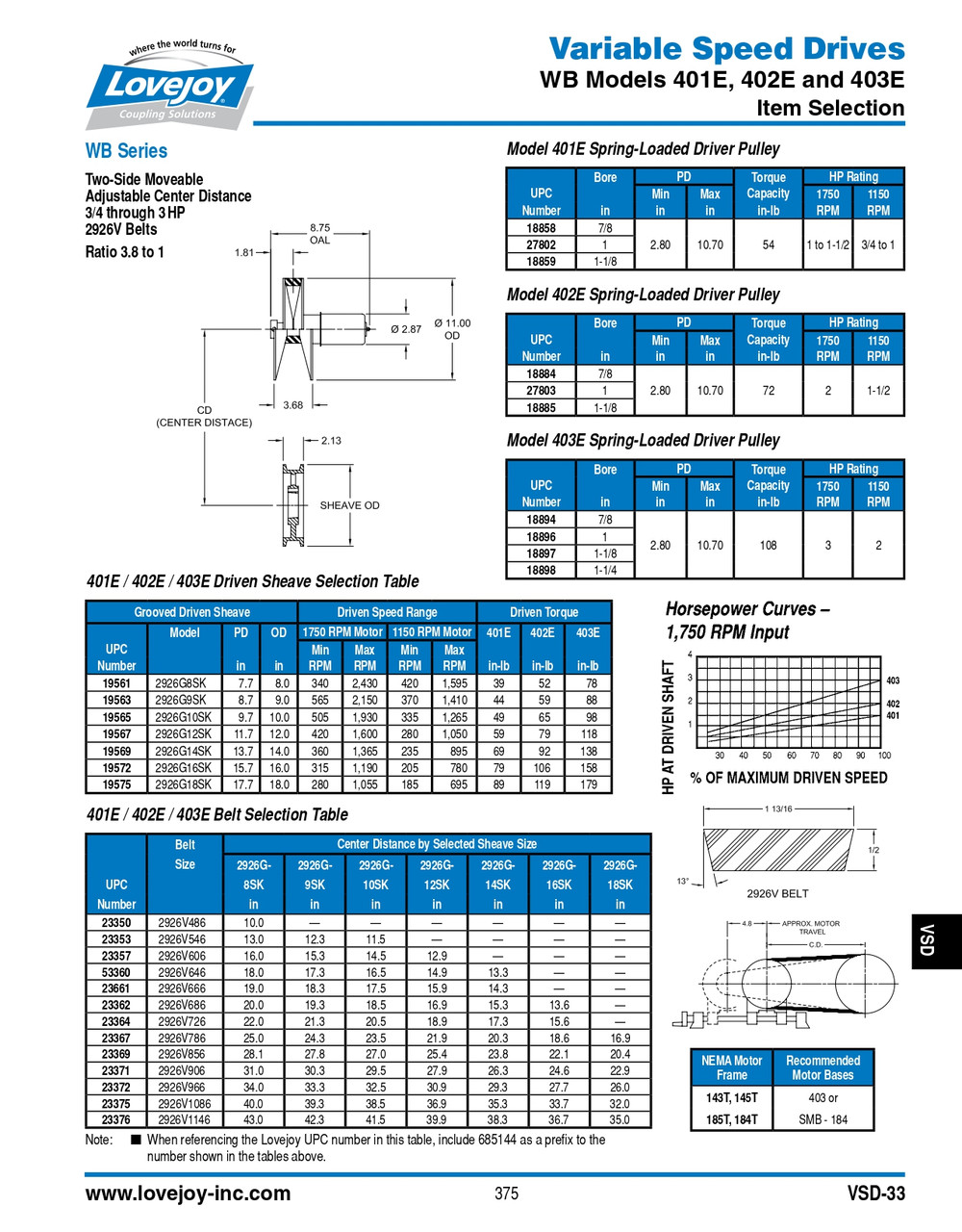

Timken Lovejoy Master Catalog

Product Videos

Custom Field

Series 2926G8SK

Material Cast iron

Outer diameter 8"

Bushing series SK

Bushing type QD

Belt size 2926V

Type Type 1 companion sheave
