#7 x 5/8" Shaft Sure-Flex® Spacer Coupling Half 7SCH-SPCR HUB-5/8-NKW

Overview
Reviews

Product Description

Specifically designed for the pump industry, this coupling accommodates industry standard as well as special pump/motor separation

This shaft separation facilitates easy pump repair of pump packing, bearings, and seals without disturbing pump or motor mounting and alignment

The SC Type coupling consists of two flanges, a sleeve and two shaft hubs

The center drop out section consists of two flanges and the flexible sleeve

Flanges can be mixed to form different shaft separations.

SC = Standard Length

SCHS = Short Length

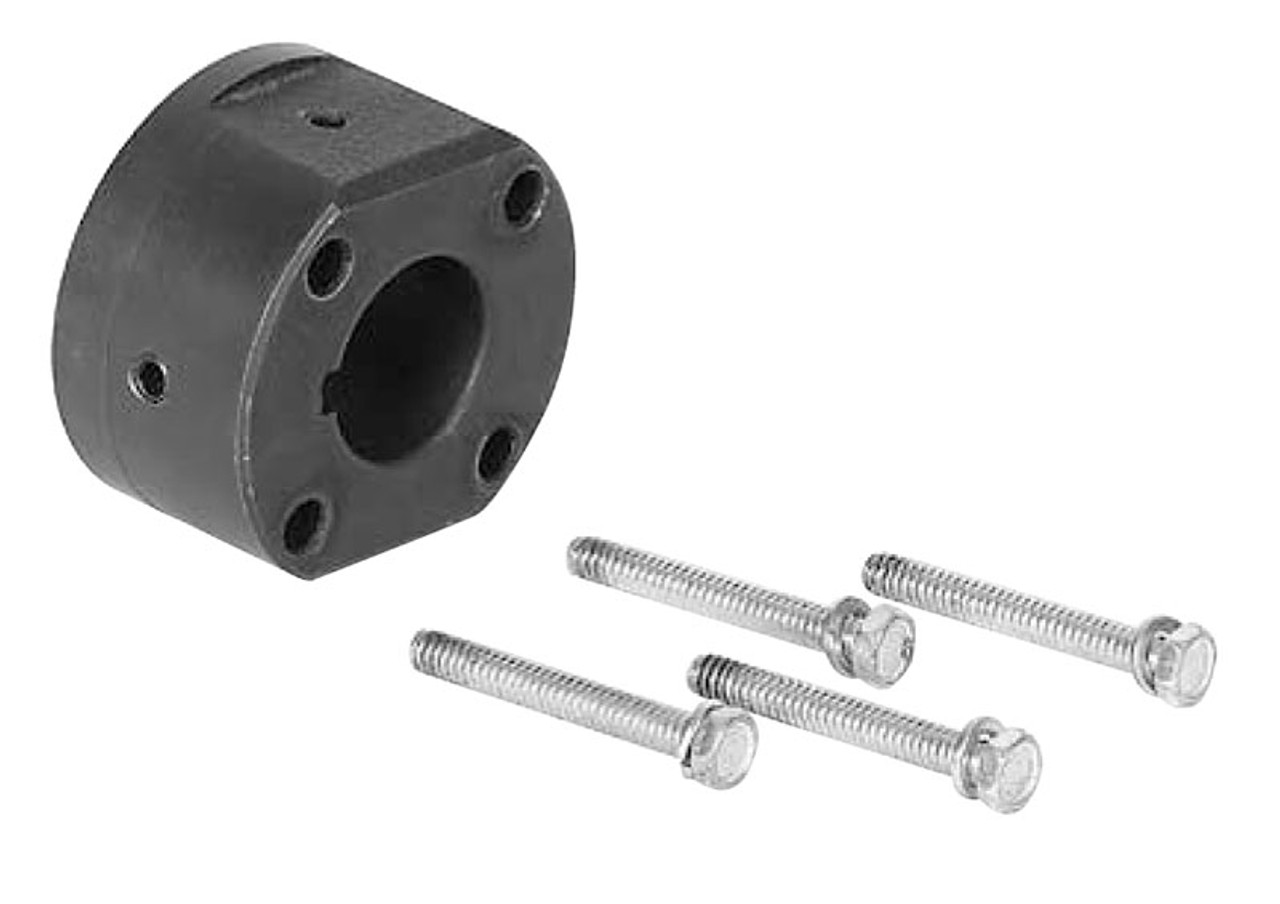

The flange is bolted to the shaft hub with four hex head cap screws

The center drop out section can be removed by removing the hex head cap screws

Flats on each hub provides a convenient grip for a wrench in order to facilitate loosening of the screws and, if desired, turning of the pump/motor shafts

Once the hub is removed from the pump shaft, maintenance on the pump can be done without disturbing equipment alignment

Timkens Quick Flex® Elastomeric Coupling Configurator helps you quickly size Quick Flex coupling solutions for common applications.

By entering motor power (HP or kW), speed (rpm), and service factors, the configurator presents available Quick Flex coupling options, supporting faster selection and quoting.

Access the Quick Flex® Coupling Configurator to speed up your next coupling selection.

Timken Lovejoy Master Catalog

S-Flex Spacer Installation Guide

Product Videos

Custom Field

Shaft diameter 5/8"

Series #7

Material Cast iron

Keyway size No keyway

Coupler type Sure-flex coupler
