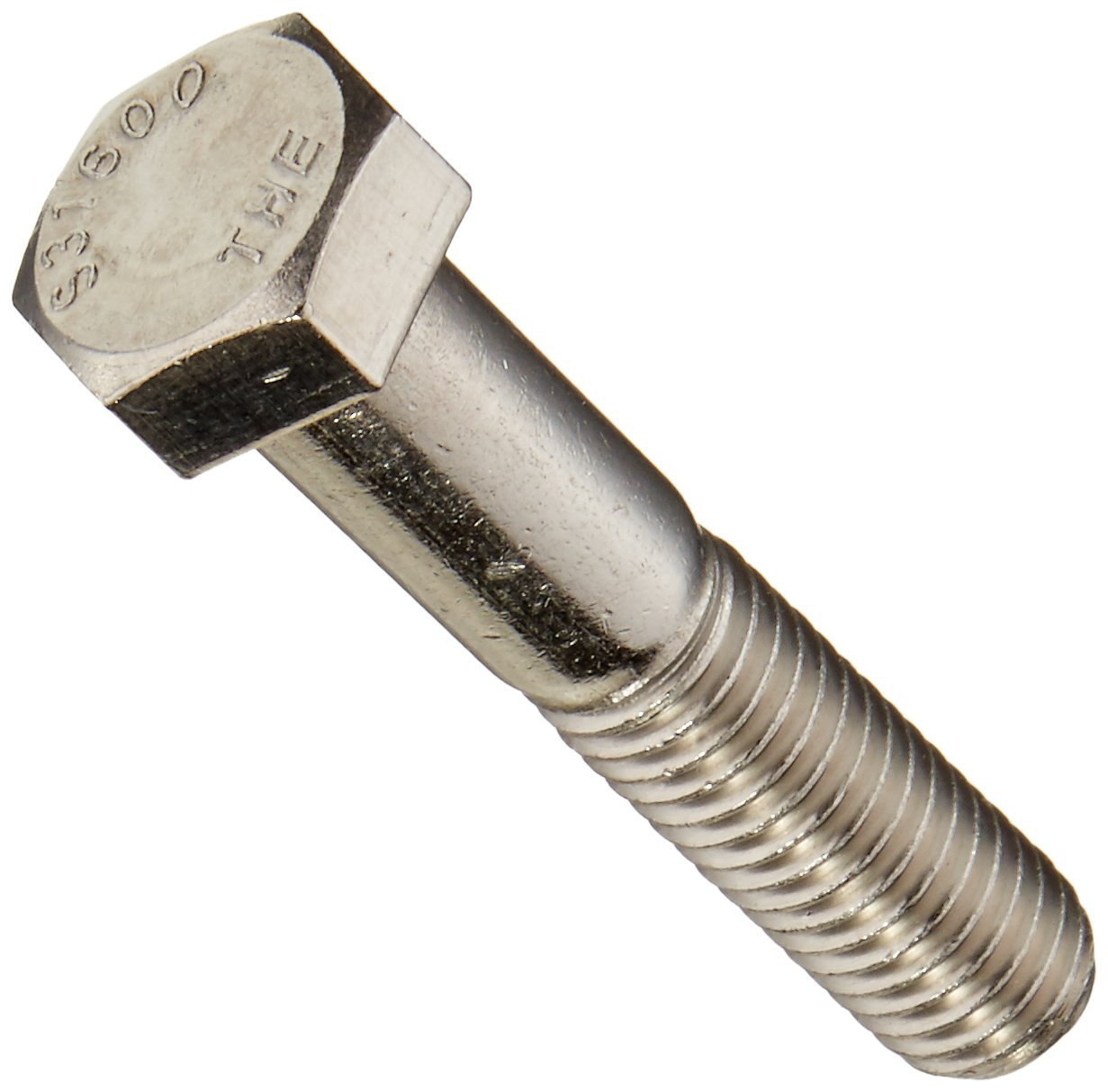

7/16"-14 UNC Hexagon Head Cap Screw - 316 Stainless 401214 - 401242

Overview
Reviews

Product Description

Stainless steel offers excellent protection against deterioration and corrosion but has caveats to be aware of.

The tensile strength of type 316 stainless steel is only slightly stronger than un-hardened grade 2 ferrous steel; for specific tensile strengths, please refer to the chart in the image carousel.

Be aware that when combining stainless steel fasteners; especially stainless lock nuts regardless the thread type or bolt diameter, it's recommended to coat the male bolt threads in never-seez before assembly as galling can occur and cause the nut to fuse to the bolt during installation/disassembly, leaving the threads looking melted as the nut seizes in place and any further turning of the wrench just shears the bolt in half.

To correctly measure the length "L" of any hexagon head cap screw, you must measure under the head.

When selecting inch threads, thread pitch is measured by counting every thread contained within 1" and is spoken as "threads per inch" (i.e. 3/8"-16 TPI)

When selecting metric threads, thread pitch is measured from one thread peak to the next in millimeters (i.e. M10-1.25mm). Many metric threaded bolts are cut with fine and extra-fine threads which further necessitate the need for proper thread identification before ordering. Vernier calipers and thread gauges proove invaluable for this task.

Click this link for a detailed Wiki explanation on the Unified Thread Standard

Click this link for a detailed Wiki explanation on the Metric Thread Standard

Fasteners meet A4 (316) ASME B18.2.1 ASTM F593 (CW) and comply with dimensional standards.

Brighton Best Stainless Fastener Catalog

Product Videos

Custom Field

Box quantity shown in drop down Sold as each

Head type Hexagon

Material 316 Stainless steel

Standard A4 (316) ASME B18.2.1 ASTM F593 (CW)
