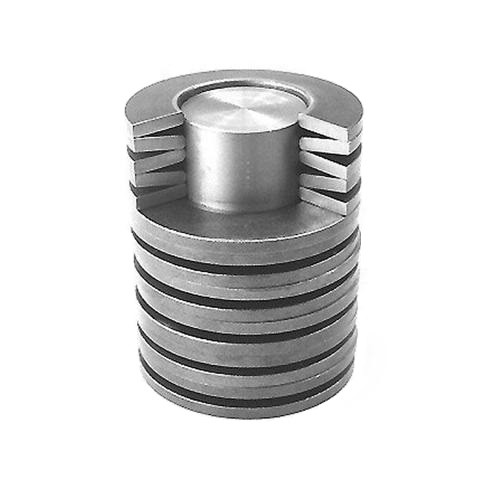

  • 6mm Disc Spring (DIN 2093) Conical Washer DS006.2-018-04
  • 6mm Disc Spring (DIN 2093) Conical Washer DS006.2-018-04
  • 6mm Disc Spring (DIN 2093) Conical Washer DS006.2-018-04
  • 6mm Disc Spring (DIN 2093) Conical Washer DS006.2-018-04
  • 6mm Disc Spring (DIN 2093) Conical Washer DS006.2-018-04

    • 6mm Disc Spring (DIN 2093) Conical Washer DS006.2-018-04

    DMR

    $0.00
    (No reviews yet) Write a Review
    SKU:
    DAE DS006.2-018-04
    Weight:
    0.00 LBS
    Bolt Diameter:
    6.00 mm
    Outer Diameter (OD):
    18.00 mm
    Inner Diameter (ID):
    6.20 mm
    Thickness (t):
    0.40 mm
    Overall Height (h):
    1.00 mm

    Product Description

  • The standard product range of DIN 2093 (Group 1, Group 2, Group 3) disc springs includes 246 sizes with outside diameters between 3.00 ~ 250.00 mm
  • These springs are manufactured from Ck67 and 50CrV4 graded steel material, and are typically available from stock
  • Disc springs with a thickness of 0.50 mm and greater are shot-peened to improve fatigue life
  • The standard corrosion protection is black phosphating and oiling (other coatings are available)



     adobepdficon.png  DMR Disc Spring & Belleville Washers



    •

    Product Videos

    Custom Field

    Bolt Diameter 6.00 mm
    Outer Diameter (OD) 18.00 mm
    Inner Diameter (ID) 6.20 mm
    Thickness (t) 0.40 mm
    Overall Height (h) 1.00 mm
