    Timken

    $305.06
    (No reviews yet) Write a Review
    SKU:
    TIM UELFL213
    UPC:
    UPC 13992169648
    Weight:
    12.54 LBS
    Bearing Type:
    Deep groove self aligning ball bearing insert
    Shaft profile:
    Round
    Bearing material:
    Hardened steel
    Housing material:
    Cast iron
    Classification:
    Standard duty
    Locking device:
    Locking collar
    Bearing series:
    UEL
    Greasable:
    Yes
    Adding to cart… category.add_cart_announcement

    Product Description

  • UELFL two-bolt flanged units are suggested for industrial applications where normal loads are encountered.
  • This series is primarily designed for applications where the mounting area is restricted.
  • Each unit comes assembled and ready for mounting, using bolts through the flange.
  • These units use wide inner ring ball bearings with self-aligning spherical outside diameters that compensate for shaft misalignment.
  • Timken UELFL series Mounted Bearings feature the Timken eccentric locking collar (UEL) bearing insert.
  • Bearing prelubricated and ready for immediate installation.
  • Grease fitting supplied for relubrication.
  • The bonded seal design is well-suited for applications involving wet or dirty environments.
  • Bolt-hole spacing dimensions and shaft center location are interchangeable with competitive units.
  • Housing designed for ease of bearing replacement.

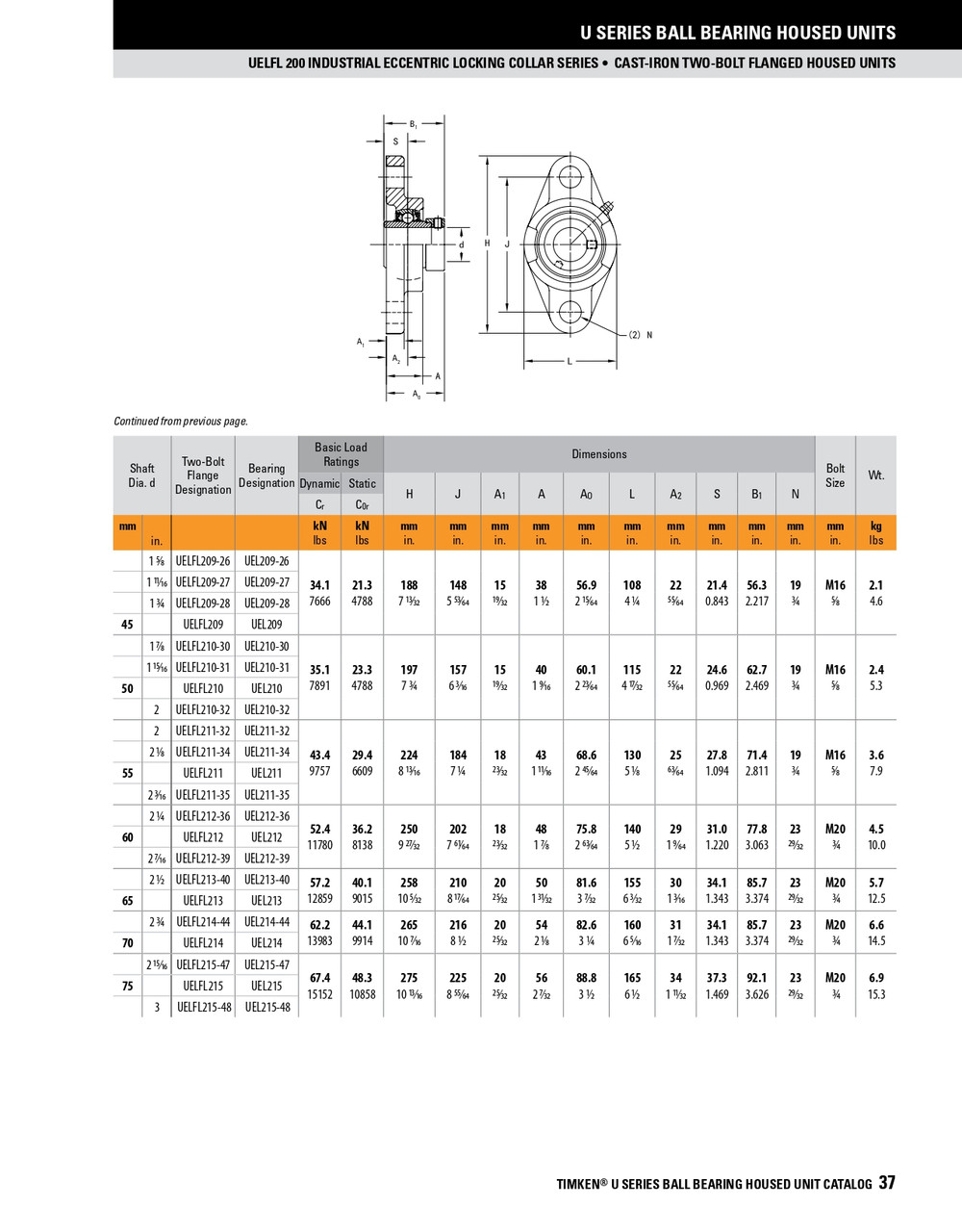

    adobepdficon.png Timken U Series Catalog

    • Product Videos

    Custom Field

    Bearing Type Deep groove self aligning ball bearing insert
    Shaft profile Round
    Bearing material Hardened steel
    Housing material Cast iron
    Classification Standard duty
    Locking device Locking collar
    Bearing series UEL
    Greasable Yes
