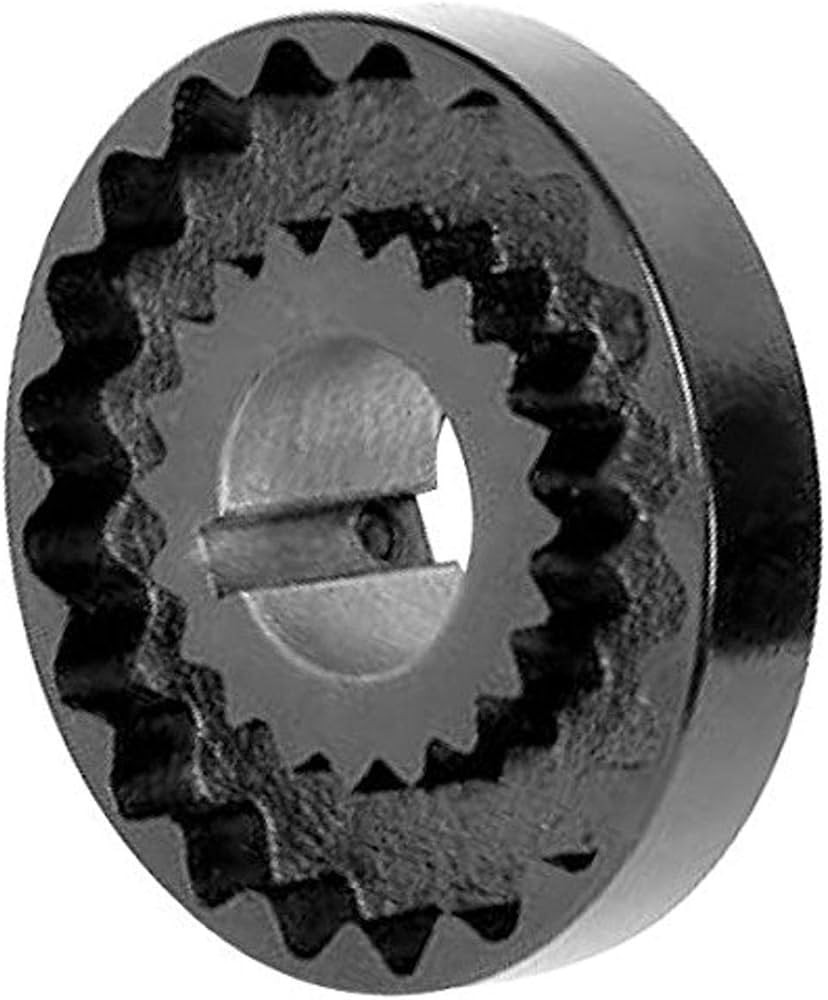

  • #6 x 1-3/8" Shaft Sure-Flex® Coupling Half 6J-FLNG-1-3/8-5/16X5/32KW
  • #6 x 1-3/8" Shaft Sure-Flex® Coupling Half 6J-FLNG-1-3/8-5/16X5/32KW
  • #6 x 1-3/8" Shaft Sure-Flex® Coupling Half 6J-FLNG-1-3/8-5/16X5/32KW
  • #6 x 1-3/8" Shaft Sure-Flex® Coupling Half 6J-FLNG-1-3/8-5/16X5/32KW
  • #6 x 1-3/8" Shaft Sure-Flex® Coupling Half 6J-FLNG-1-3/8-5/16X5/32KW

    • #6 x 1-3/8" Shaft Sure-Flex® Coupling Half 6J-FLNG-1-3/8-5/16X5/32KW

    Timken

    $39.82
    (No reviews yet) Write a Review
    SKU:
    TIM 6J-FLNG-1-3/8-5/16X5/32KW
    UPC:
    UPC 0685144360885
    Weight:
    1.89 LBS
    Shaft diameter:
    1-3/8"
    Series:
    #6
    Material:
    Cast iron
    Keyway size:
    5/16 x 5/32"
    Coupler type:
    Sure-flex coupler
    Adding to cart… category.add_cart_announcement

    Product Description

  • The J Type flanges in sizes 3J and 4J are made from die cast of high strength zinc alloy (tensile strength of 41,000 psi) and are furnished bore-to-size.
  • Size 5J is provided in either zinc alloy or cast iron depending on the bore size.
  • Size 6J is made from cast iron.
  • J flanges are compatible with EPDM or Neoprene sleeves.
  • Each flange has a keyway and two set screws (one set screw over the key and one at 90° to the keyway).
  • The J Type coupling consists of two flanges and one sleeve.
  • Spacing between shafts should be greater than 1/8 inch and less than OAL minus the sum of the two bore dimensions.

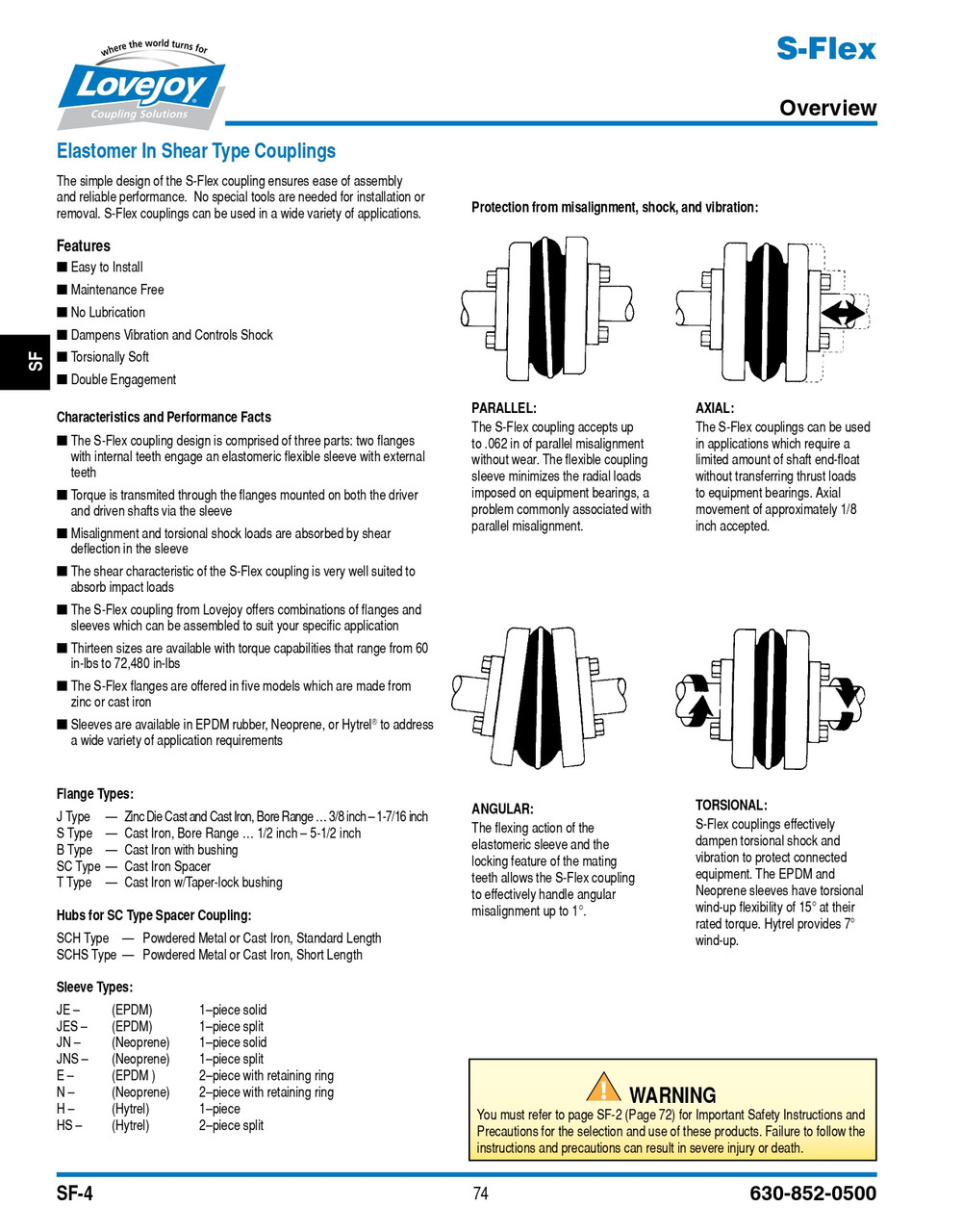

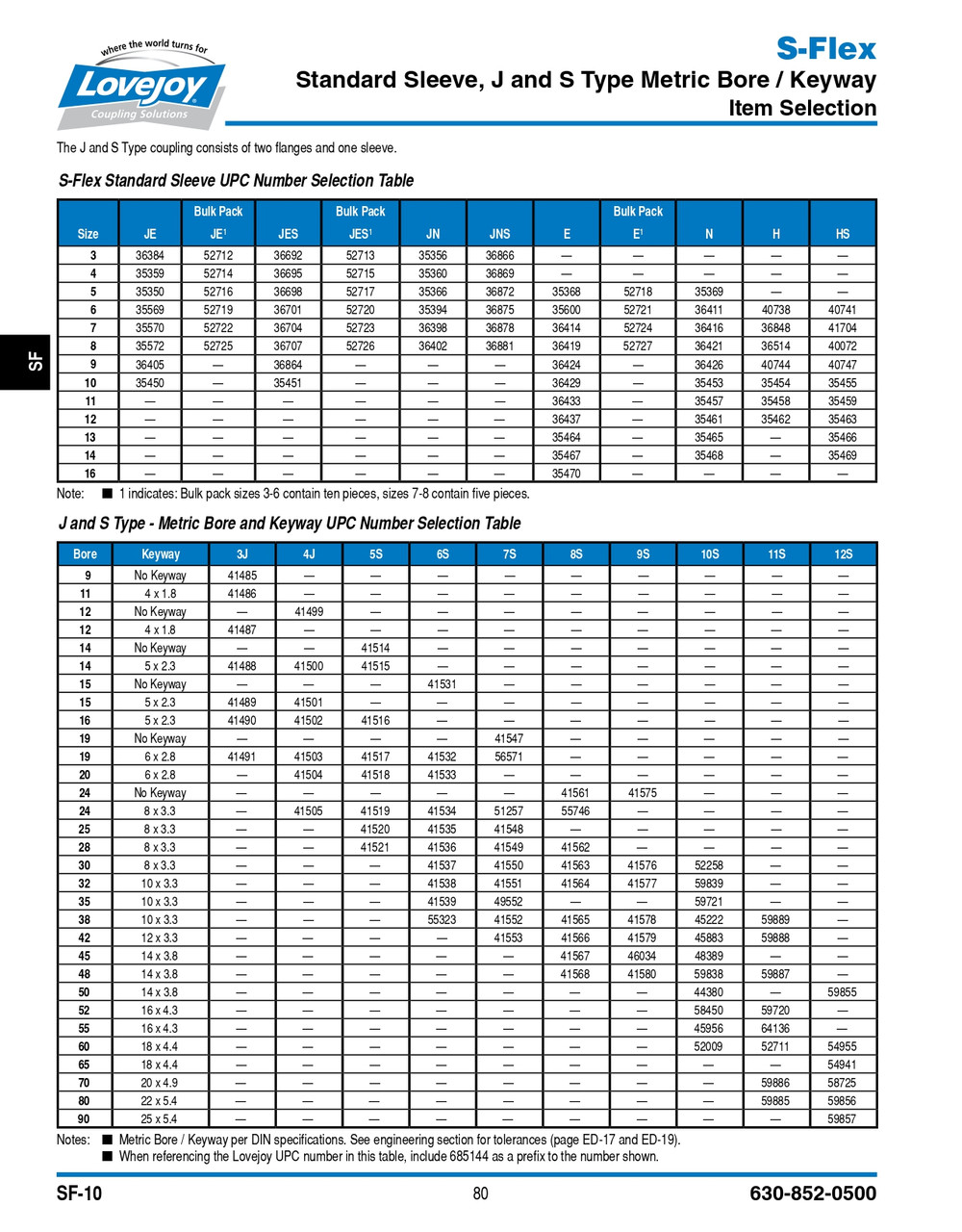

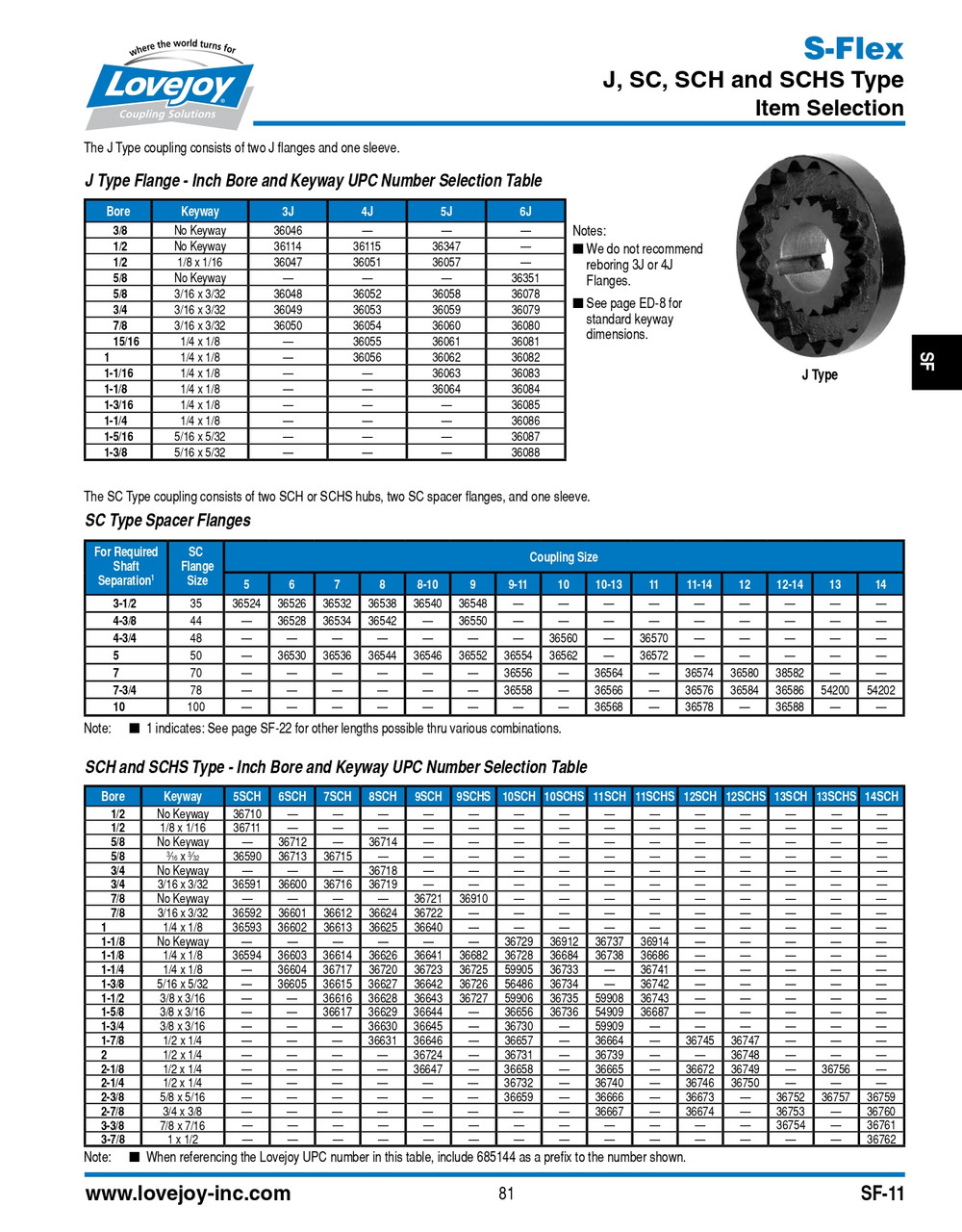

    adobepdficon.png Timken Lovejoy Master Catalog

    adobepdficon.png S-Flex Coupling Installation Guide

    • Product Videos

    Custom Field

    Shaft diameter 1-3/8"
    Series #6
    Material Cast iron
    Keyway size 5/16 x 5/32"
    Coupler type Sure-flex coupler
