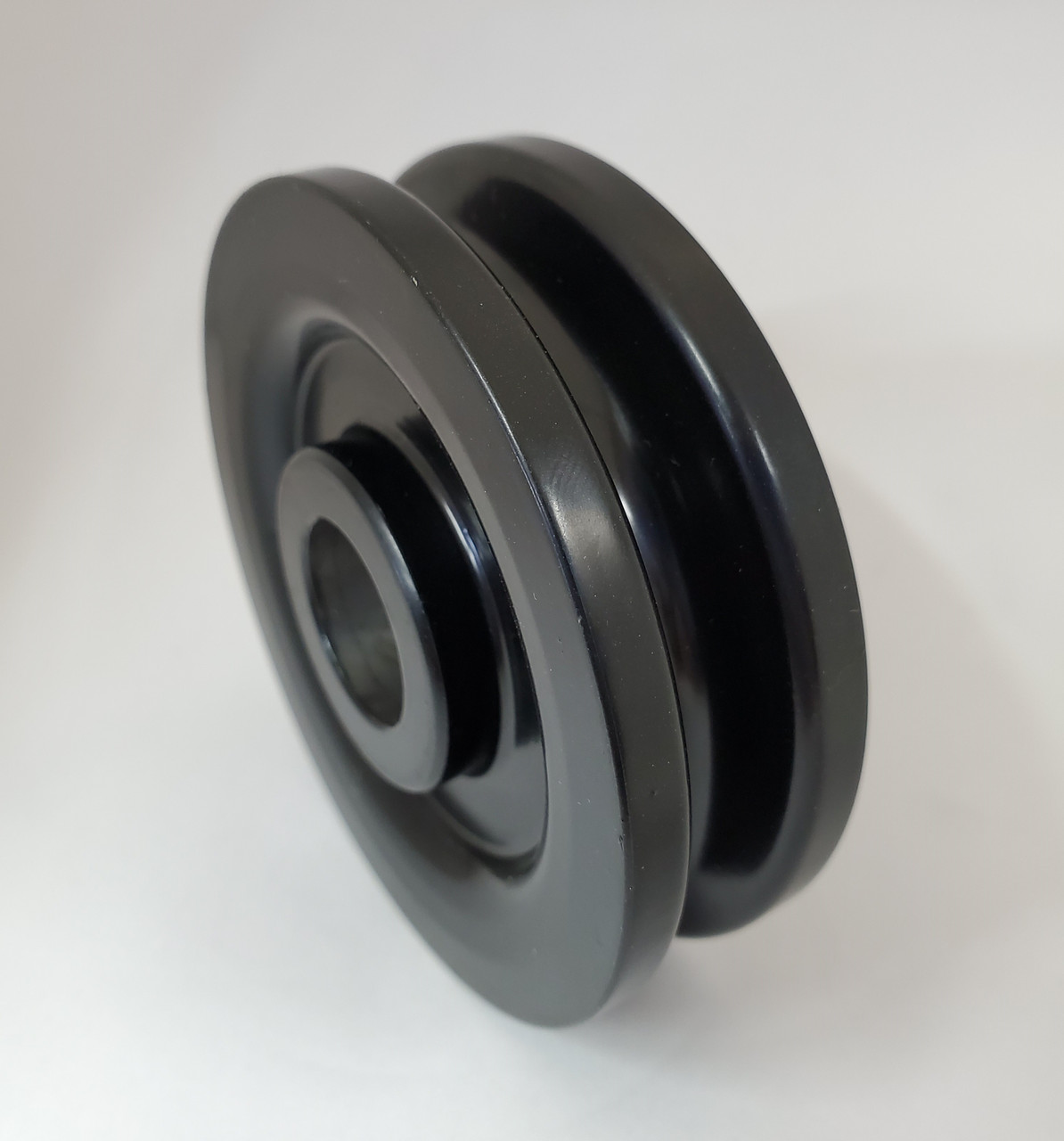

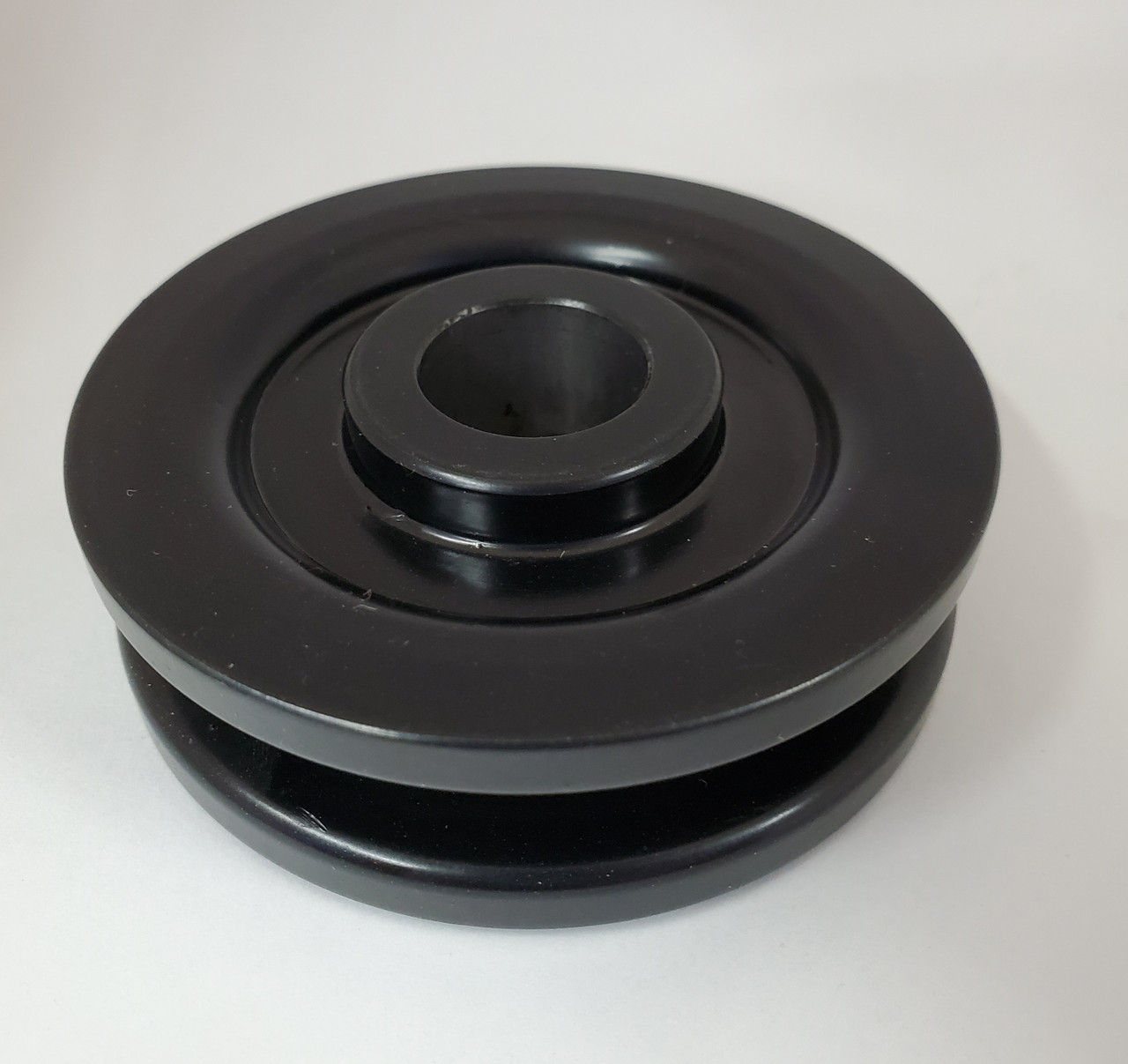

  • 6" Single Painted Cable/Rope Sheave 2937 0600
  • 6" Single Painted Cable/Rope Sheave 2937 0600
  • 6" Single Painted Cable/Rope Sheave 2937 0600
  • 6" Single Painted Cable/Rope Sheave 2937 0600

    • 6" Single Painted Cable/Rope Sheave 2937 0600

    Vanguard

    $48.92
    (No reviews yet) Write a Review
    SKU:
    VAN 2937 0600
    Weight:
    6.00 LBS
    Width:
    8.00 (in)
    Height:
    8.00 (in)
    Depth:
    3.00 (in)
    Alternate numbers:
    Jet 133106
    Diameter (A):
    6"
    Bore size (B):
    1-3/8"
    Maximum cable/rope diameter (G):
    5/8"
    Overall width (D):
    1-1/2"

    Product Description

  • Machined from C-1045 steel
  • Alternate bore sizes can be achieved by installing self-lubricated bronze bushings
  • There is no established load rating for these sheaves; the working load limit (WLL) depends on the pulleys onto which the sheaves are to be installed

    adobepdficon.png Vanguard Catalog

    • Product Videos

    Custom Field

    Alternate numbers Jet 133106
    Diameter (A) 6"
    Bore size (B) 1-3/8"
    Maximum cable/rope diameter (G) 5/8"
    Overall width (D) 1-1/2"
