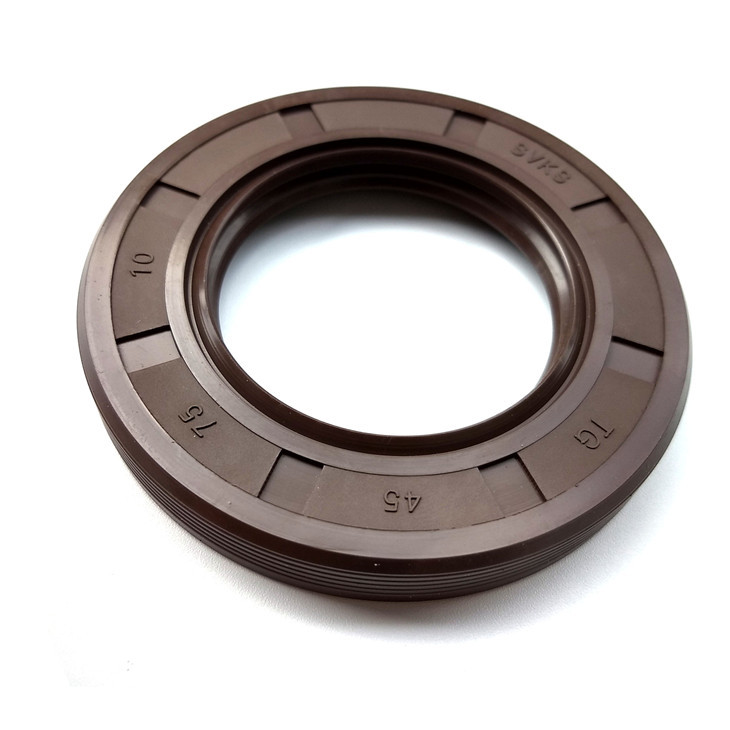

Product Description

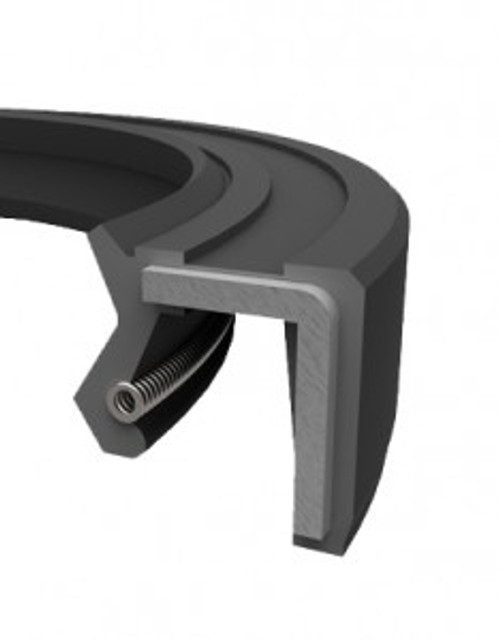

- Double lip, spring-loaded design
- Provides lubricant retention from the spring loaded primary lip and light dirt exclusion from the secondary lip
- Rubber cover over metallic core for an excellent combination of sealing ability and corrosion resistance
- Most economical general purpose seal type
- The rubber elastomer outer covering tolerates thermal expansion as well as roughness in the housing bore
- Because of the rubberized covering on the seal, there will be no fretting/galvanic corrosion of the metal bore that the seal is pressed into
- This seal type qualifies for sealing gaseous or liquid media
- Typical applications: engines, drive axle transmissions, pumps, electric motors and speed reducers
- Competitors equivalent suffixes: TC, AS, BASL, WAS, DGS, CC, HMSA7, Type 32, Model 94, BAUSLX2
DMR Sealing Products
Product Videos
Custom Field
Inner diameter 50mm
Outer diameter 80mm
Width 10mm
Case material Rubberized metal
Lip material Viton
Seal type Double lip
Spring retained Yes
Measurement Metric
