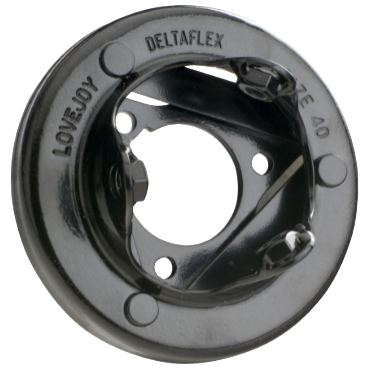

  • 50HT Series Lovejoy® Deltaflex® Inner Flange Assembly 50HT-DLT INNER FLNG ASSY-W/HDWR
  • 50HT Series Lovejoy® Deltaflex® Inner Flange Assembly 50HT-DLT INNER FLNG ASSY-W/HDWR
  • 50HT Series Lovejoy® Deltaflex® Inner Flange Assembly 50HT-DLT INNER FLNG ASSY-W/HDWR
  • 50HT Series Lovejoy® Deltaflex® Inner Flange Assembly 50HT-DLT INNER FLNG ASSY-W/HDWR
  • 50HT Series Lovejoy® Deltaflex® Inner Flange Assembly 50HT-DLT INNER FLNG ASSY-W/HDWR
  • 50HT Series Lovejoy® Deltaflex® Inner Flange Assembly 50HT-DLT INNER FLNG ASSY-W/HDWR
  • 50HT Series Lovejoy® Deltaflex® Inner Flange Assembly 50HT-DLT INNER FLNG ASSY-W/HDWR
  • 50HT Series Lovejoy® Deltaflex® Inner Flange Assembly 50HT-DLT INNER FLNG ASSY-W/HDWR
  • 50HT Series Lovejoy® Deltaflex® Inner Flange Assembly 50HT-DLT INNER FLNG ASSY-W/HDWR
  • 50HT Series Lovejoy® Deltaflex® Inner Flange Assembly 50HT-DLT INNER FLNG ASSY-W/HDWR
  • 50HT Series Lovejoy® Deltaflex® Inner Flange Assembly 50HT-DLT INNER FLNG ASSY-W/HDWR
  • 50HT Series Lovejoy® Deltaflex® Inner Flange Assembly 50HT-DLT INNER FLNG ASSY-W/HDWR

    • 50HT Series Lovejoy® Deltaflex® Inner Flange Assembly 50HT-DLT INNER FLNG ASSY-W/HDWR

    Timken

    $796.08
    (No reviews yet) Write a Review
    SKU:
    TIM 50HT-DLT INNER FLNG ASSY-W/HDWR
    UPC:
    UPC 0685144390530
    Weight:
    2.13 LBS
    Series:
    50HT
    Coupling type:
    Deltaflex coupler
    Adding to cart… category.add_cart_announcement

    Product Description

  • The patented Deltaflex series of couplings offer maximum misalignment capabilities with negligible reactionary load, for longer equipment life.
  • This all-metal flex-link coupling requires no lubrication or other maintenance.
  • Standard (Type 1, 2, or 2A) Deltaflex coupling are comprised of two hubs, an inner flange (with hardware), and an outer flange.
  • Spacer (Type 3 & 4) Deltaflex coupling are comprised of two hubs, two spacer flanges (with hardware), and a drop out spacer.
  • Unlike Delta hubs, Round hubs are available in stainless steel (SS).
  • Round hubs can also accommodate a larger max bore, but must always be mounted externally (no internal Type 1 mounting).
  • Standard Round hubs come with two set screws at 120°.

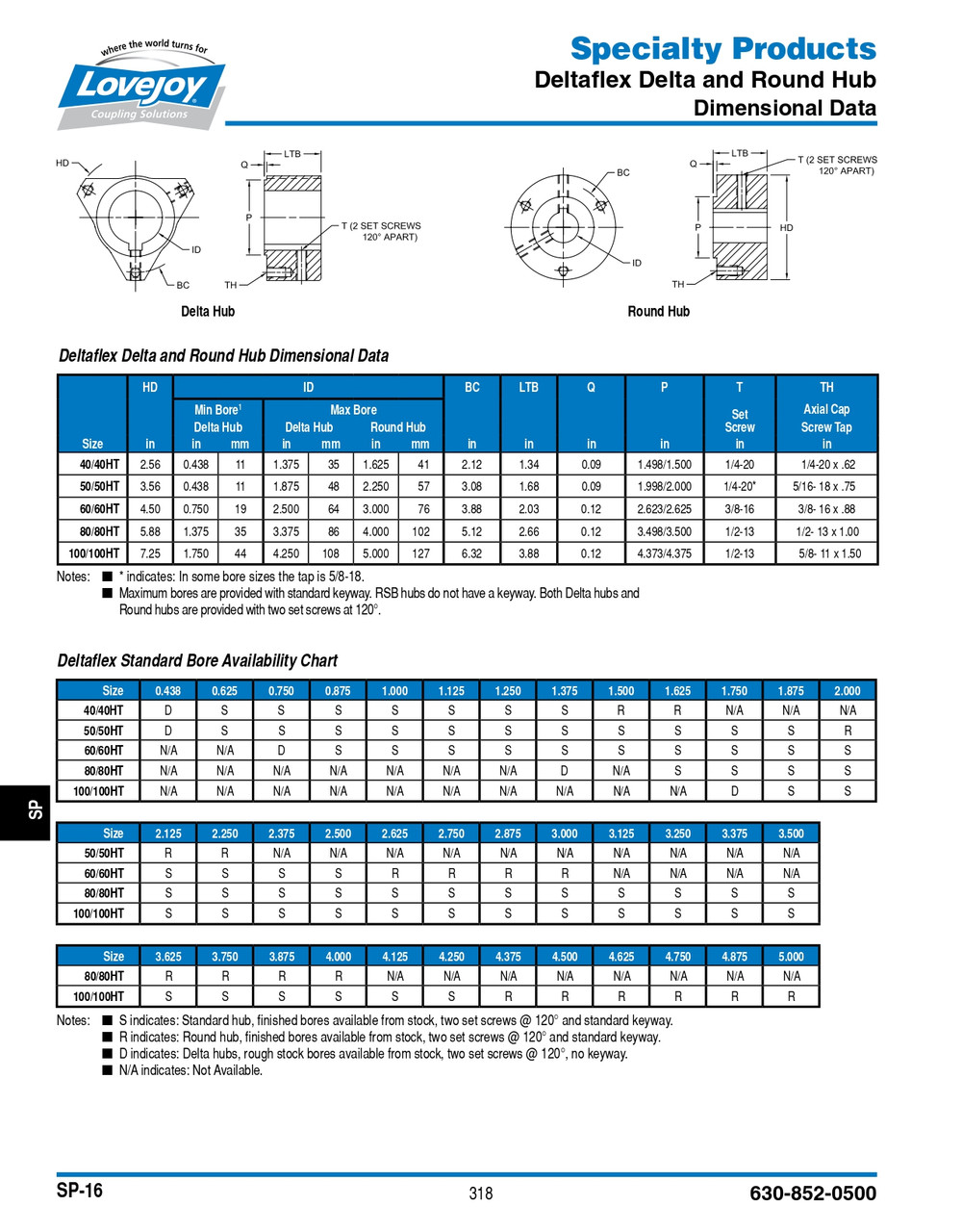

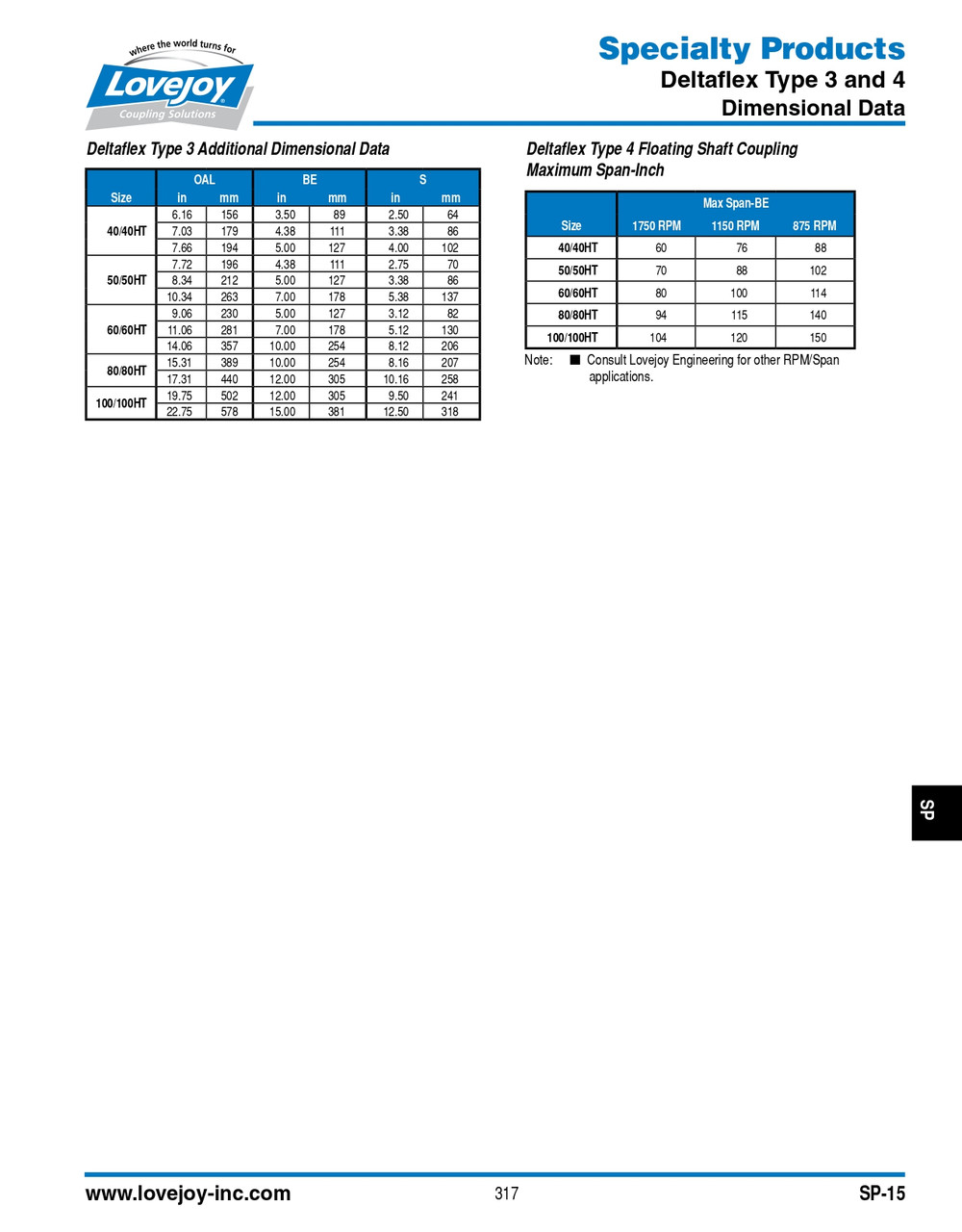

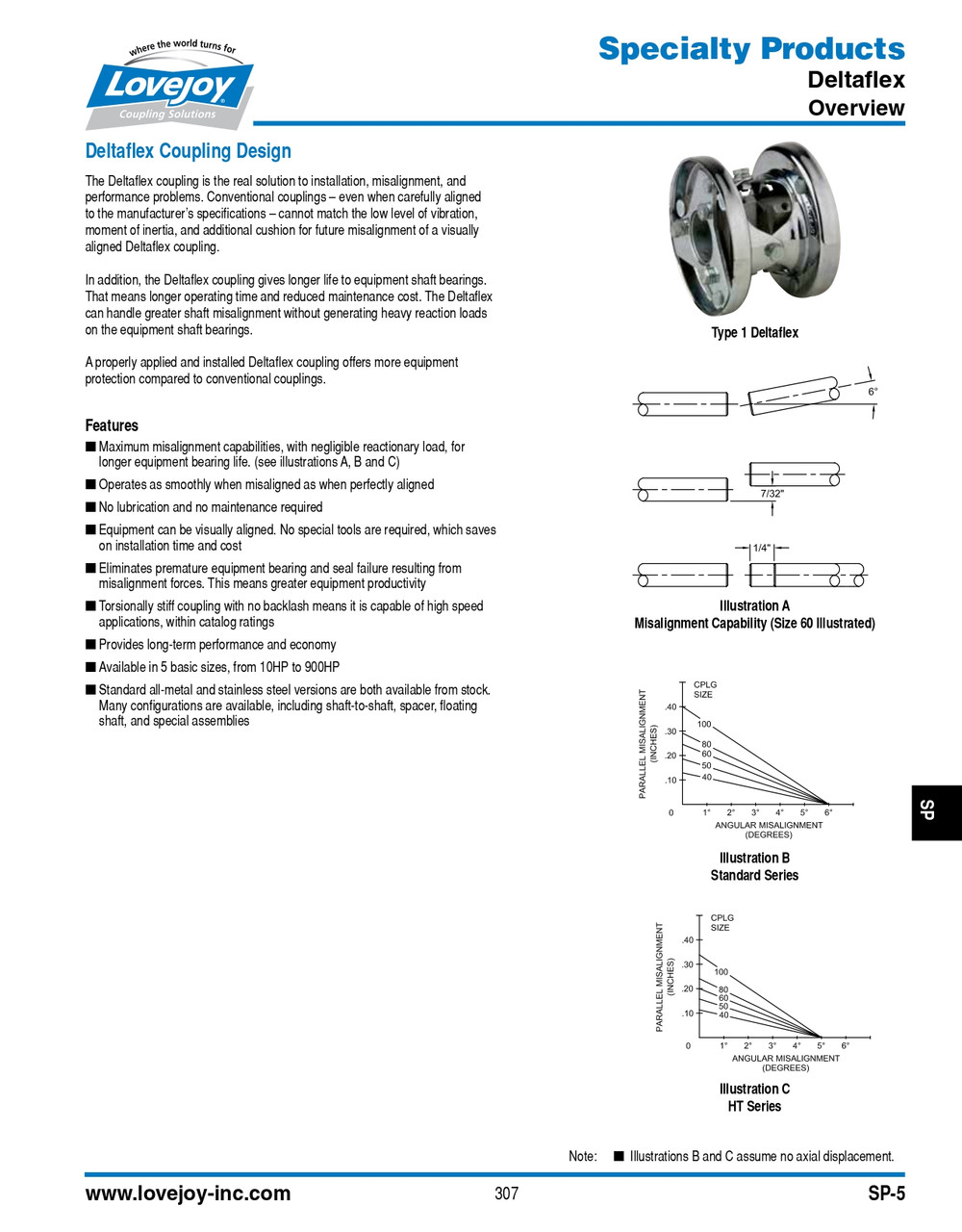

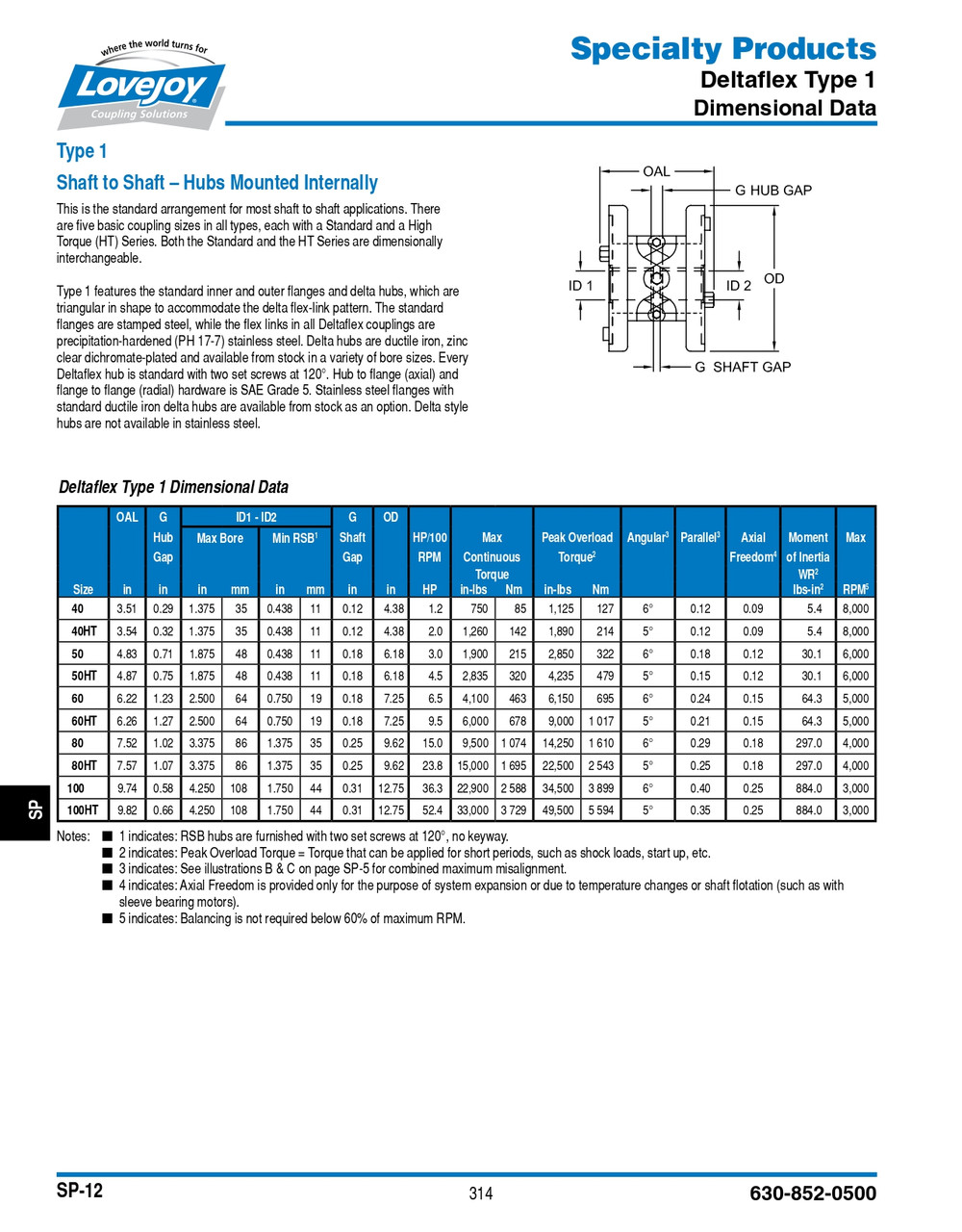

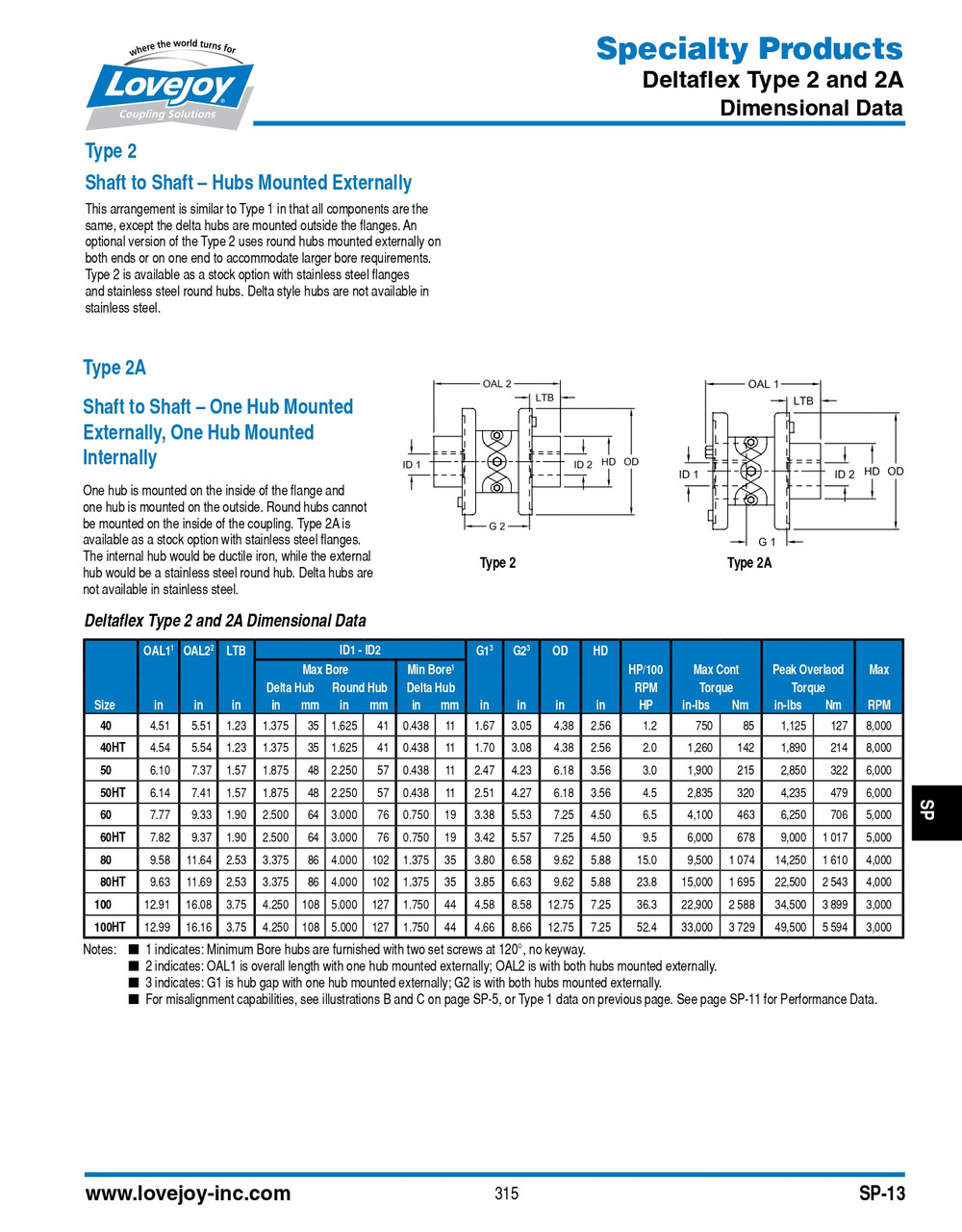

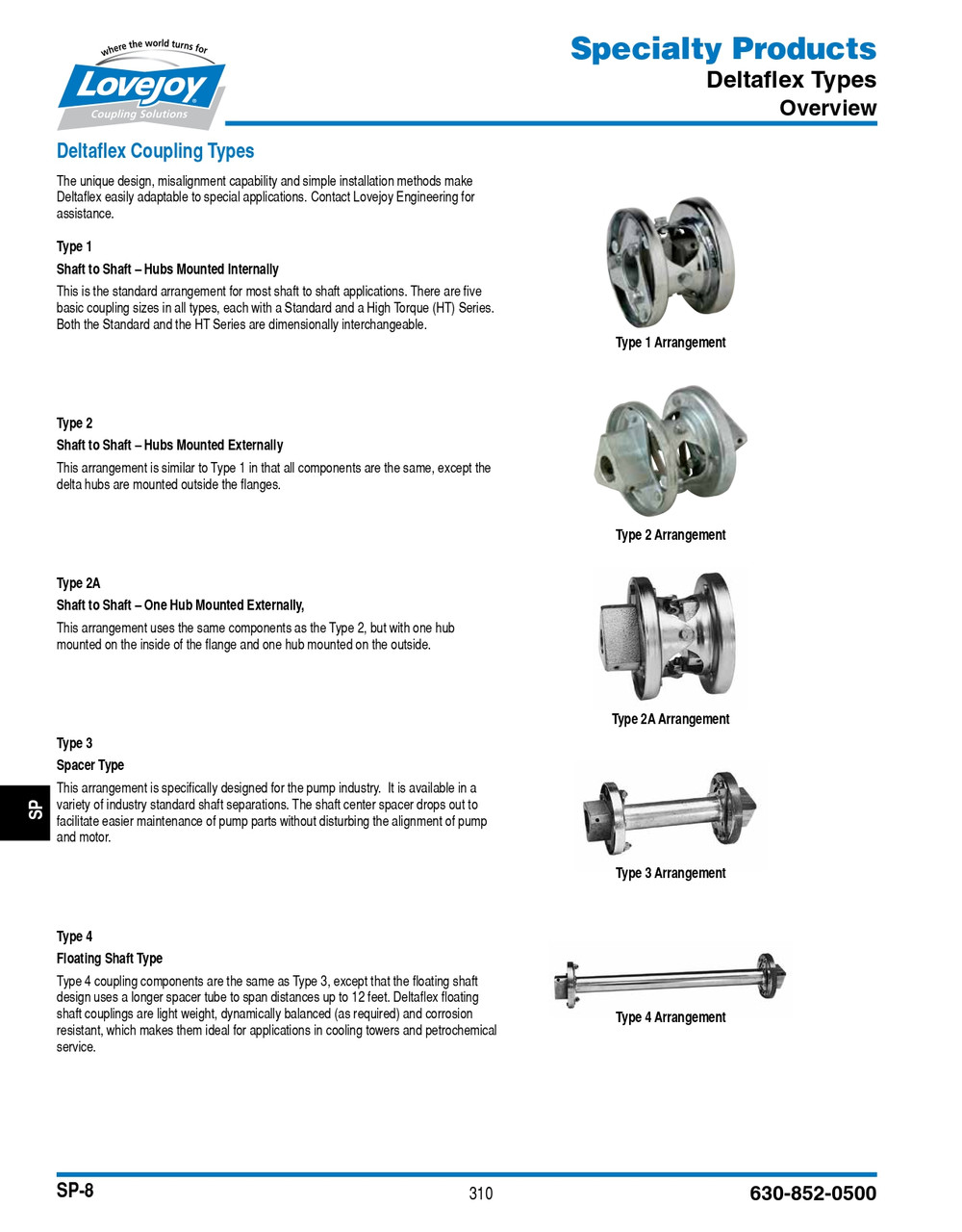

    adobepdficon.png Timken Lovejoy Master Catalog

    adobepdficon.png Deltaflex Coupling Installation Guide

    • Product Videos

    Custom Field

    Series 50HT
    Coupling type Deltaflex coupler
