  • 5/8 x 5/8" Shaft Lovejoy® ADB 6 Double Beam Clamp Coupling ADB6-BEAM CP-5/8X5/8
  • 5/8 x 5/8" Shaft Lovejoy® ADB 6 Double Beam Clamp Coupling ADB6-BEAM CP-5/8X5/8
  • 5/8 x 5/8" Shaft Lovejoy® ADB 6 Double Beam Clamp Coupling ADB6-BEAM CP-5/8X5/8
  • 5/8 x 5/8" Shaft Lovejoy® ADB 6 Double Beam Clamp Coupling ADB6-BEAM CP-5/8X5/8

    • 5/8 x 5/8" Shaft Lovejoy® ADB 6 Double Beam Clamp Coupling ADB6-BEAM CP-5/8X5/8

    Timken

    $715.86
    (No reviews yet) Write a Review
    SKU:
    TIM ADB6-BEAM CP-5/8X5/8
    UPC:
    UPC 0685144768506
    Weight:
    0.19 LBS
    Series:
    ADB 6
    Shaft diameter:
    5/8 x 5/8"
    Material:
    Aluminum
    Keyway size:
    No keyway
    Coupling type:
    Double beam coupler
    Adding to cart… category.add_cart_announcement

    Product Description

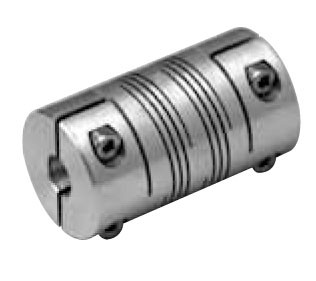

  • The ADB (Aluminum Double Beam) Series coupling enhances the beam coupling options available from Lovejoy Inc. The longer overall length allows the ADB series to span longer BSE (between shaft end) measurements.
  • The aluminum material used in its construction keeps the coupling's weight low. The ADB design offers two flex points allowing for greater angular misalignment, up to 7°. This design also allows for up to .024 inches of parallel misalignment. The torque capacity ADB series is more than double the range of the single beam designs, with the largest size having a torque capacity of 88 in-lbs.
  • Zero backlash design
  • Simple one piece assembly
  • Aluminum material
  • Largest amount of angular misalignment capacity
  • Nominal torque, torsional stiffness, weight and moment of inertia are based on minimum bore size.

  • Timken’s Quick Flex® Elastomeric Coupling Configurator helps you quickly size Quick Flex coupling solutions for common applications.
  • By entering motor power (HP or kW), speed (rpm), and service factors, the configurator presents available Quick Flex coupling options, supporting faster selection and quoting.
  • Access the Quick Flex® Coupling Configurator to speed up your next coupling selection.

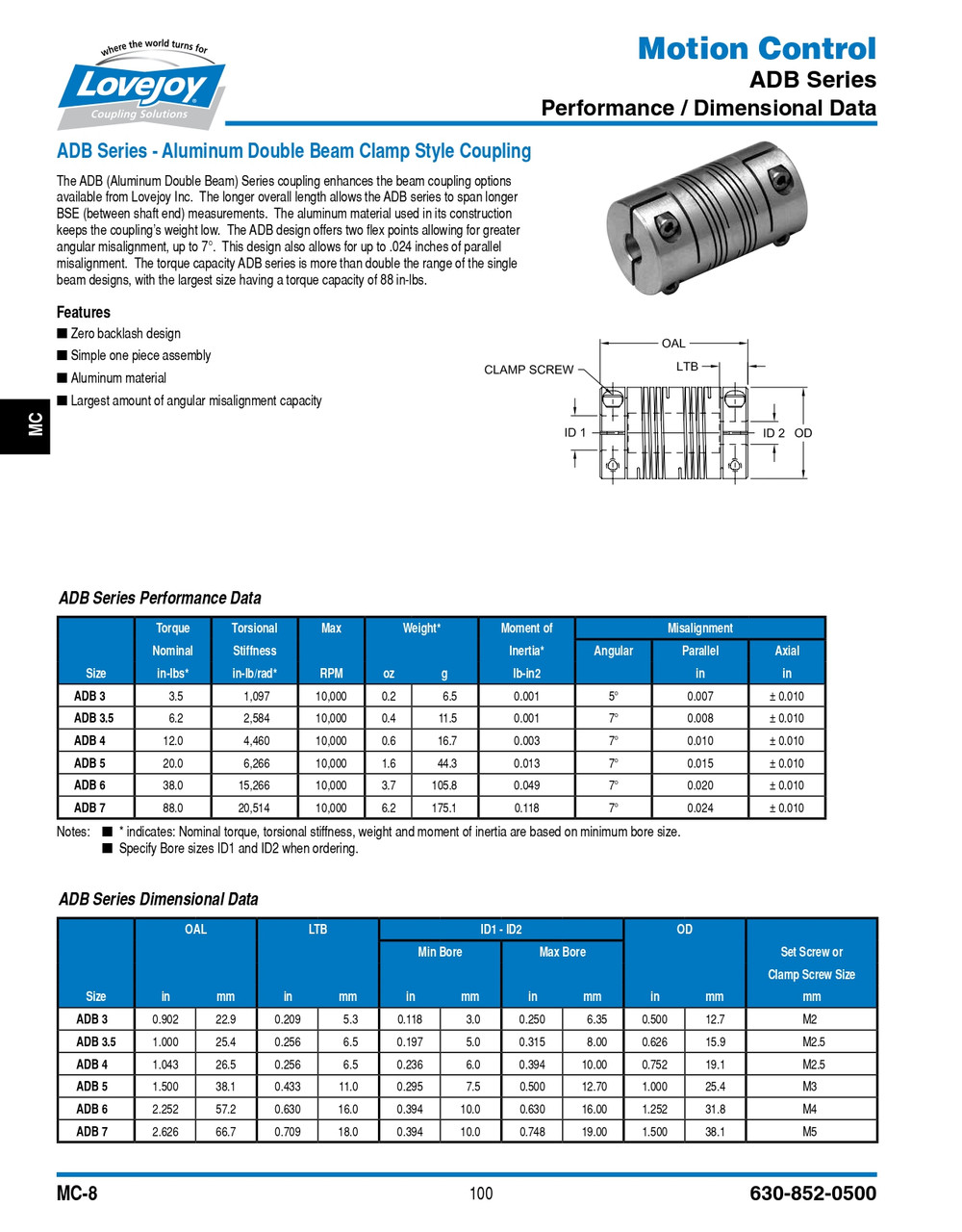

    adobepdficon.png Timken Lovejoy Master Catalog

    • Product Videos

    Custom Field

    Series ADB 6
    Shaft diameter 5/8 x 5/8"
    Material Aluminum
    Keyway size No keyway
    Coupling type Double beam coupler
