5/8" Double Sided Hexagon Belt BB172

Name: 5/8" Double Sided Hexagon Belt BB172
Brand: Jason Industrial
SKU: JAS BB172
Price: 104.86 CAD
Availability: InStock

Jason Industrial

$104.86

(No reviews yet) Write a Review

SKU:: JAS BB172
Weight:: 2.10 LBS
Oil and heat resistant:: Yes
Material:: NR/SBR rubber
Static dissipating:: Yes
Construction:: Polyester cord backing
Features:: Unimatch® system
Applications:: Predominantly used in lawn & garden, agriculture, textile industry equipment

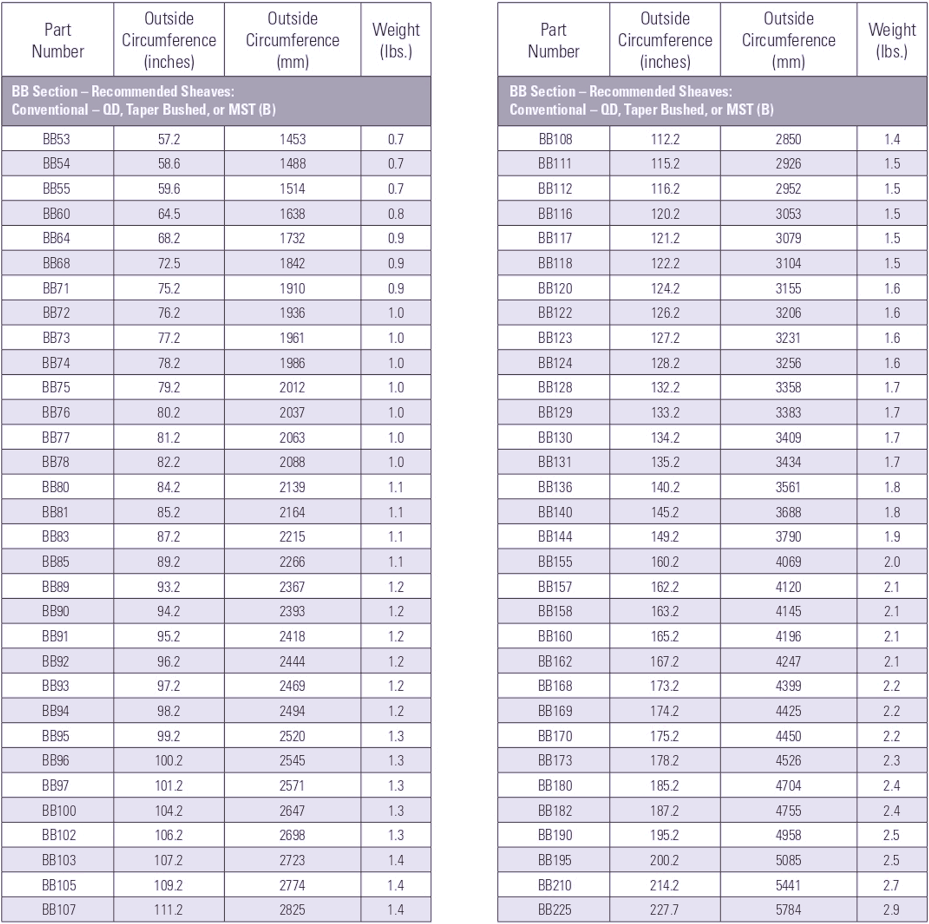

Note:: The outside diameter (O.D.) Of "BB" belts is 3" longer than the part number would indicate (i.e. BB60 = 63" O.D.)

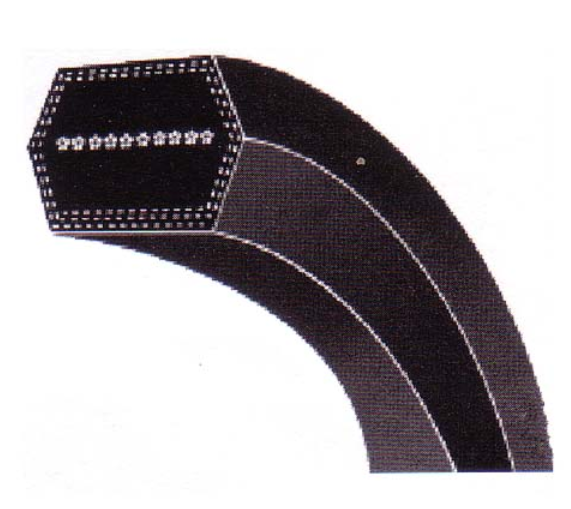

BB section double V-Belt (21/32" wide, 17/32" thick)

Specifically designed for serpentine and reversing drives

Double V-Belts transmit power from both sides of the belt

Polyester cords and a cotton/polyester cover provide maximum strength and length stability with minimum stretch

Please click this link for a convenient V-Belt and pulley calculator

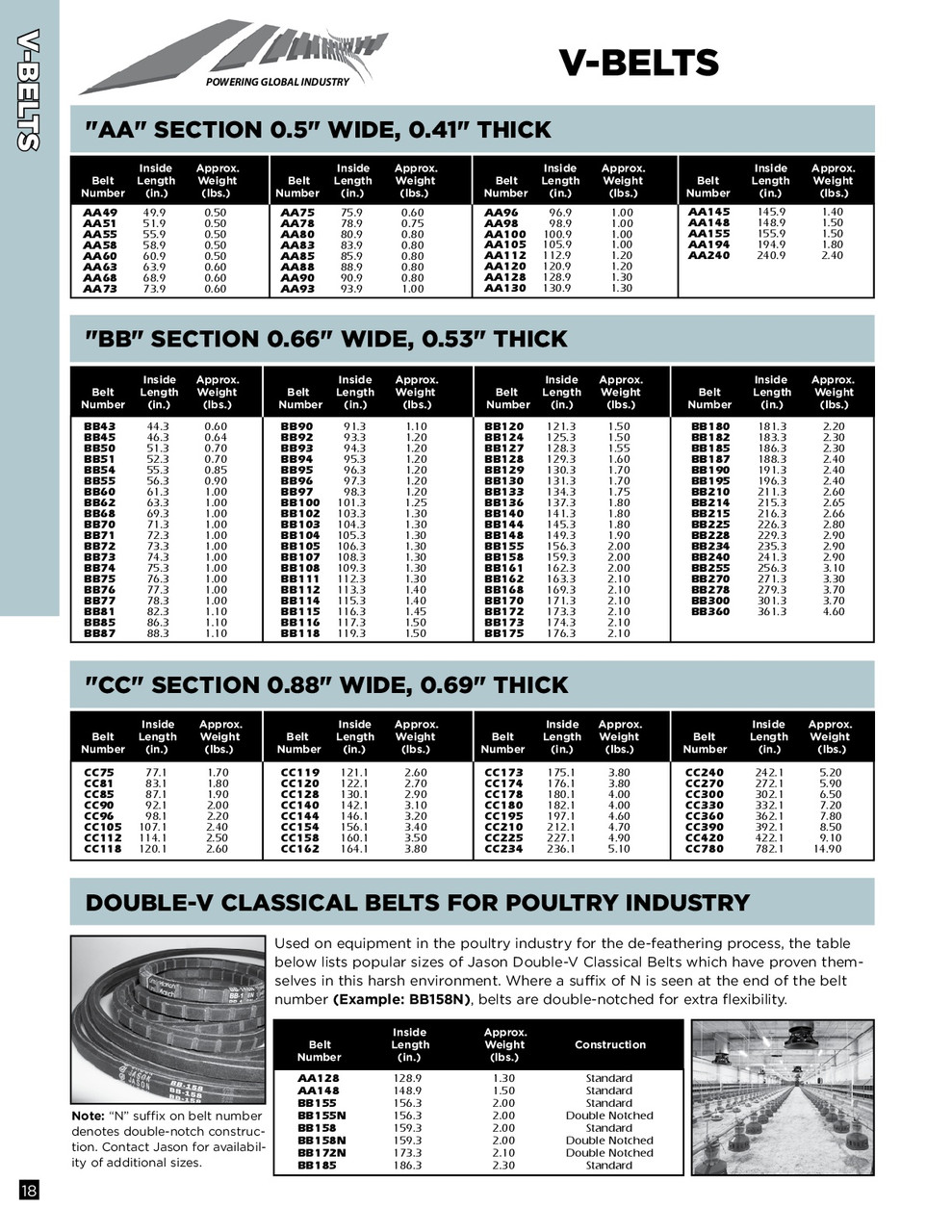

Jason Power Transmission Catalog

Oil and heat resistant Yes

Material NR/SBR rubber

Static dissipating Yes

Construction Polyester cord backing

Features Unimatch® system

Applications Predominantly used in lawn & garden, agriculture, textile industry equipment

Note The outside diameter (O.D.) Of "BB" belts is 3" longer than the part number would indicate (i.e. BB60 = 63" O.D.)
