Note: Belts currently listed are single rib only. If you require a banded, multi-rib molded belt, please inquire for pricing and availability

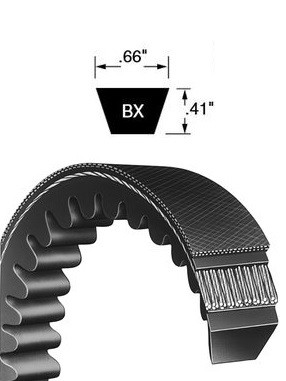

BX section cogged V-Belt (21/32" top width, 13/32" thick)

The raw edge belts have greater power capacity than the wrapped construction found on the "ABC" series belts

they are also better in oily environments due to their "grippy" side walls

Please click this link for a convenient V-Belt and pulley calculator

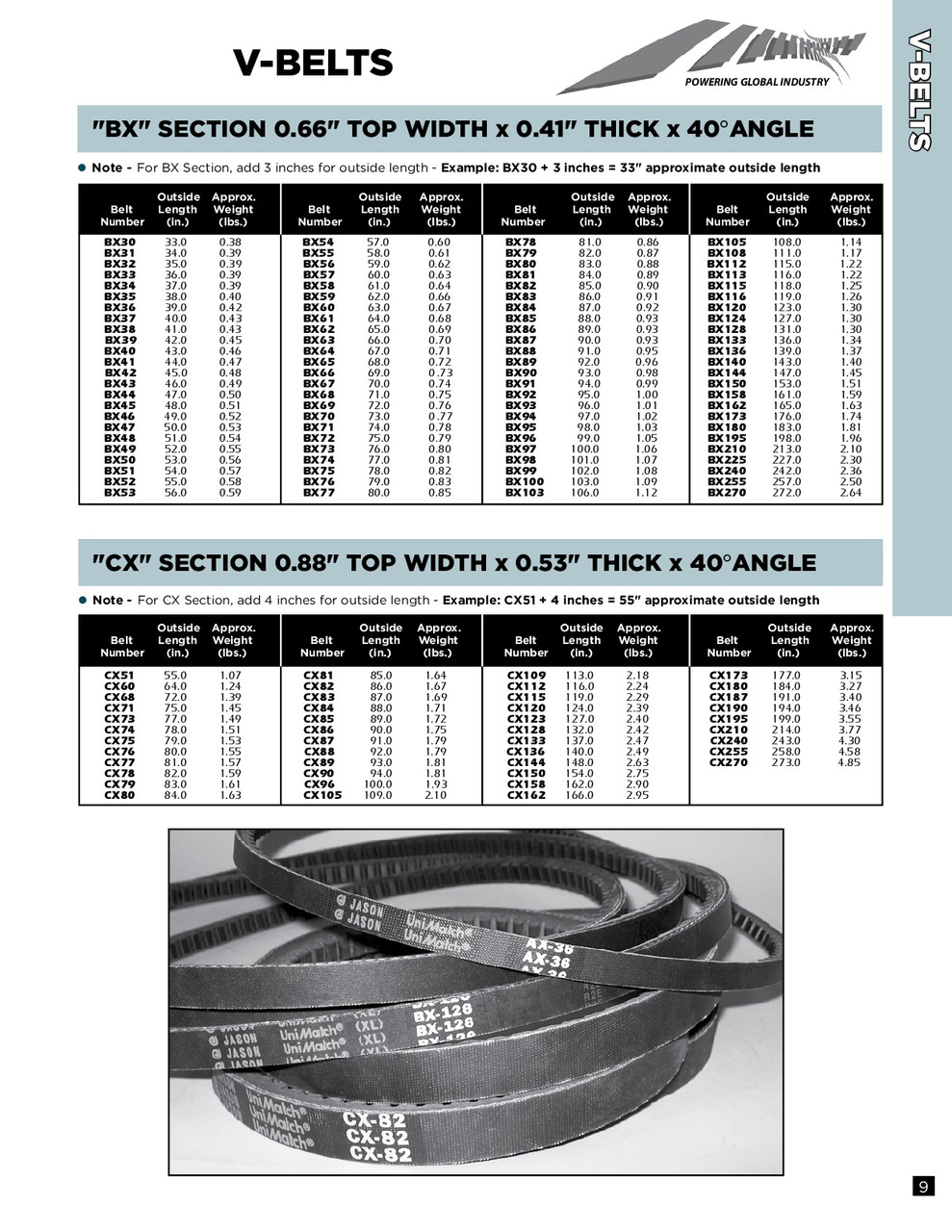

Jason Power Transmission Catalog

Oil and heat resistant Yes

Material Chloroprene rubber

Construction Polyester cord backing

Features Unimatch® system

Applications Predominantly used in industry, agriculture, lawn & garden, and HVAC

Note The outside diameter (O.D.) of "BX" belts is 3" longer than the part number would indicate (i.e. BX47 = 50.0" O.D.)

Write a Review

5/8" Cogged Heavy Duty V-Belt BX57

Jason Industrial
