  • 5-30 GPM M30 Series Modular Mechanical Fuel Meter 165100-02
  • 5-30 GPM M30 Series Modular Mechanical Fuel Meter 165100-02
  • 5-30 GPM M30 Series Modular Mechanical Fuel Meter 165100-02
  • 5-30 GPM M30 Series Modular Mechanical Fuel Meter 165100-02
  • 5-30 GPM M30 Series Modular Mechanical Fuel Meter 165100-02

    • 5-30 GPM M30 Series Modular Mechanical Fuel Meter 165100-02

    GPI

    $456.56
    (No reviews yet) Write a Review
    SKU:
    GPI 165100-02
    UPC:
    UPC 031401007381
    Weight:
    0.00 LBS
    Compatible fluids:
    For use with Gasoline (up to 15% alcohol blends such as E15), diesel fuel (up to 20% biodiesel blends such as B20) and kerosene|AVGAS 100LL, Kerosene grade JET A
    Horsepower:
    3/4HP
    Inlet connection:
    1 in. FNPT
    Outlet connection:
    1 in. FNPT
    Pump housing material:
    Die-Cast Aluminum
    Adding to cart… category.add_cart_announcement

    Product Description

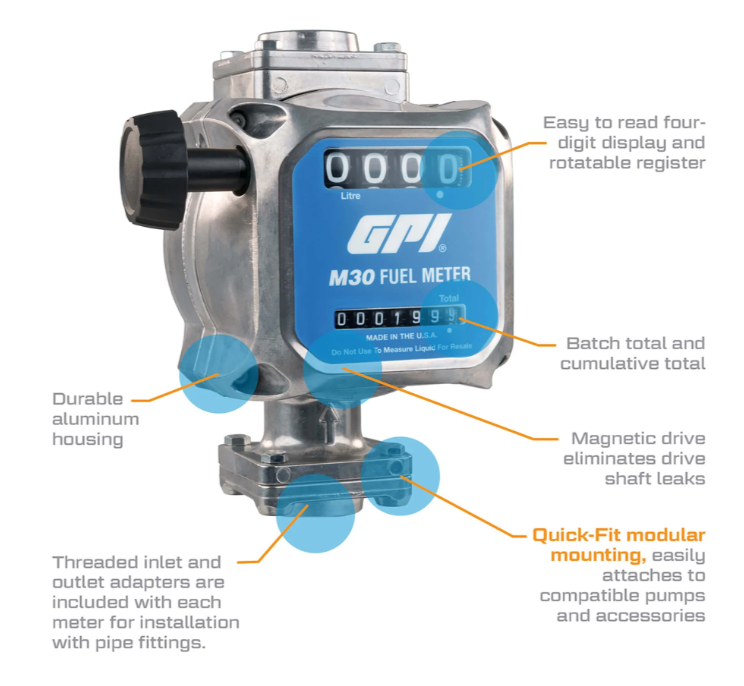

  • This quick-fit modular fuel meter is easy to install, easy to use, and easy to maintain.
  • It is designed for the field measurement of thin viscosity petroleum fuel only and intended for use with pump systems in the 5-30 GPM or 19 to 114 L/m flow range.
  • Using mechanical gears, this meter translates flow data from a nutating disk into calibrated units which are indicated on the face of the meter.
  • The M30 is equipped with both NPT and flange connections which allows it to be installed on all threaded pump outlets or modular GPI products.
  • Includes:The M30 mechanical fuel meter with litre register, 1 in NPT inlet/outlet, owners manual.

    adobepdficon.png GPI Catalog

    • Product Videos

    Custom Field

    Compatible fluids For use with Gasoline (up to 15% alcohol blends such as E15), diesel fuel (up to 20% biodiesel blends such as B20) and kerosene|AVGAS 100LL, Kerosene grade JET A
    Horsepower 3/4HP
    Inlet connection 1 in. FNPT
    Outlet connection 1 in. FNPT
    Pump housing material Die-Cast Aluminum
