5/16 x 5/16" Shaft Lovejoy® ADB 3.5 Double Beam Clamp Coupling ADB3.5-BEAM CP-5/16X5/16

Overview
Reviews

Product Description

The ADB (Aluminum Double Beam) Series coupling enhances the beam coupling options available from Lovejoy Inc. The longer overall length allows the ADB series to span longer BSE (between shaft end) measurements.

The aluminum material used in its construction keeps the coupling's weight low. The ADB design offers two flex points allowing for greater angular misalignment, up to 7°. This design also allows for up to .024 inches of parallel misalignment. The torque capacity ADB series is more than double the range of the single beam designs, with the largest size having a torque capacity of 88 in-lbs.

Zero backlash design

Simple one piece assembly

Aluminum material

Largest amount of angular misalignment capacity

Nominal torque, torsional stiffness, weight and moment of inertia are based on minimum bore size.

Timkens Quick Flex® Elastomeric Coupling Configurator helps you quickly size Quick Flex coupling solutions for common applications.

By entering motor power (HP or kW), speed (rpm), and service factors, the configurator presents available Quick Flex coupling options, supporting faster selection and quoting.

Access the Quick Flex® Coupling Configurator to speed up your next coupling selection.

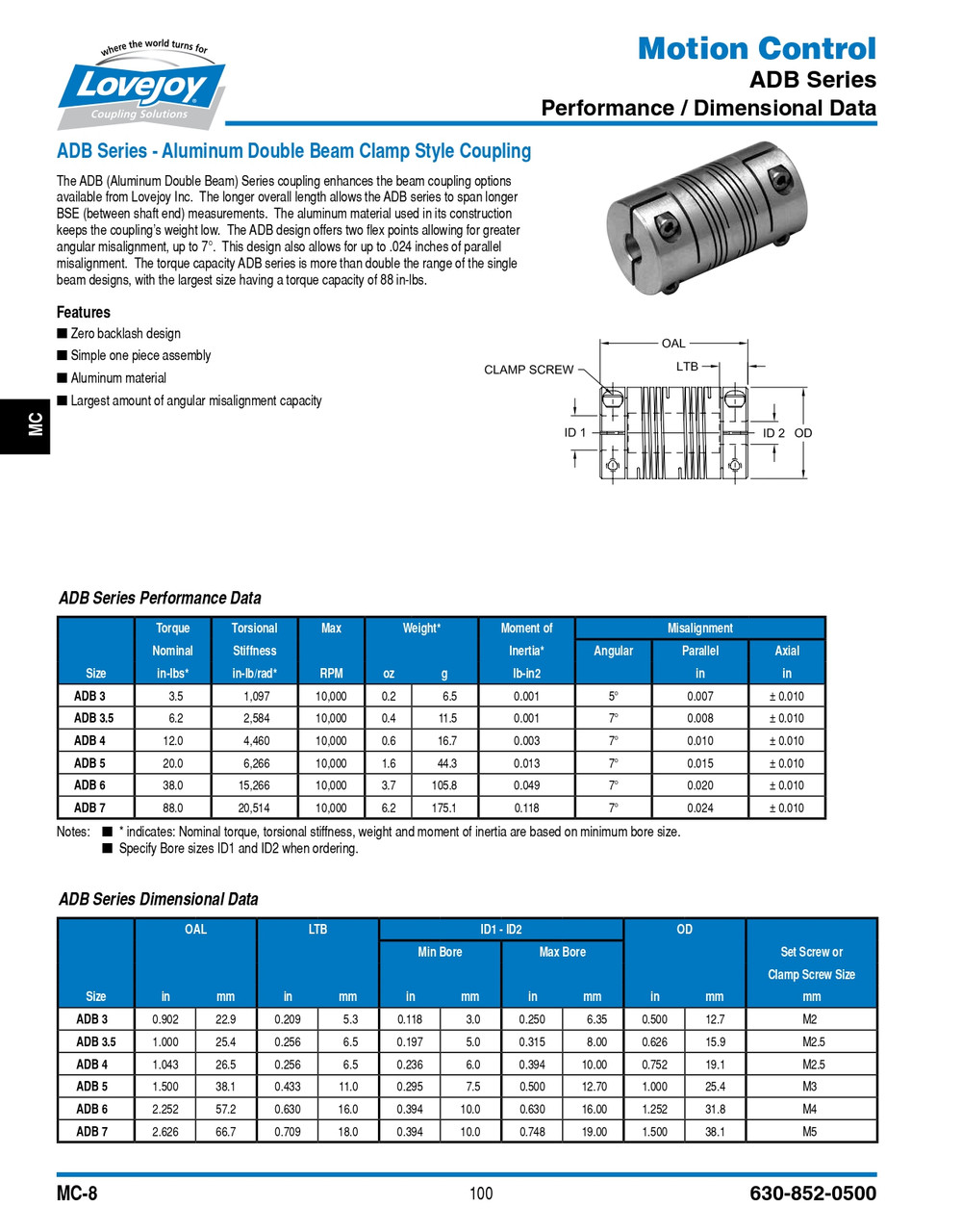

Timken Lovejoy Master Catalog

Product Videos

Custom Field

Series ADB 3.5

Shaft diameter 5/16 x 5/16"

Material Aluminum

Keyway size No keyway

Coupling type Double beam coupler
