  • 5.120" x .197" x 72" Round - Steel DOM Drive Shaft Tube ND120-30-5-72
  • 5.120" x .197" x 72" Round - Steel DOM Drive Shaft Tube ND120-30-5-72
  • 5.120" x .197" x 72" Round - Steel DOM Drive Shaft Tube ND120-30-5-72
  • 5.120" x .197" x 72" Round - Steel DOM Drive Shaft Tube ND120-30-5-72
  • 5.120" x .197" x 72" Round - Steel DOM Drive Shaft Tube ND120-30-5-72

    • 5.120" x .197" x 72" Round - Steel DOM Drive Shaft Tube ND120-30-5-72

    Neapco

    $909.03
    (No reviews yet) Write a Review
    SKU:
    NEA ND120-30-5-72
    UPC:
    UPC 083869379852
    Weight:
    62.34 LBS
    Spicer® equivalent:
    120-30-5-7300
    Country of origin:
    USA
    Adding to cart… category.add_cart_announcement

    Product Description

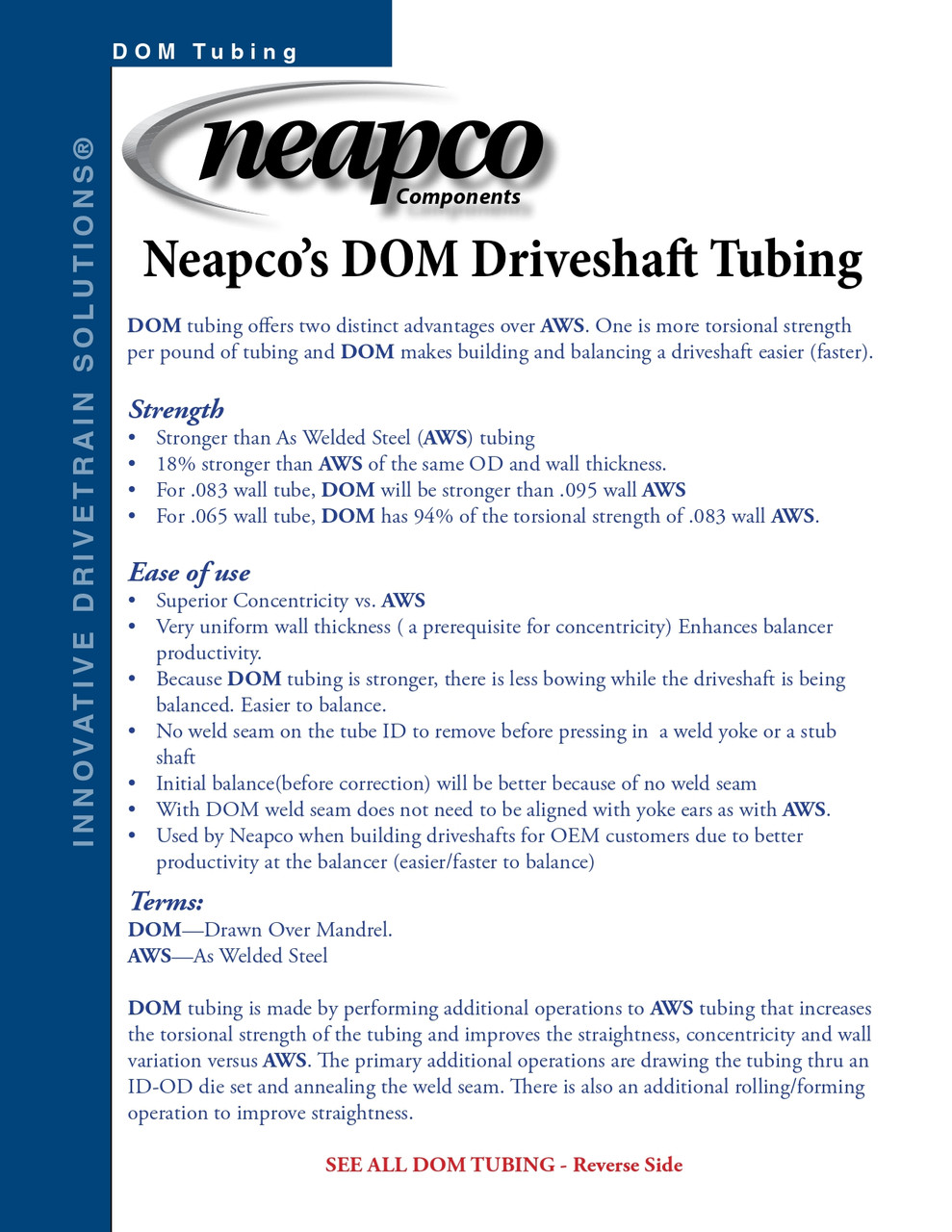

    Neapco’s "Drawn Over Mandrel" (DOM) driveshaft tubing offers two distinct advantages over AWS - More torsional strength per pound of tubing, as well, DOM makes building and balancing a driveshaft easier and faster.

  • Stronger than "As Welded Steel" (AWS ) tubing
  • 18% stronger than AWS when the same outer diameter and wall thickness is compared side by side
  • DOM .083" wall tube will be stronger than .095" wall AWS tube
  • DOM .065" wall tube has 94% of the torsional strength that AWS .083" wall tube provides
  • DOM tubing exhibits superior concentricity vs. AWS tubing
  • Very uniform wall thickness (a prerequisite for concentricity)
  • Because DOM tubing is stronger, there is less bowing while the driveshaft is being balanced
  • No weld seam to remove on the tubes inner diameter before pressing in a weld yoke or a stub shaft
  • Initial balance (before correction) will be better because of no weld seam
  • With DOM tubing, the weld seam does not need to be aligned with yoke ears as with AWS tubing
  • DOM tubing is used by Neapco when building driveshafts for OEM customers due to better productivity at the balancer

  • For an online PTO identification/selection tool, please click this link to access Neapco's online database


    adobepdficon.pngNeapco Driveline Components Catalog




    adobepdficon.pngNeapco Complete U-joint Catalog



    • Product Videos

    Custom Field

    Spicer® equivalent 120-30-5-7300
    Country of origin USA
