  • 45.00mm Metric Rubberized Single Lip Silicone Oil Seal 1012N
  • 45.00mm Metric Rubberized Single Lip Silicone Oil Seal 1012N
  • 45.00mm Metric Rubberized Single Lip Silicone Oil Seal 1012N
  • 45.00mm Metric Rubberized Single Lip Silicone Oil Seal 1012N
  • 45.00mm Metric Rubberized Single Lip Silicone Oil Seal 1012N

    • 45.00mm Metric Rubberized Single Lip Silicone Oil Seal 1012N

    National Oil Seals

    $9.65
    (No reviews yet) Write a Review
    SKU:
    NAT 1012N
    UPC:
    UPC 053893501253
    Weight:
    0.07 LBS
    Shaft size:
    45.00mm
    Housing bore:
    62.00mm
    Seal width:
    8.00mm
    Seal type & style:
    35 (Single lip)
    Lip material:
    H (Silicone)
    Case material:
    Rubberized metal
    Temperature range:
    -73° ~ 163°C (-100° ~ 325°F)
    Spring retained:
    Yes
    Seal series:
    1000
    Hardness:
    70 Durometer
    Denoted measurement:
    Metric
    Shown in catalog:
    Yes
    Adding to cart… category.add_cart_announcement

    Product Description

  • Silicone (Lip code: H) lip material has a wide temperature range in which it can operate and is typically selected for high to low temperature ranges as well as low friction applications.
  • The high lubricant absorbency of silicone minimizes friction and wear; however it has poor compatibility with oxidized oils, some extreme pressure additives and abrasive contaminants.
  • Silicone should not be used in dry running applications as the lip will easily tear and/or wear its surface down prematurely.

  • Rubber cover over a metallic core offers an excellent combination of sealing ability and corrosion resistance.
  • The rubber elastomer outer covering tolerates thermal expansion as well as roughness in the housing bore.
  • Because of the rubberized covering on the seal, there will be no fretting/galvanic corrosion of the metal bore that the seal is pressed into.

  • Please note that not all product images are representative of the item being shown but are similar in appearance. Please refer to the seals technical specifications sheet provided in the image carousel for absolute confirmation before ordering.

    Follow this link for access to Timken's interactive, multi-vehicle, bearing & seal application database.

    Follow this link to access Timken's National oil seal & competitor's interchange.

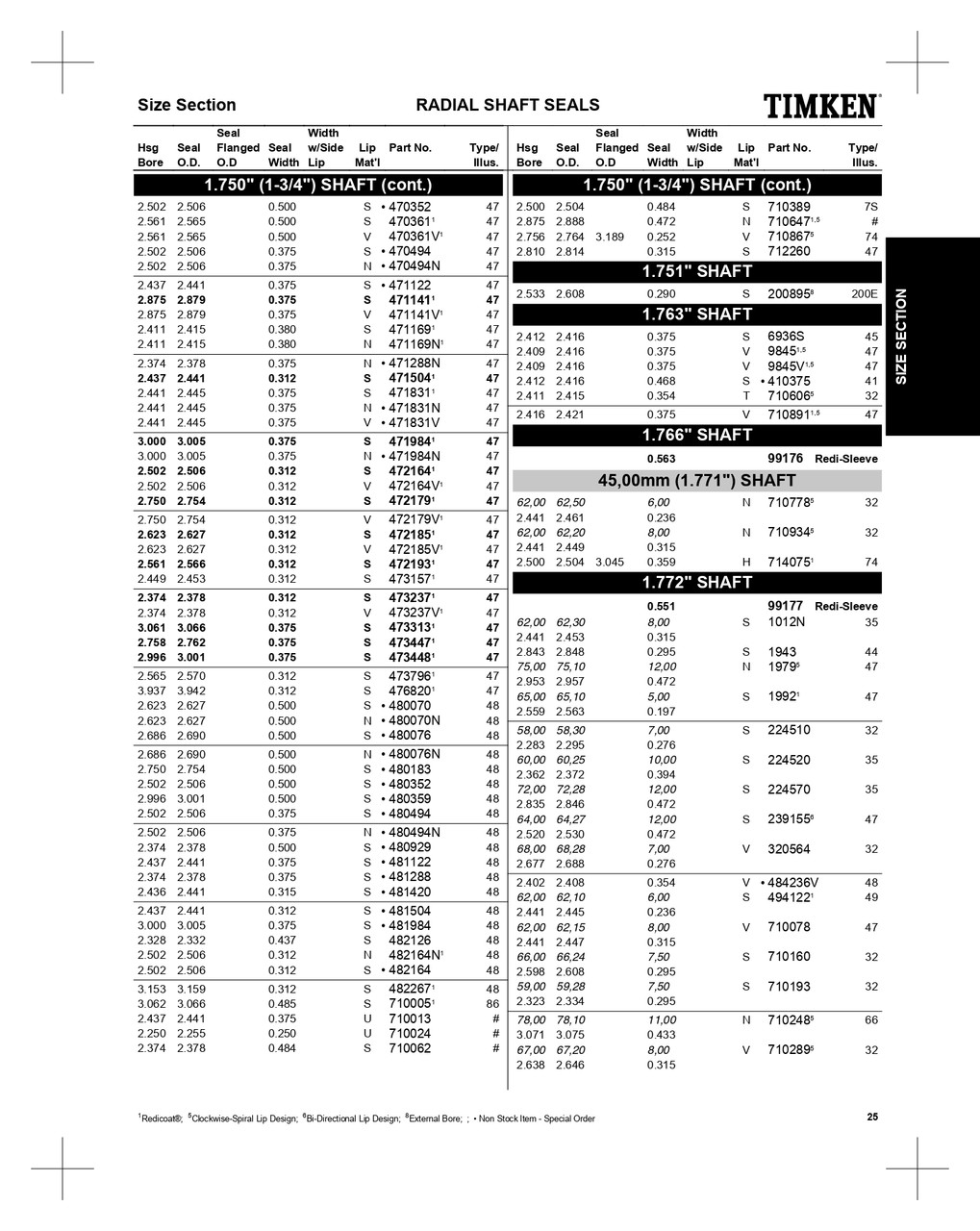

    adobepdficon.png Timken Metric Oil Seal Catalog

    adobepdficon.png National 7707 Inch Oil Seal Catalog & Interchange

    • Product Videos

    Custom Field

    Shaft size 45.00mm
    Housing bore 62.00mm
    Seal width 8.00mm
    Seal type & style 35 (Single lip)
    Lip material H (Silicone)
    Case material Rubberized metal
    Temperature range -73° ~ 163°C (-100° ~ 325°F)
    Spring retained Yes
    Seal series 1000
    Hardness 70 Durometer
    Denoted measurement Metric
    Shown in catalog Yes
