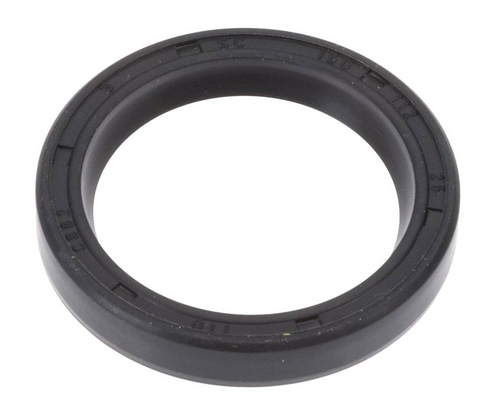

Product Description
- Single lip, spring-loaded design
- Rubber cover over metallic core for an excellent combination of sealing ability and corrosion resistance
- Most economical general purpose seal type
- The rubber elastomer outer covering tolerates thermal expansion as well as roughness in the housing bore
- Because of the rubberized covering on the seal, there will be no fretting/galvanic corrosion of the metal bore that the seal is pressed into
- With only one sealing lip, this seal can either retain lubricant or exclude contaminants but cannot do both simultaneously
- The nitrile seal offers good resistance to standard oils, greases, and normal fuels
- This material also provides good abrasion resistance
Follow this link for access to Timken's interactive, multi-vehicle, bearing & seal application database.
Follow this link to access Timken's National oil seal & competitor's interchange.
Timken Metric Oil Seal Catalog
National 7707 Inch Oil Seal Catalog & Interchange
Product Videos
Custom Field
Shaft size 42mm
Seal outer diameter 62mm
Seal width 8mm
Seal type & style RLS35 (single lip)
Lip material S (Nitrile NBR)
Hardness/Durometer 70
Spring retained Yes
Case material Rubberized metal
Maximum surface speed 12 m/s (2362 fpm)
Maximum pressure 0.3kg/cm² (4.267 psi)
Temperature range -20ºC ~ 120ºC (-4ºF ~ 248ºF)
Denoted measurement Metric
