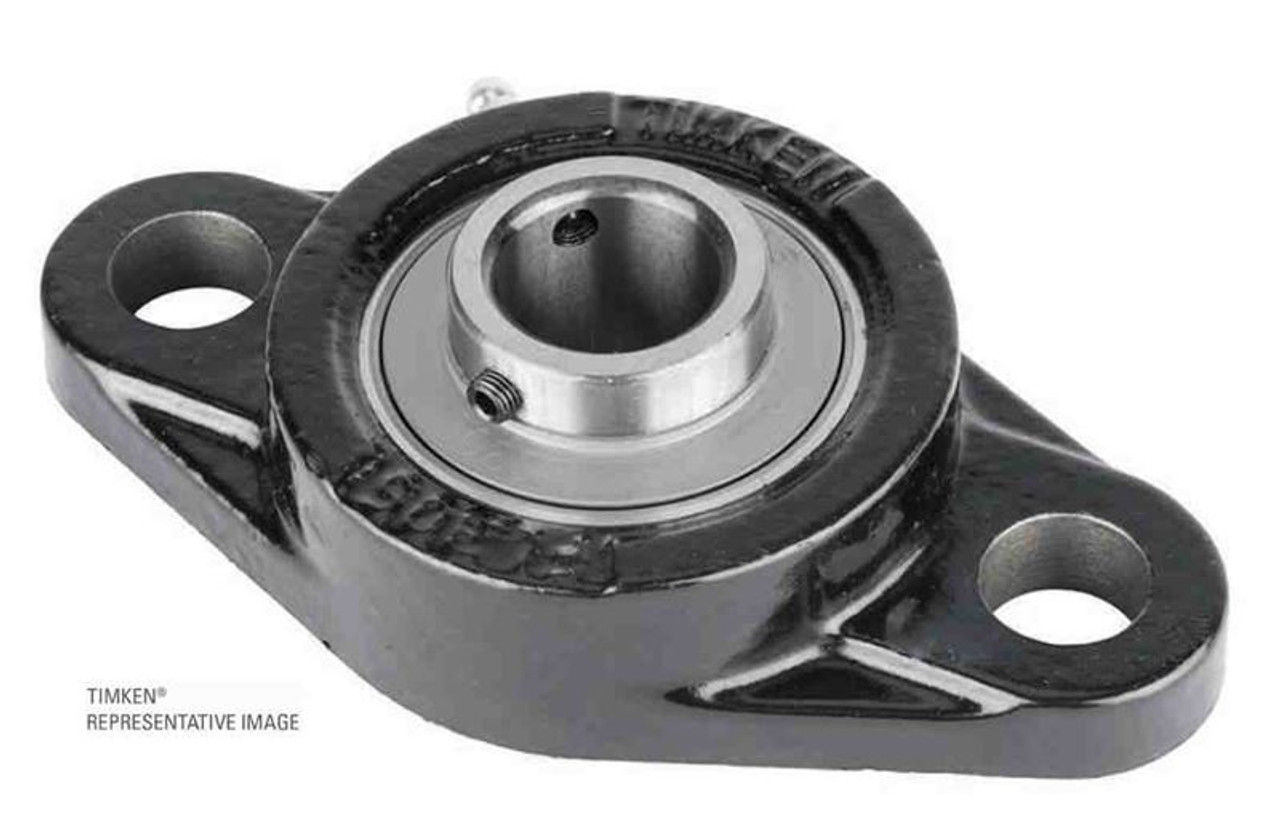

  • 40mm Standard Duty Set Screw Rhombus Flange Block Assembly UCFL208
  • 40mm Standard Duty Set Screw Rhombus Flange Block Assembly UCFL208
  • 40mm Standard Duty Set Screw Rhombus Flange Block Assembly UCFL208
  • 40mm Standard Duty Set Screw Rhombus Flange Block Assembly UCFL208
  • 40mm Standard Duty Set Screw Rhombus Flange Block Assembly UCFL208
  • 40mm Standard Duty Set Screw Rhombus Flange Block Assembly UCFL208
  • 40mm Standard Duty Set Screw Rhombus Flange Block Assembly UCFL208
  • 40mm Standard Duty Set Screw Rhombus Flange Block Assembly UCFL208
  • 40mm Standard Duty Set Screw Rhombus Flange Block Assembly UCFL208
  • 40mm Standard Duty Set Screw Rhombus Flange Block Assembly UCFL208
  • 40mm Standard Duty Set Screw Rhombus Flange Block Assembly UCFL208
  • 40mm Standard Duty Set Screw Rhombus Flange Block Assembly UCFL208
  • 40mm Standard Duty Set Screw Rhombus Flange Block Assembly UCFL208
  • 40mm Standard Duty Set Screw Rhombus Flange Block Assembly UCFL208
  • 40mm Standard Duty Set Screw Rhombus Flange Block Assembly UCFL208
  • 40mm Standard Duty Set Screw Rhombus Flange Block Assembly UCFL208
  • 40mm Standard Duty Set Screw Rhombus Flange Block Assembly UCFL208
  • 40mm Standard Duty Set Screw Rhombus Flange Block Assembly UCFL208

    • 40mm Standard Duty Set Screw Rhombus Flange Block Assembly UCFL208

    Timken

    $76.15
    (No reviews yet) Write a Review
    SKU:
    TIM UCFL208
    UPC:
    UPC 87796075351
    Weight:
    3.53 LBS
    Bearing Type:
    Deep groove self aligning ball bearing insert
    Shaft profile:
    Round
    Bearing material:
    Hardened steel
    Housing material:
    Cast iron
    Classification:
    Standard duty
    Locking device:
    Set screws
    Bearing series:
    UC
    Greasable:
    Yes
    Adding to cart… category.add_cart_announcement

    Product Description

  • Insert bearings are used in a wide spectrum of applications ranging from industrial, agricultural, food handling, manufacturing, and heavy vehicle maintenance.
  • These common insert bearigs, regardless their locking style, can be placed in many types of pillow blocks, 2-bolt, 3-bolt, and 4-bolt flanges, take-up units as well as stamped steel housings.
  • This series is primarily designed for applications where the mounting area is restricted.
  • Each unit comes assembled and ready for mounting, using bolts through the flange.

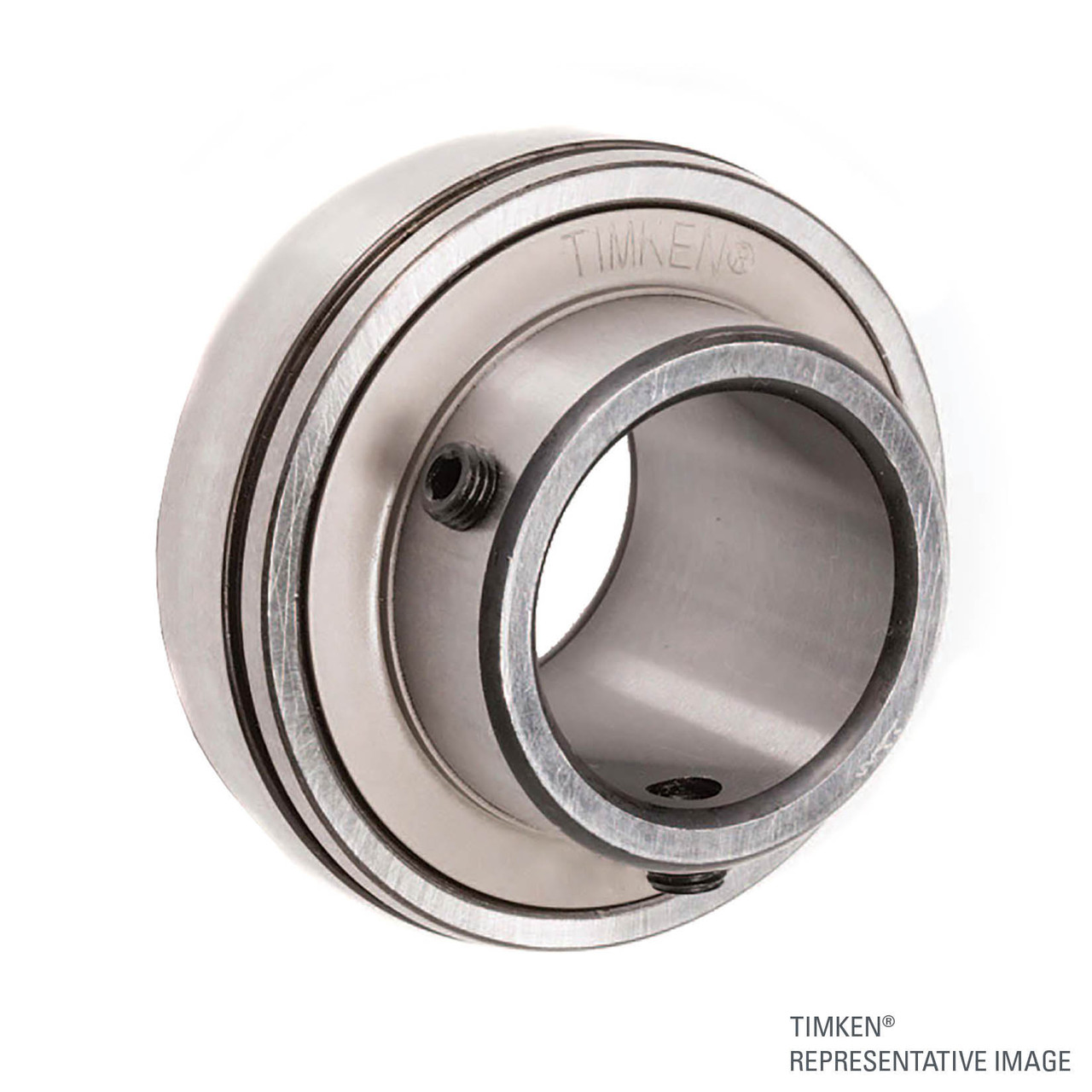

  • These units use wide inner ring ball bearings with self-aligning spherical outside diameters that compensate for shaft misalignment.
  • Timken UCFL series Mounted Bearings feature the Timken set screw locking (UC) bearing insert.
  • Bearing prelubricated and ready for immediate installation.
  • Grease fitting supplied for relubrication.
  • The bonded seal design is well-suited for applications involving wet or dirty environments.
  • Bolt-hole spacing dimensions and shaft center location are interchangeable with competitive units.

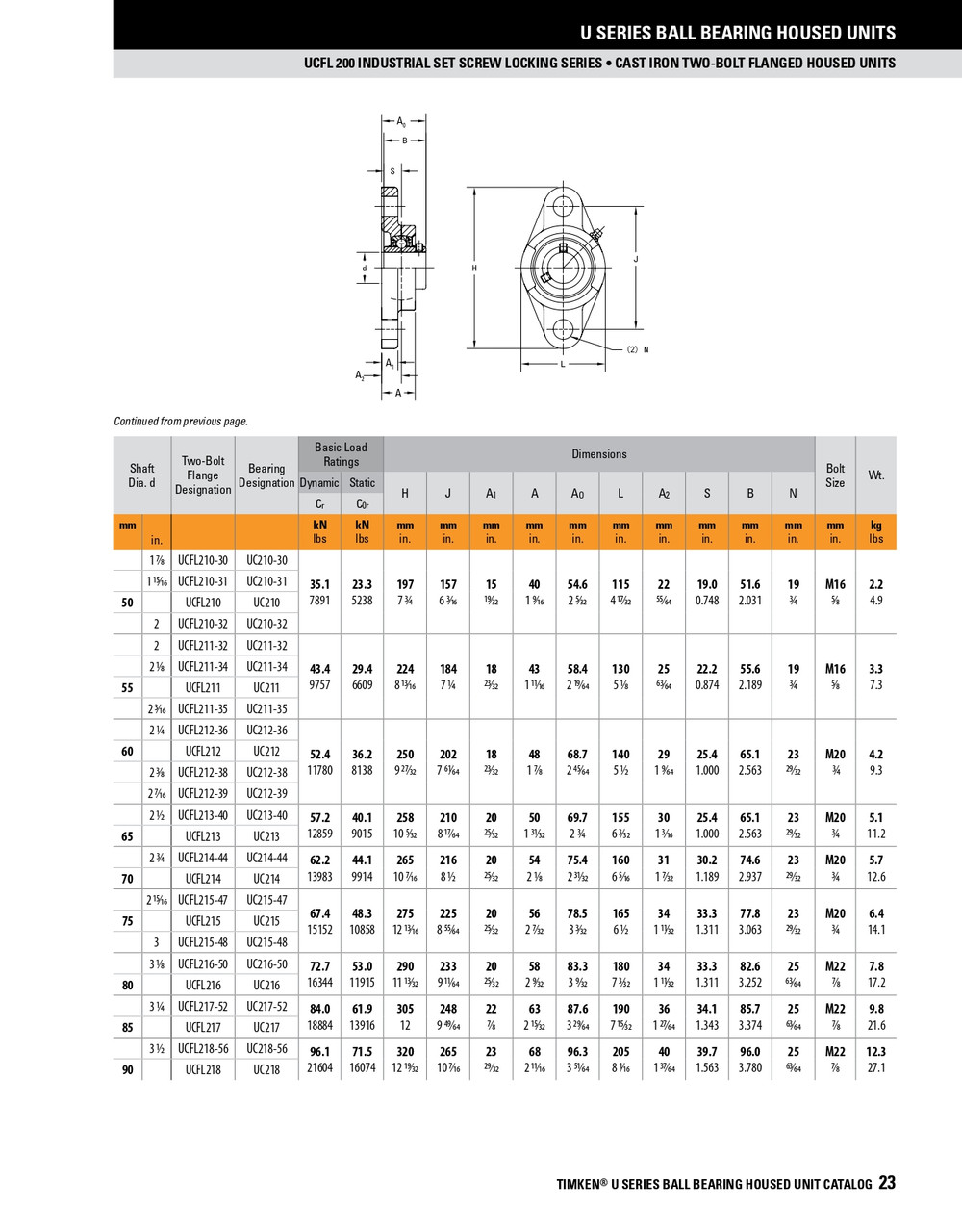

    adobepdficon.png Timken U Series Catalog

    • Product Videos

    Custom Field

    Bearing Type Deep groove self aligning ball bearing insert
    Shaft profile Round
    Bearing material Hardened steel
    Housing material Cast iron
    Classification Standard duty
    Locking device Set screws
    Bearing series UC
    Greasable Yes
