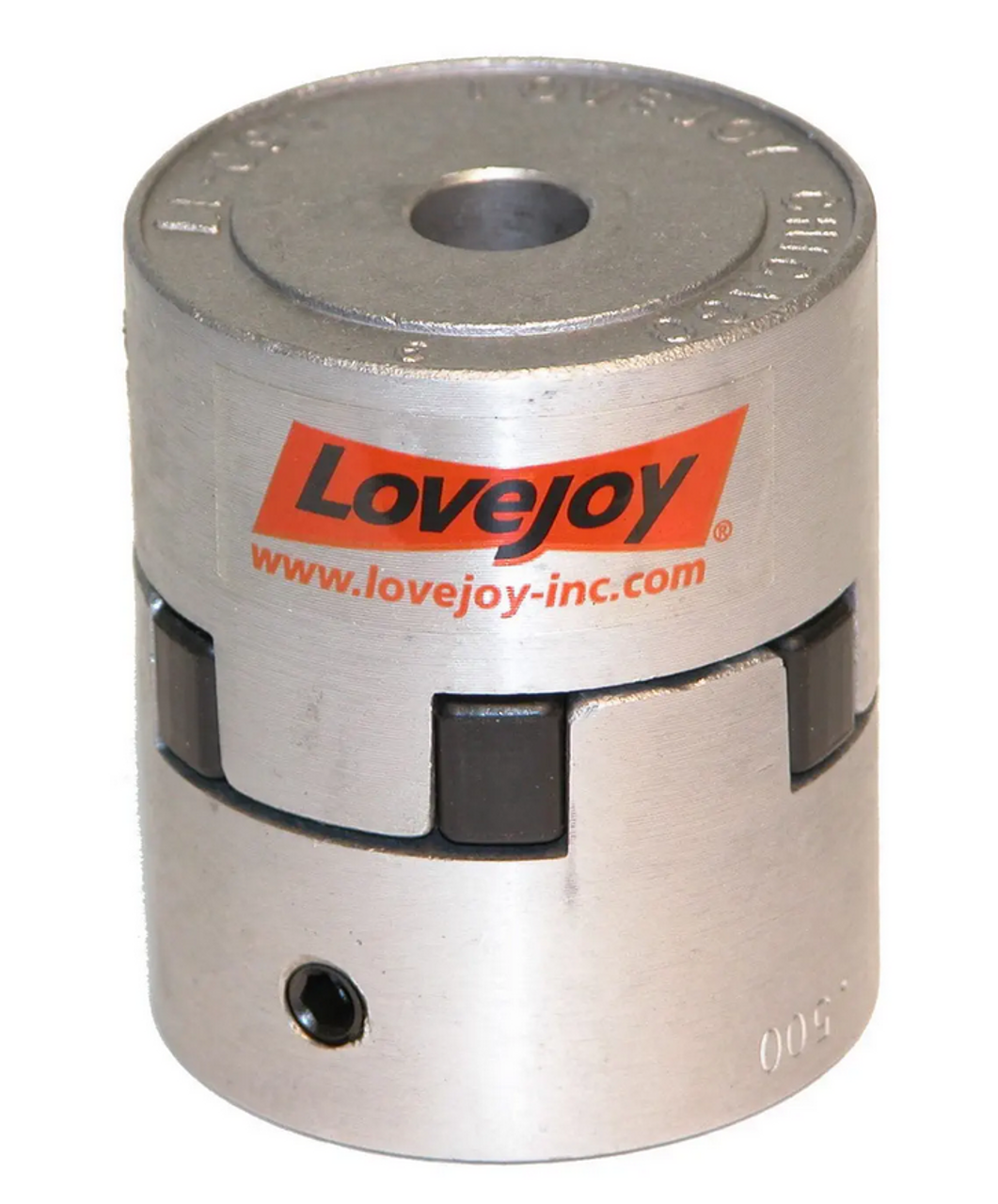

40mm Shaft Lovejoy® Jaw Style Coupling Half AL150-HUB-40MM-12X3.3MMKW

The AL Type coupling consists of two standard AL Type hubs and one spider (find under L Type components, or the AL section for AL150).

Unless stated otherwise, hub torque and horsepower ratings assume a SOX(NBR) rubber spider is being used.

Lovejoy does not recommend reboring AL hubs.

All hubs are supplied standard with one set screw, except the AL150 which is provided with two set screws.

Interchangeable with all hub sizes standard for the L-Line and AL-Line products

Available in a variety of different finished bore and keyway combinations

Finished bores passivated for additional rust protection

Timken Lovejoy Master Catalog

Jaw Coupling Installation Guide

Series AL150

Shaft diameter 40mm

Material Aluminum

Keyway size 12 x 3.3mm

Coupling type Jaw coupler
