    Timken

    $1,928.04
    (No reviews yet) Write a Review
    SKU:
    TIM TAFNL22K400SC
    UPC:
    UPC 883450452830
    Weight:
    74.45 LBS
    Shaft size:
    4"
    Seal lip material:
    Viton
    Seal type:
    Double lip
    Seal suffix:
    C
    Fits covers:
    CS/CK/CKDR/CKVR
    Denomination:
    Inch
    Bearing posistion:
    Fixed
    Shaft mount:
    Taper lock adapter
    Factory greased:
    Yes
    Finish:
    Painted
    *For quick delivery:
    The "M" seal is the most commonly ordered seal among all block types
    HST code:
    8483.20.0020
    Adding to cart… category.add_cart_announcement

    Product Description

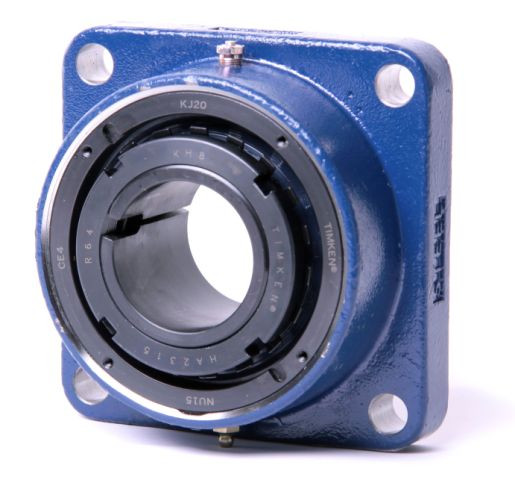

    TAFNL Square Flange Bearing Units

  • The TA/DV and TAA/DAA series feature a 2300-series tapered adapter sleeve for increased shaft contact. This design offers the best shaft concentricity and highest capacity all the while having the ability to accommodate undersized shafting
  • TA/TAA series housed unit bearings are a direct drop-in replacement for SAF/SN split-cap housing dimensions
  • DV/DAA series housed units are a drop-in replacement for common American set screw mounted units

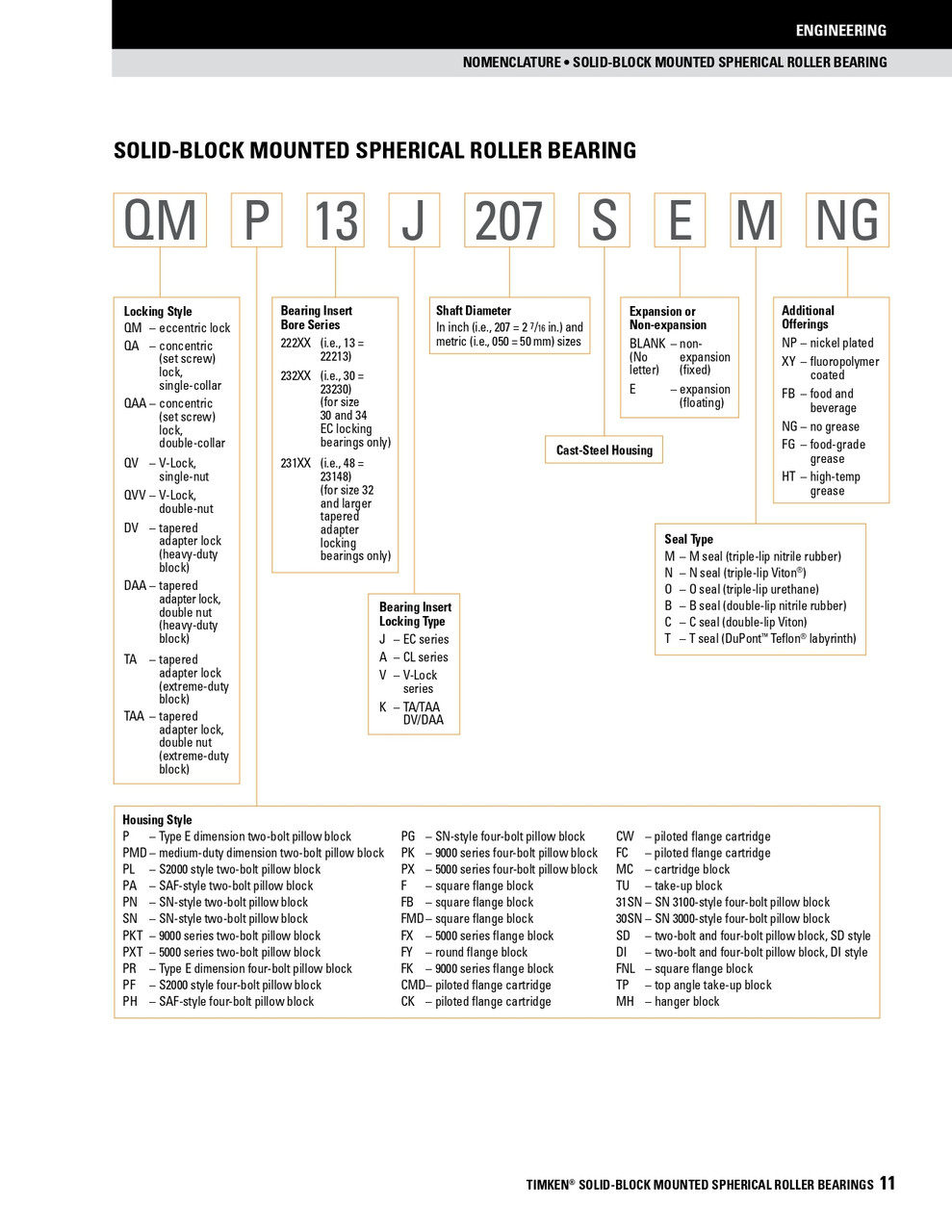

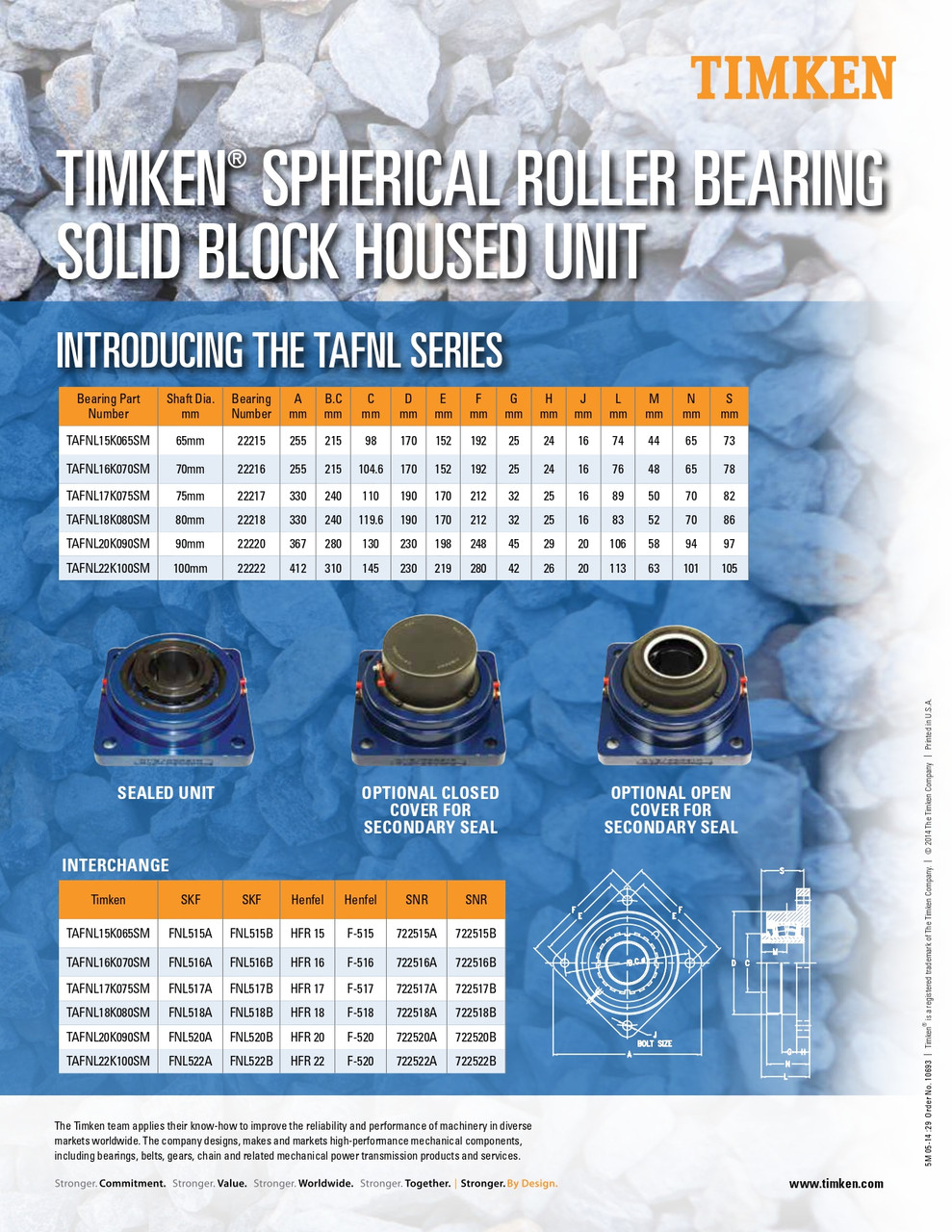

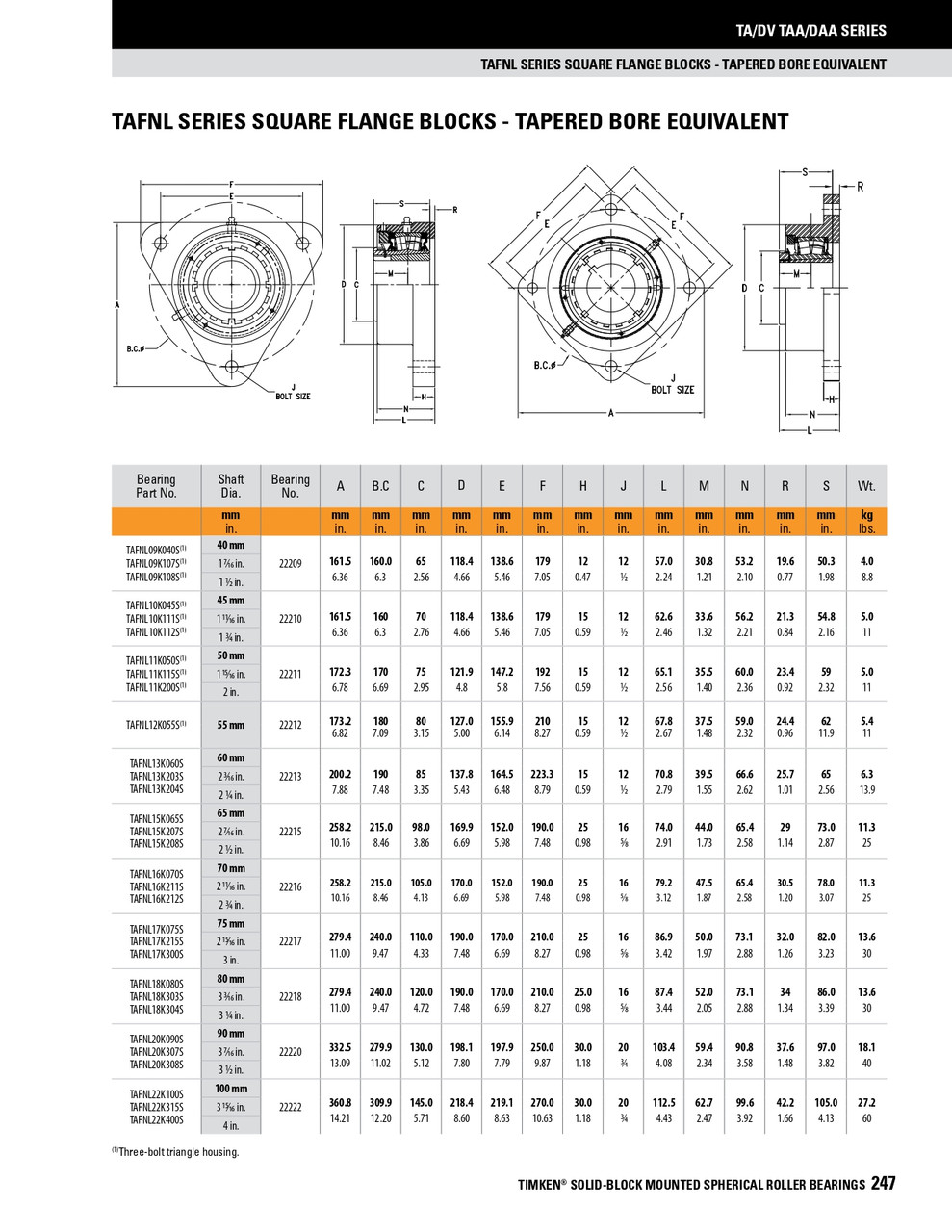

  • Please refer to both the image in the photo carousel labeled "Product Data Tables" and the .PDF file icon located below for an immediate breakdown of how the Timken Blue Brute® series interchanges by part number and equates to other competing manufacturers nomenclature

    Select from the many options offered by the Timken spherical roller bearing (SRB) Blue Brute® series

  • Two bolt pillow blocks
  • Four bolt pillow blocks
  • Flange blocks: square & round versions (piloted option available on some units)
  • Piloted flange cartridges
  • Take-up blocks
  • Cartridge blocks
  • Hanger blocks

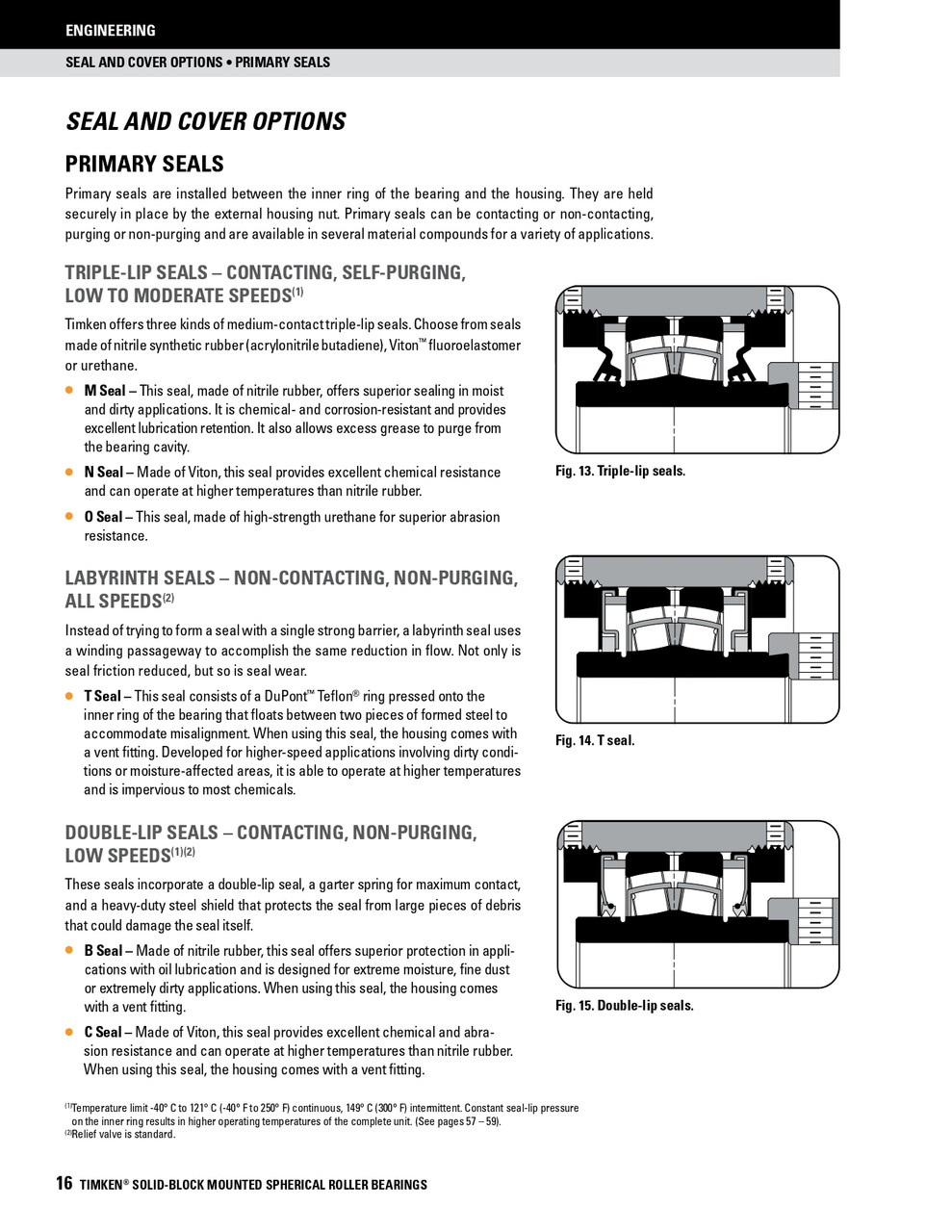

  • Labyrinth seals: DuPont® teflon (T)
  • Triple-lip seals: nitrile rubber (M), urethane (O) and DuPont® viton (N)
  • Double-lip seals: nitrile rubber (B) and DuPont® viton (C)
  • Steel and urethane closed-end covers (CS)
  • Steel and urethane open-end covers (CJ) with: DuPont® teflon labyrinth seals (T), triple-lip seals (DR), and V-ring seals (VR)
  • Piloted flange cartridge backing plates (HSY) with triple-lip seals (DR)
  • Flange block backing plates (UFP) with optional V-rings (VR)


    • adobepdficon.png Timken Solid Steel SRB Units




    adobepdficon.png Competitors Interchange (Please note: not all listed round piloted unit equivalents necessarily have the same pilot depth - please confirm before ordering)



    Timken stronger by design

    Product Videos

    Custom Field

    Shaft size 4"
    Seal lip material Viton
    Seal type Double lip
    Seal suffix C
    Fits covers CS/CK/CKDR/CKVR
    Denomination Inch
    Bearing posistion Fixed
    Shaft mount Taper lock adapter
    Factory greased Yes
    Finish Painted
    *For quick delivery The "M" seal is the most commonly ordered seal among all block types
    HST code 8483.20.0020
