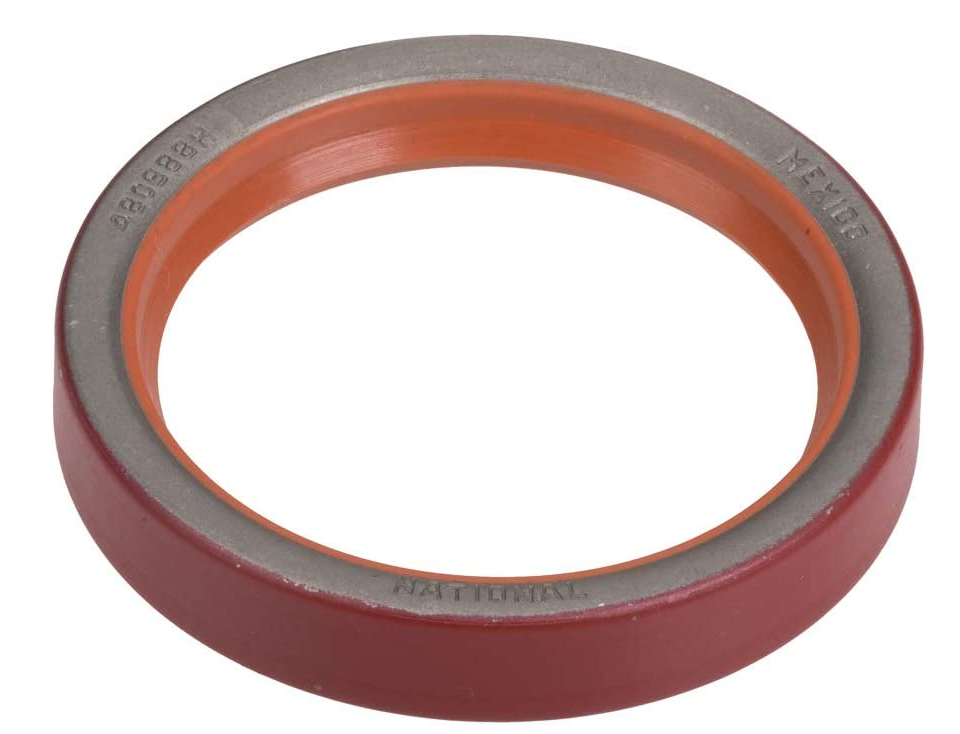

  • 4.000" Inch Metal Single Lip Silicone Oil Seal 710022
  • 4.000" Inch Metal Single Lip Silicone Oil Seal 710022
  • 4.000" Inch Metal Single Lip Silicone Oil Seal 710022
  • 4.000" Inch Metal Single Lip Silicone Oil Seal 710022
  • 4.000" Inch Metal Single Lip Silicone Oil Seal 710022
  • 4.000" Inch Metal Single Lip Silicone Oil Seal 710022

    • 4.000" Inch Metal Single Lip Silicone Oil Seal 710022

    National Oil Seals

    $83.53
    (No reviews yet) Write a Review
    SKU:
    NAT 710022 SEAL
    UPC:
    UPC 053893496344
    Weight:
    0.44 LBS
    Shaft size:
    4.000"
    Seal outer diameter:
    5.004"
    Seal width:
    0.468"
    Seal type & style:
    45 (Single lip)
    Lip material:
    H (Silicone)
    Case material:
    Redicoat® on metal case
    Temperature range:
    -73° ~ 163°C (-100° ~ 325°F)
    Spring retained:
    Yes
    Seal series:
    710000
    Hardness:
    70 Durometer
    Denoted measurement:
    Inch
    Shown in catalog:
    Yes
    Adding to cart… category.add_cart_announcement

    Product Description

  • Silicone (Lip code: H) lip material has a wide temperature range in which it can operate and is typically selected for high to low temperature ranges as well as low friction applications.
  • The high lubricant absorbency of silicone minimizes friction and wear; however it has poor compatibility with oxidized oils, some extreme pressure additives and abrasive contaminants.
  • Silicone should not be used in dry running applications as the lip will easily tear and/or wear its surface down prematurely.

  • Many of Nationals metal cased seals are offered with Redi-Coat® rubberized coating which is applied over the seals bare metal case and helps fill in any minor bore imperfections upon installing the new seal.

  • Please note that not all product images are representative of the item being shown but are similar in appearance. Please refer to the seals technical specifications sheet provided in the image carousel for absolute confirmation before ordering.

    Follow this link for access to Timken's interactive, multi-vehicle, bearing & seal application database.

    Follow this link to access Timken's National oil seal & competitor's interchange.

    adobepdficon.png Timken Metric Oil Seal Catalog

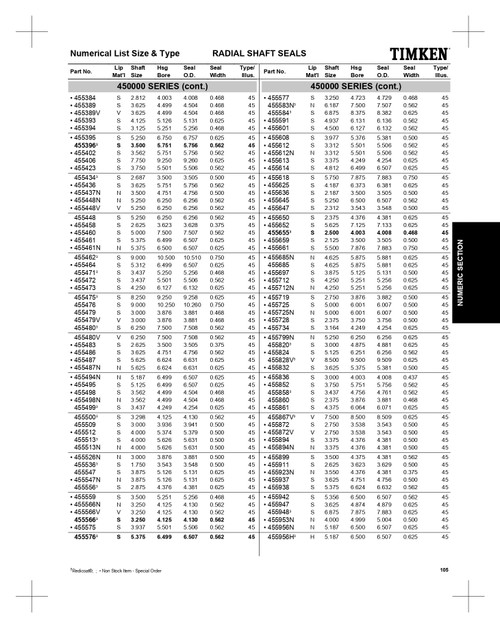

    adobepdficon.png National 7707 Inch Oil Seal Catalog & Interchange

    • Product Videos

    Custom Field

    Shaft size 4.000"
    Seal outer diameter 5.004"
    Seal width 0.468"
    Seal type & style 45 (Single lip)
    Lip material H (Silicone)
    Case material Redicoat® on metal case
    Temperature range -73° ~ 163°C (-100° ~ 325°F)
    Spring retained Yes
    Seal series 710000
    Hardness 70 Durometer
    Denoted measurement Inch
    Shown in catalog Yes
