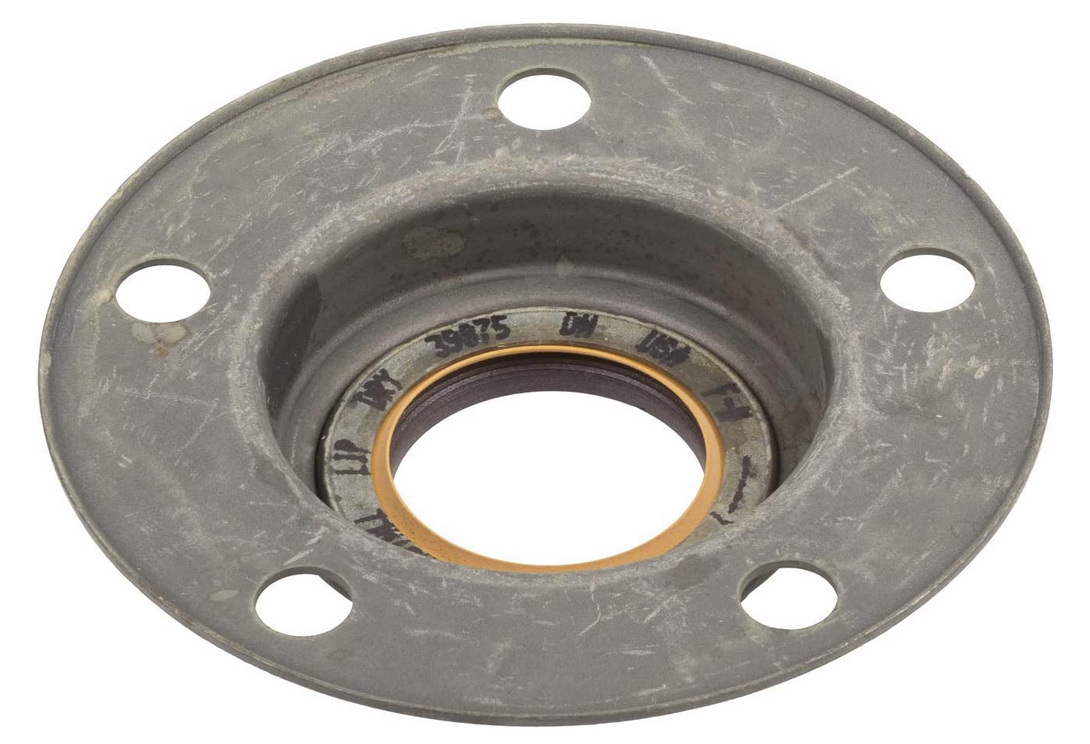

  • 38.00mm Metric Metal Teflon® Oil Seal - Specific Application 39875
  • 38.00mm Metric Metal Teflon® Oil Seal - Specific Application 39875
  • 38.00mm Metric Metal Teflon® Oil Seal - Specific Application 39875
  • 38.00mm Metric Metal Teflon® Oil Seal - Specific Application 39875
  • 38.00mm Metric Metal Teflon® Oil Seal - Specific Application 39875
  • 38.00mm Metric Metal Teflon® Oil Seal - Specific Application 39875

    • 38.00mm Metric Metal Teflon® Oil Seal - Specific Application 39875

    National Oil Seals

    $86.48
    (No reviews yet) Write a Review
    SKU:
    NAT 39875
    UPC:
    UPC 053893476179
    Weight:
    0.11 LBS
    Shaft size:
    38.00mm
    Housing bore:
    54.00mm
    Seal width:
    25.00mm
    Seal type & style:
    # (Specific application)
    Lip material:
    T (Teflon®)
    Case material:
    Plain metal case
    Temperature range:
    -73°C to 232°C (-100°F to 450°F)
    Seal series:
    39000
    Notable feature:
    Clockwise spiral lip design
    Denoted measurement:
    Metric
    Shown in catalog:
    Yes
    Adding to cart… category.add_cart_announcement

    Product Description

  • Teflon® PTFE (Lip code: T) has excellent dry running capabilities but comes with important caveats as well.
  • Low coefficient of friction.
  • Excellent chemical resistance.
  • Resistant to oxygenated hydrocarbon blends.
  • PTFE has poor abrasion resistance to dirty environments.
  • There is high thermal expansion with PTFE.
  • Due to the delicate nature of Teflon, care must be taken when handling the seal as PTFE has unforgiving "memory" and will retain deformation of the sealing surface if banged, nicked, creased or folded during installation.
  • It must be noted that although fluoropolymers such as FKM and PTFE are classed as resistant to high temperatures, they will thermally degrade on exposure to extreme temperatures (FKM @ 316°C/600°F) and (PTFE @ 371°C/700°F) and emit hazardous fumes containing hydrofluoric acid (HF).
  • In the unlikely event of such a high temperature incident, allow the components in question to cool, douse with limewater (Calcium hydroxide solution), and handle with PVC gloves until neutral pH confirmed, then discard.

  • Many of Nationals metal cased seals are offered with Redi-Coat® rubberized coating which is applied over the seals bare metal case and helps fill in any minor bore imperfections upon installing the new seal.

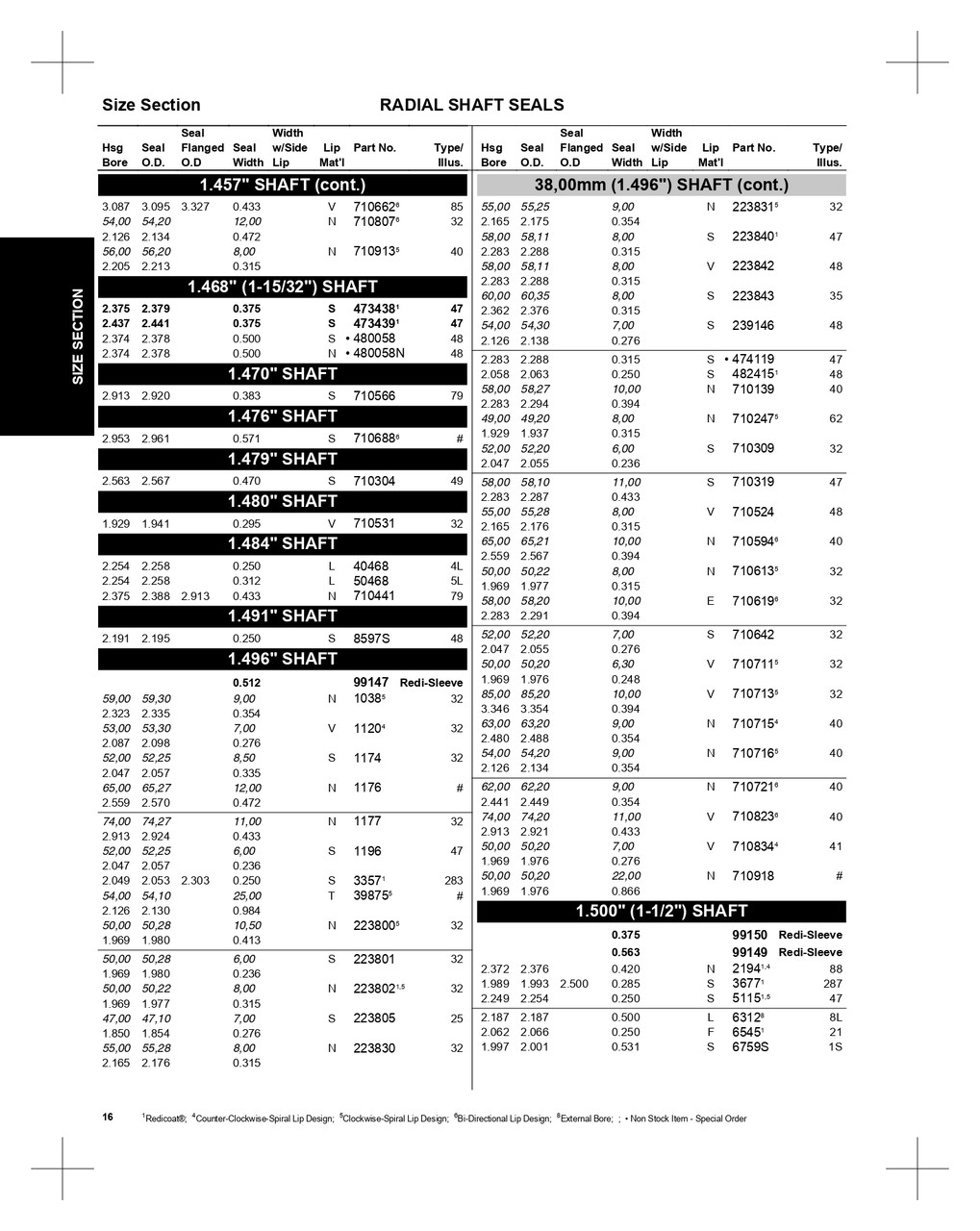

  • Please note that not all product images are representative of the item being shown but are similar in appearance. Please refer to the seals technical specifications sheet provided in the image carousel for absolute confirmation before ordering.

    Follow this link for access to Timken's interactive, multi-vehicle, bearing & seal application database.

    Follow this link to access Timken's National oil seal & competitor's interchange.

    adobepdficon.png Timken Metric Oil Seal Catalog

    adobepdficon.png National 7707 Inch Oil Seal Catalog & Interchange

    • Product Videos

    Custom Field

    Shaft size 38.00mm
    Housing bore 54.00mm
    Seal width 25.00mm
    Seal type & style # (Specific application)
    Lip material T (Teflon®)
    Case material Plain metal case
    Temperature range -73°C to 232°C (-100°F to 450°F)
    Seal series 39000
    Notable feature Clockwise spiral lip design
    Denoted measurement Metric
    Shown in catalog Yes
