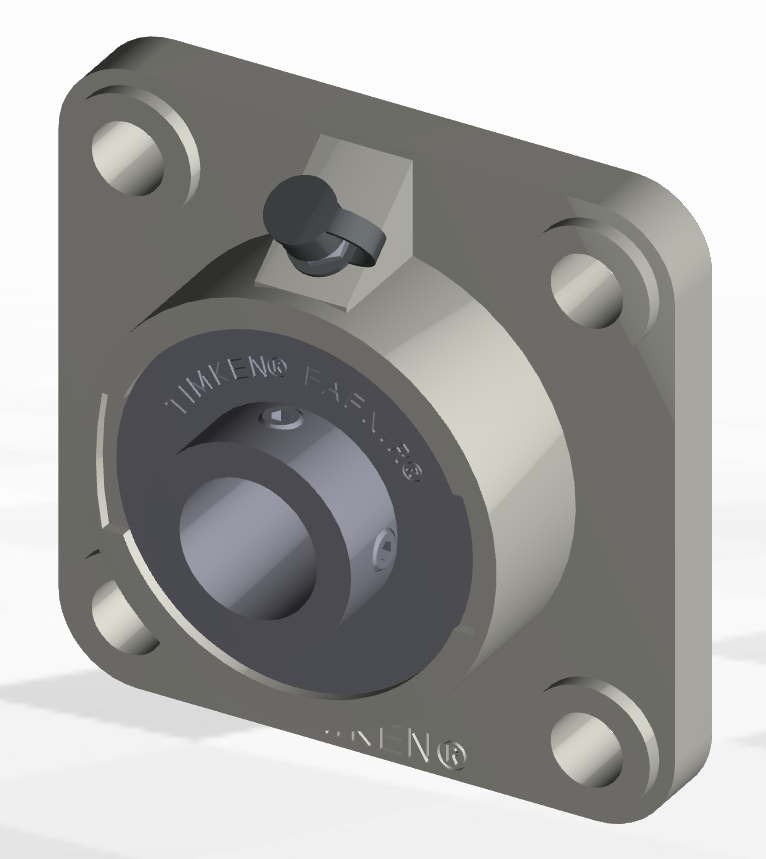

  • 35mm Survivor® Polymer Set Screw Flange Block Assembly KCJ 35 PS
  • 35mm Survivor® Polymer Set Screw Flange Block Assembly KCJ 35 PS
  • 35mm Survivor® Polymer Set Screw Flange Block Assembly KCJ 35 PS
  • 35mm Survivor® Polymer Set Screw Flange Block Assembly KCJ 35 PS
  • 35mm Survivor® Polymer Set Screw Flange Block Assembly KCJ 35 PS
  • 35mm Survivor® Polymer Set Screw Flange Block Assembly KCJ 35 PS
  • 35mm Survivor® Polymer Set Screw Flange Block Assembly KCJ 35 PS

    • 35mm Survivor® Polymer Set Screw Flange Block Assembly KCJ 35 PS

    Timken

    $0.00
    (No reviews yet) Write a Review
    SKU:
    TIM KCJ 35 PS
    Weight:
    3.94 LBS
    Bearing Type:
    Deep groove ball bearing
    Shaft profile:
    Round
    Bearing material:
    Stainless steel
    Housing material:
    Polymer
    Outer diameter profile:
    Spherical
    Locking device:
    Set screws

    Product Description

  • The 300-series stainless steel insert provides the highest resistance to corrosion in the industry
  • This unit is used for the ready-to-eat portion of the process loads are lighter and corrosion protection is the primary concern
  • Specifically designed for light loads and low speeds, and has stainless steel set screws
  • The durable, corrosion-proof polymer housing has stainless steel crush bushings in the mounting holes and a stainless steel grease fitting with nylon cap
  • Polymer resists a broad range of acids and alkalis, as well as steam and continuous temperature up to 121° C (250° F) and brief exposure up to 160° C (320° F)
  • The polymer strength exceeds static capacity of bearing; housing retains proper bearing fit and resists shock loads
  • The flush base contains no voids where bacteria can collect
  • The optional end covers further protect insert bearing from direct contact with washdown solutions and cover rotating components

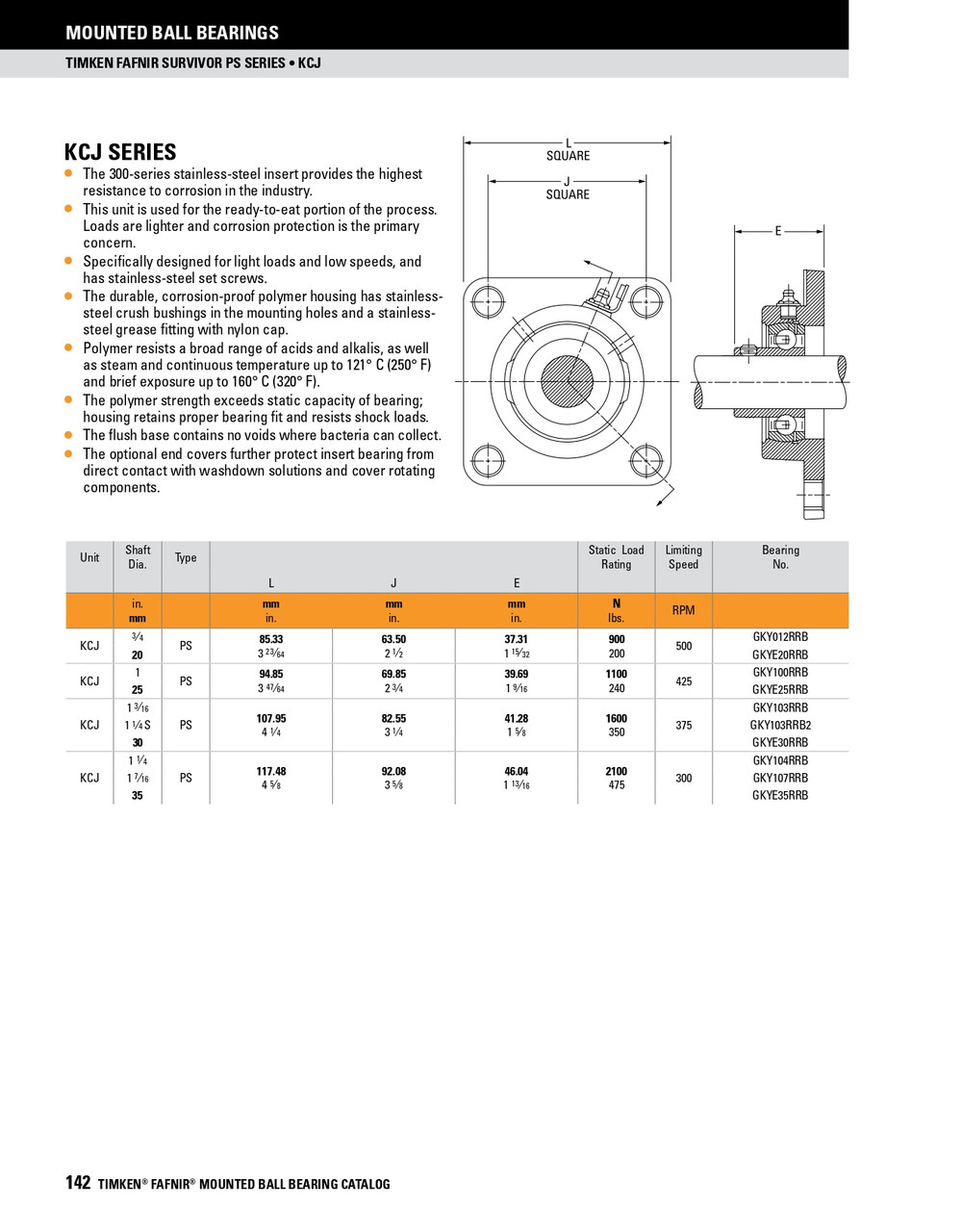

    adobepdficon.png Timken Fafnir Mounted Ball Bearing Catalog

    adobepdficon.png Timken Fafnir Competitive Interchange Chart

    • Product Videos

    Custom Field

    Bearing Type Deep groove ball bearing
    Shaft profile Round
    Bearing material Stainless steel
    Housing material Polymer
    Outer diameter profile Spherical
    Locking device Set screws
