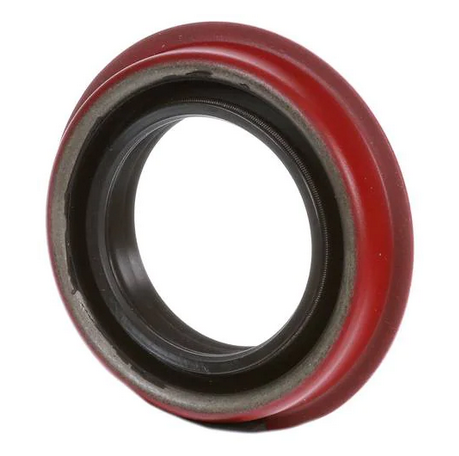

  • 35.00mm Metric Metal Flanged Triple Lip Polyacrylate Oil Seal 710199
  • 35.00mm Metric Metal Flanged Triple Lip Polyacrylate Oil Seal 710199
  • 35.00mm Metric Metal Flanged Triple Lip Polyacrylate Oil Seal 710199
  • 35.00mm Metric Metal Flanged Triple Lip Polyacrylate Oil Seal 710199
  • 35.00mm Metric Metal Flanged Triple Lip Polyacrylate Oil Seal 710199
  • 35.00mm Metric Metal Flanged Triple Lip Polyacrylate Oil Seal 710199

    • 35.00mm Metric Metal Flanged Triple Lip Polyacrylate Oil Seal 710199

    National Oil Seals

    $44.76
    (No reviews yet) Write a Review
    SKU:
    NAT 710199 SEAL
    UPC:
    UPC 053893498058
    Weight:
    0.11 LBS
    Shaft size:
    35.00mm
    Housing bore:
    54.00mm
    Seal width:
    10.00mm
    Seal type & style:
    86 (Triple lip)
    Lip material:
    N (Polyacrylate)
    Case material:
    Plain metal case
    Temperature range:
    -25°C ~ 149°C (-13°F ~ 300°F)
    Spring retained:
    Yes
    Seal series:
    710100
    Hardness:
    70 Durometer
    Notable feature:
    Bi-Directional lip design
    Notable feature:
    Flanged O.D.
    Denoted measurement:
    Metric
    Shown in catalog:
    Yes
    Adding to cart… category.add_cart_announcement

    Product Description

  • Polyacrylate (Lip code: N) are well suited for use with extreme pressure (EP) lubricants and have higher resistance to oxidation and ozone than nitrile.
  • Resistant to sulphur commonly used as a grease additive.
  • Polyacrylate elastomers have good compatibility with higher temperatures up to 149°C (300°F), and even to 177°C (350°F) with some fluids.
  • They should not be used alongside water or other aqueous solutions.
  • Does not perform at temperatures below -40°C (-40°F)
  • Polyacrylates are not recommended for dry running applications.

  • Many of Nationals metal cased seals are offered with Redi-Coat® rubberized coating which is applied over the seals bare metal case and helps fill in any minor bore imperfections upon installing the new seal.

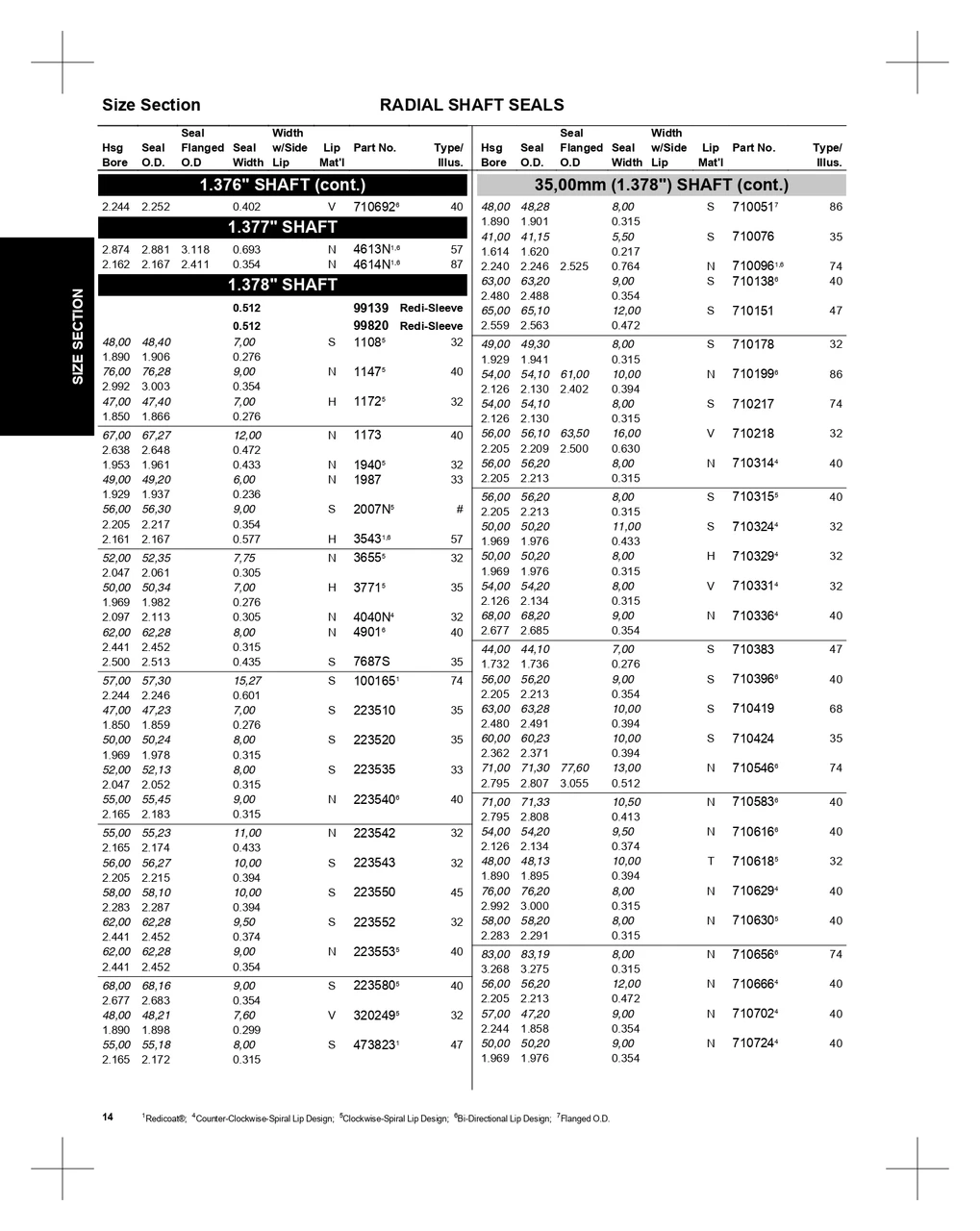

  • Please note that not all product images are representative of the item being shown but are similar in appearance. Please refer to the seals technical specifications sheet provided in the image carousel for absolute confirmation before ordering.

    Follow this link for access to Timken's interactive, multi-vehicle, bearing & seal application database.

    Follow this link to access Timken's National oil seal & competitor's interchange.

    adobepdficon.png Timken Metric Oil Seal Catalog

    adobepdficon.png National 7707 Inch Oil Seal Catalog & Interchange

    • Product Videos

    Custom Field

    Shaft size 35.00mm
    Housing bore 54.00mm
    Seal width 10.00mm
    Seal type & style 86 (Triple lip)
    Lip material N (Polyacrylate)
    Case material Plain metal case
    Temperature range -25°C ~ 149°C (-13°F ~ 300°F)
    Spring retained Yes
    Seal series 710100
    Hardness 70 Durometer
    Notable feature Bi-Directional lip design
    Notable feature Flanged O.D.
    Denoted measurement Metric
    Shown in catalog Yes
