  • 31.00mm Metric Rubberized Single Lip Viton® Oil Seal 710172
  • 31.00mm Metric Rubberized Single Lip Viton® Oil Seal 710172
  • 31.00mm Metric Rubberized Single Lip Viton® Oil Seal 710172
  • 31.00mm Metric Rubberized Single Lip Viton® Oil Seal 710172
  • 31.00mm Metric Rubberized Single Lip Viton® Oil Seal 710172
  • 31.00mm Metric Rubberized Single Lip Viton® Oil Seal 710172

    • 31.00mm Metric Rubberized Single Lip Viton® Oil Seal 710172

    National Oil Seals

    $72.16
    (No reviews yet) Write a Review
    SKU:
    NAT 710172 SEAL
    UPC:
    UPC 053893497839
    Weight:
    0.03 LBS
    Shaft size:
    31.00mm
    Housing bore:
    42.00mm
    Seal width:
    8.00mm
    Seal type & style:
    35 (Single lip)
    Lip material:
    V (Viton®)
    Case material:
    Rubberized metal
    Temperature range:
    -40° ~ 204°C (-40° ~ 400°F)
    Spring retained:
    Yes
    Seal series:
    710100
    Hardness:
    75 Durometer
    Denoted measurement:
    Metric
    Shown in catalog:
    Yes
    Adding to cart… category.add_cart_announcement

    Product Description

  • Viton® FKM (Lip code: V) fluoroelastomer premium lip material offers the widest temperature range and chemical resistance of all seal materials.
  • Fluoroelastomers resist most special lubricants and chemicals that can destroy nitrile, polyacrylates or silicones.
  • This premium material, with its superior resistance to abrasion and high temperatures, provides superior performance and wear.
  • Works in dry running applications but only for intermittent periods.
  • It must be noted that although fluoropolymers such as FKM and PTFE are classed as resistant to high temperatures, they will thermally degrade on exposure to extreme temperatures (FKM @ 316°C/600°F) and (PTFE @ 371°C/700°F) and emit hazardous fumes containing hydrofluoric acid (HF).
  • In the unlikely event of such a high temperature incident, allow the components in question to cool, douse with limewater (Calcium hydroxide solution), and handle with PVC gloves until neutral pH confirmed, then discard.

  • Rubber cover over a metallic core offers an excellent combination of sealing ability and corrosion resistance.
  • The rubber elastomer outer covering tolerates thermal expansion as well as roughness in the housing bore.
  • Because of the rubberized covering on the seal, there will be no fretting/galvanic corrosion of the metal bore that the seal is pressed into.

  • Please note that not all product images are representative of the item being shown but are similar in appearance. Please refer to the seals technical specifications sheet provided in the image carousel for absolute confirmation before ordering.

    Follow this link for access to Timken's interactive, multi-vehicle, bearing & seal application database.

    Follow this link to access Timken's National oil seal & competitor's interchange.

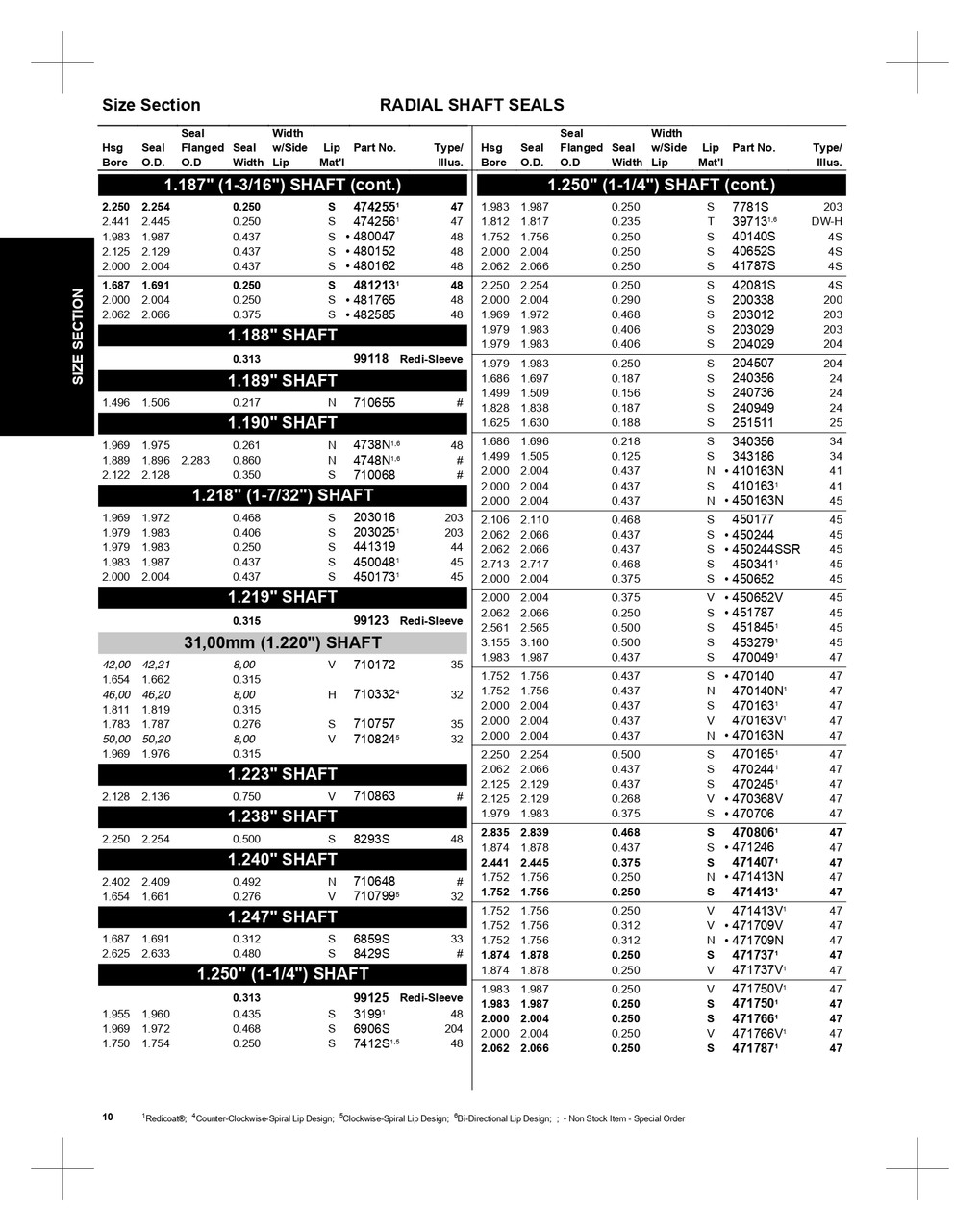

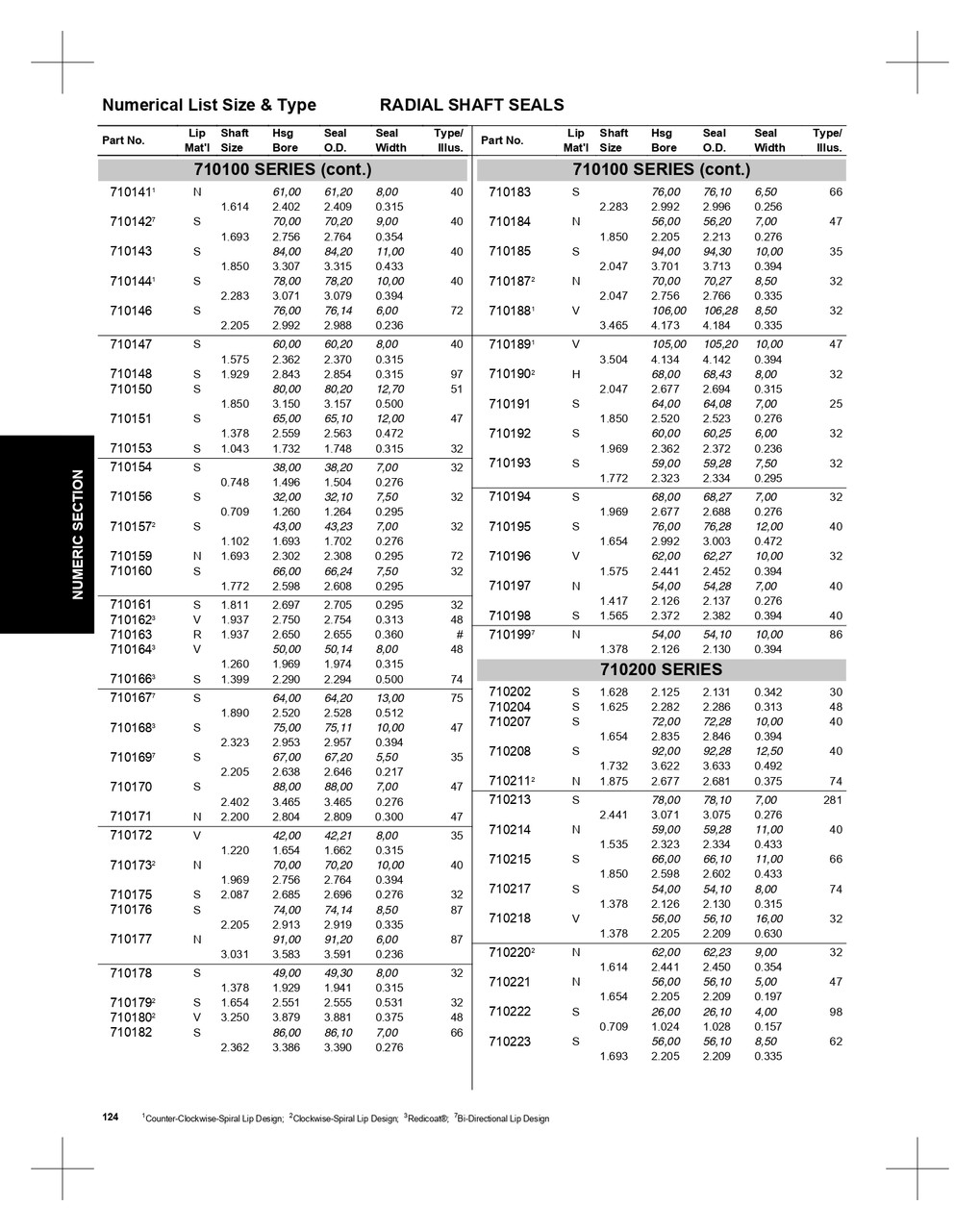

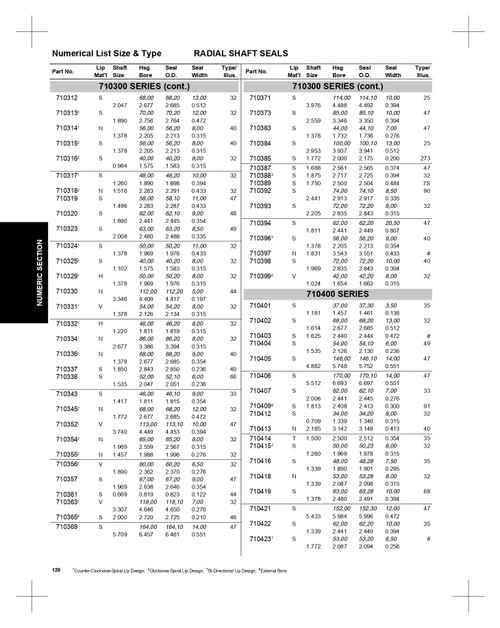

    adobepdficon.png Timken Metric Oil Seal Catalog

    adobepdficon.png National 7707 Inch Oil Seal Catalog & Interchange

    • Product Videos

    Custom Field

    Shaft size 31.00mm
    Housing bore 42.00mm
    Seal width 8.00mm
    Seal type & style 35 (Single lip)
    Lip material V (Viton®)
    Case material Rubberized metal
    Temperature range -40° ~ 204°C (-40° ~ 400°F)
    Spring retained Yes
    Seal series 710100
    Hardness 75 Durometer
    Denoted measurement Metric
    Shown in catalog Yes
