Product Description
The section of cable between the battery terminal and the fuse are effectively unprotected
If a short develops in this section, the fuse wouldnt experience the excess current and blow
The battery terminal fuse solves this problem by mounting directly on the battery terminal and eliminates any unprotected section of cable, maximizing the protection of your circuit

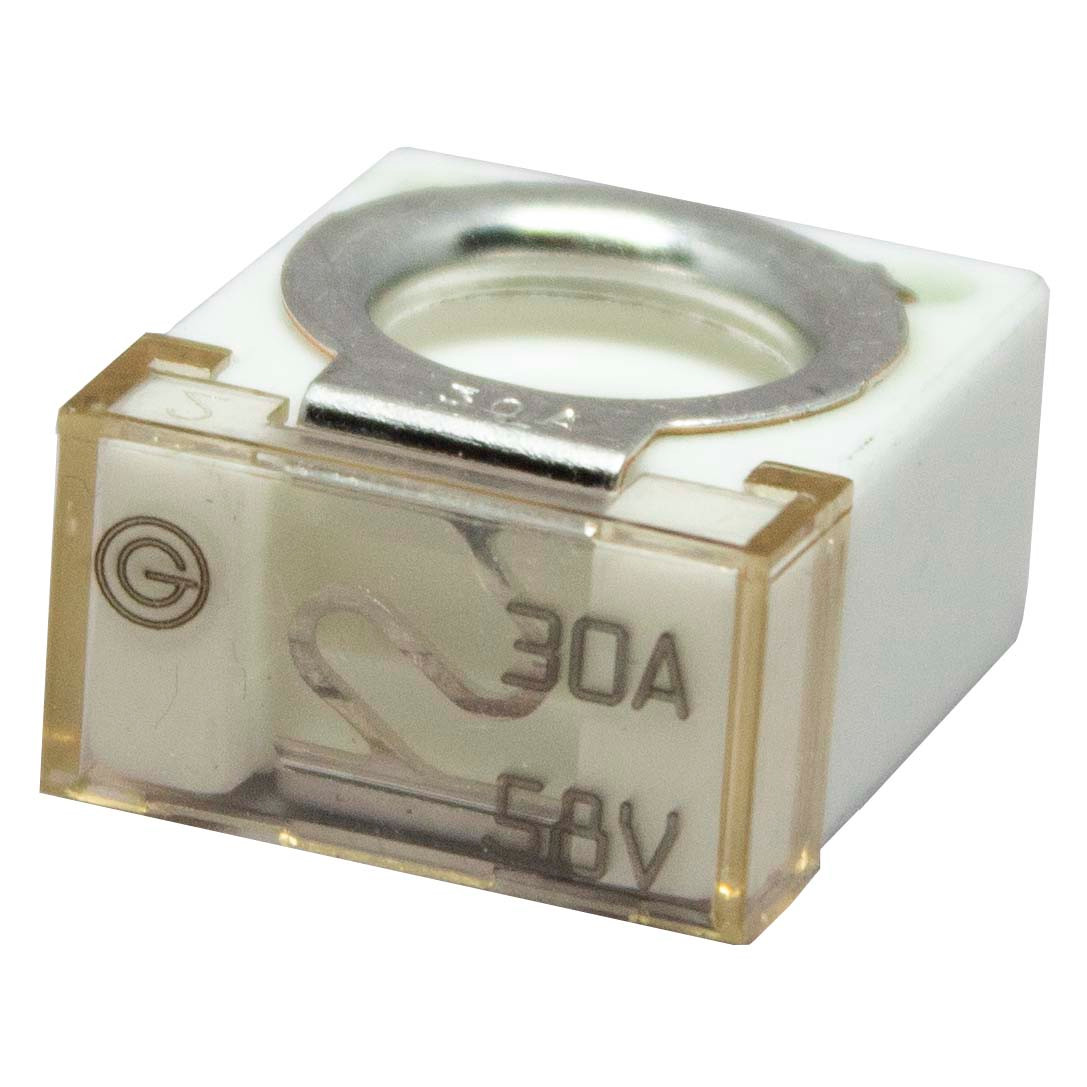

The fuse itself consists of a metal strip mounted in an insulated ceramic block which can be fitted to a battery terminal with an isolation washer, ensuring that the current passes through the fuse and not through the terminal
Available from 30A to 250A @ 58V
Please be aware when referencing the supplied Pico catalog that certain features may have been changed or upgraded (i.e. Temperature rating) on currently shown product since its original publication. In addition, there are also new items now available from Pico that were not included in this catalog when it went to print. You will notice these newer items by the lack of an attached catalog page in the image carousel
Pico 2018 General Catalog
Custom Field
Package quantity 1
Amperage rating 30A
Fuse type Battery terminal fuse
