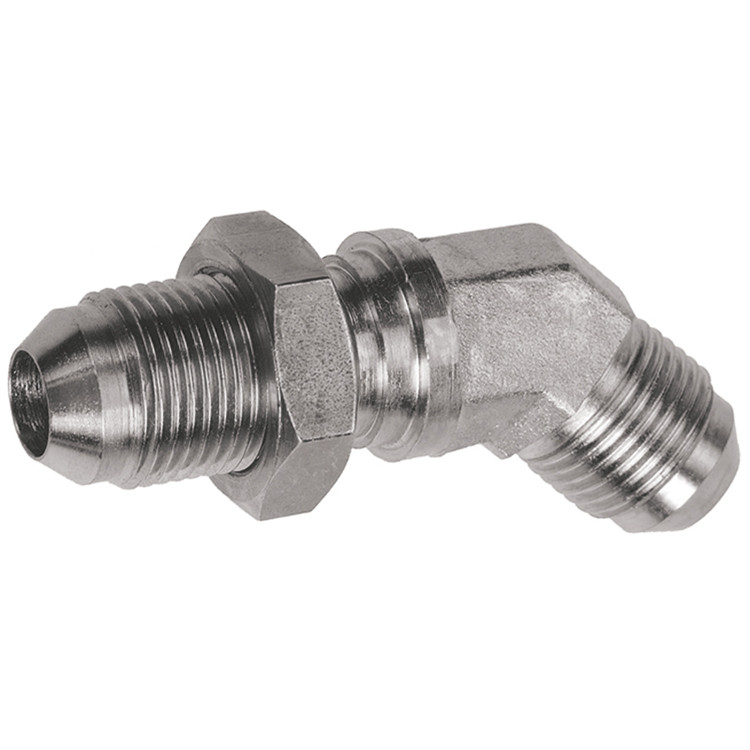

  • 3/8 x 3/8" Steel Male 37° JIC - Male 37° JIC Bulkhead 45° Elbow 1545BH-06-06
  • 3/8 x 3/8" Steel Male 37° JIC - Male 37° JIC Bulkhead 45° Elbow 1545BH-06-06
  • 3/8 x 3/8" Steel Male 37° JIC - Male 37° JIC Bulkhead 45° Elbow 1545BH-06-06
  • 3/8 x 3/8" Steel Male 37° JIC - Male 37° JIC Bulkhead 45° Elbow 1545BH-06-06

    • 3/8 x 3/8" Steel Male 37° JIC - Male 37° JIC Bulkhead 45° Elbow 1545BH-06-06

    Greenline

    $4.22
    (No reviews yet) Write a Review
    SKU:
    GRN 1545BH-06-06
    Weight:
    0.00 LBS
    Adding to cart… category.add_cart_announcement

    Product Description

  • JIC 37° fittings are widespread in hydraulic applications, while SAE 45° adapters are commonly brass and are usually confined to truck and plumbing markets.
  • Flare fittings are called by the size of tubing they connect to rather than the thread dimension.
  • For example, a JIC 37° in size -08 is designed to connect to 1/2" O.D. tubing, but the fitting actually measures 3/4" on the outside of the thread.
  • JIC and SAE thread dimensions match exactly in sizes -02, -03, -04, -05, -08, and -10, and so will often serve quite well when interchanged in low pressure applications, since only the seat angle varies by 8°
  • However, in sizes -06, -12, and larger, they will not interchange as the physical diameters are different.

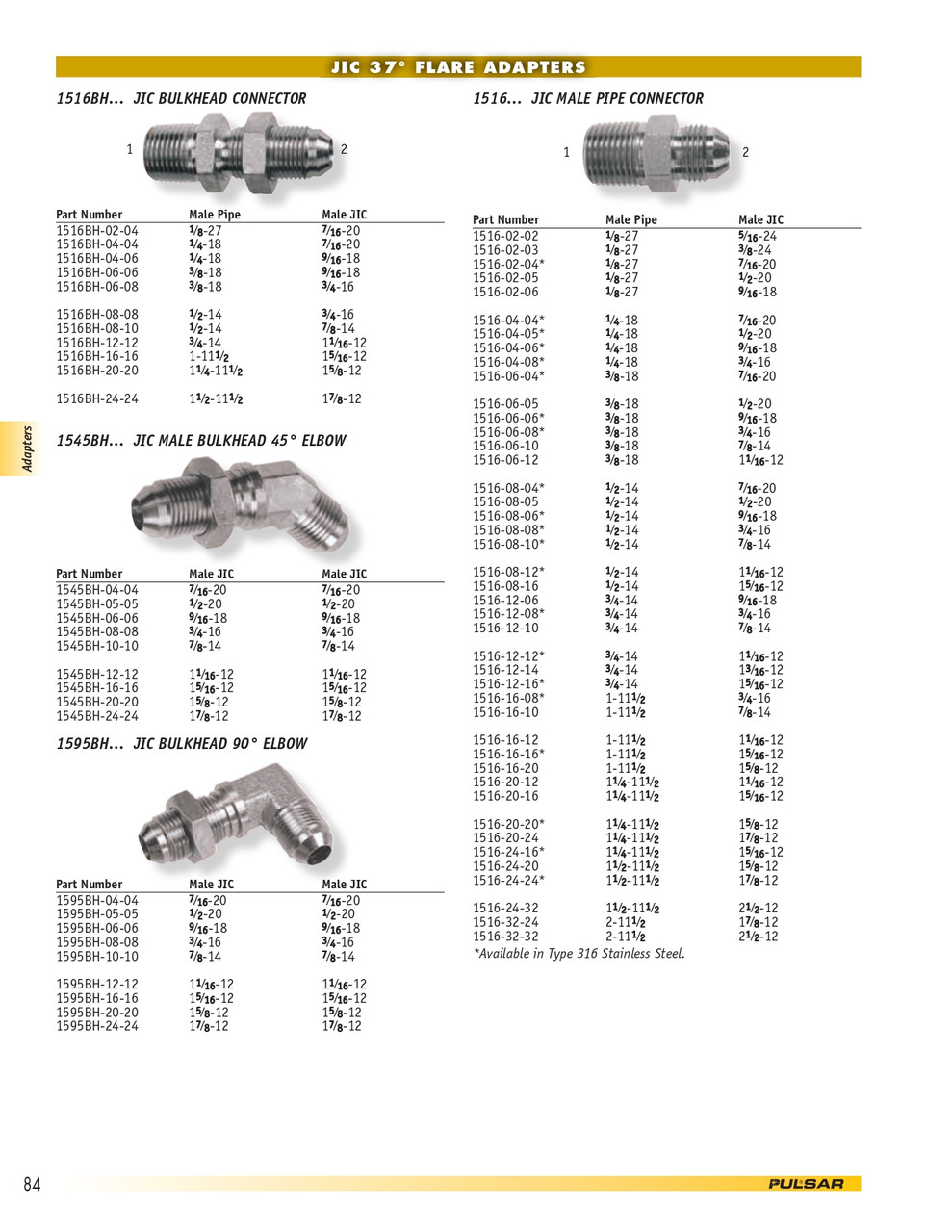

    adobepdficon.png Pulsar Hydraulic Hose & Fittings 10th Edition Catalog
