Product Description

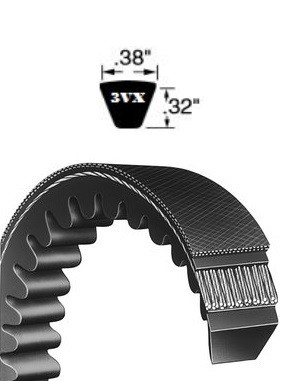

Note: Belts currently listed are single rib only. If you require a banded, multi-rib molded belt, please inquire for pricing and availability3VX series deep wedge cogged V-Belt (3/8" top width, 5/16" thick)A narrower, deeper, wedge shape than classical V-Belts with more efficient load carrying characteristics and higher power capability, allowing for smaller, more compact drivesThese belts feature Unimatch® construction which eliminates the need for belt set matchingThe raw edge belts have greater power capacity than the wrapped construction found on the standard "3V & 5V" Sseries belts because the raw edge does not slip as easily in oily environments due to their "grippy" side wallsPlease click this link for a convenient V-Belt and pulley calculator

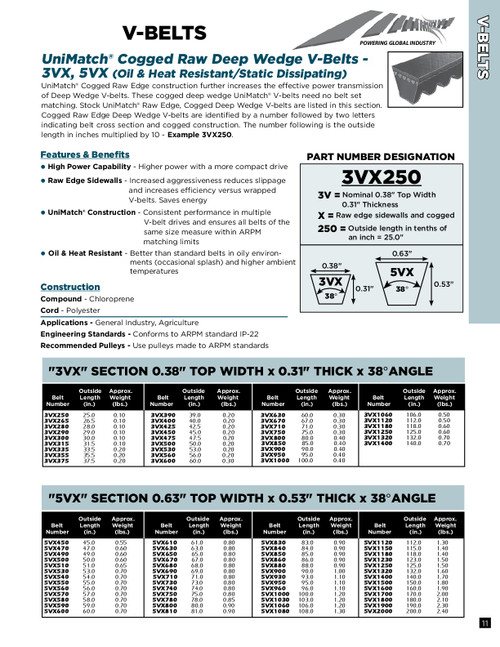

Jason Power Transmission Catalog
Custom Field
Oil and heat resistant Yes
Material Chloroprene rubber
Static dissipating Yes
Construction Polyester cord backing
Features Unimatch® system
Applications Predominantly used in general industry, and agriculture
Note The outside diameter (O.D.) of "3VX" belts is also the same as the part number (i.e. 3VX400 = 40.0" O.D.)
