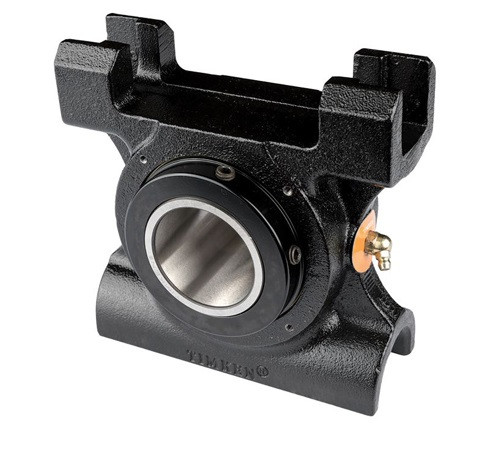

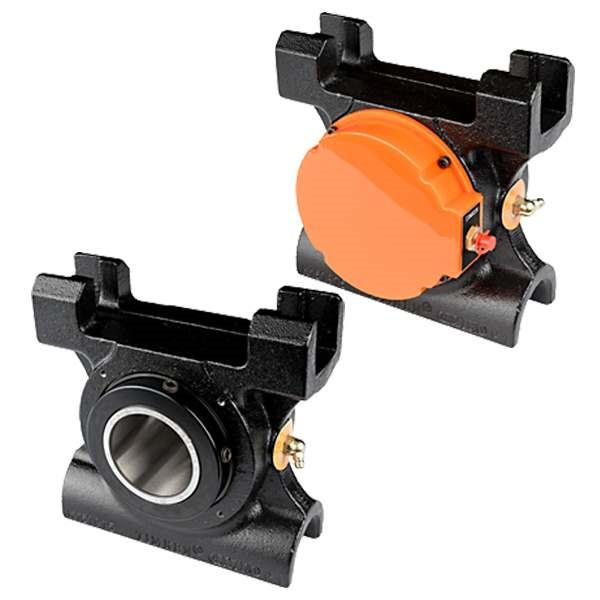

  • 3-7/16" Top Angle Type-E Taper Roller Bearing Take-Up Block - Double Locking Collar E-TTU-TRB-3 7/16
  • 3-7/16" Top Angle Type-E Taper Roller Bearing Take-Up Block - Double Locking Collar E-TTU-TRB-3 7/16
  • 3-7/16" Top Angle Type-E Taper Roller Bearing Take-Up Block - Double Locking Collar E-TTU-TRB-3 7/16
  • 3-7/16" Top Angle Type-E Taper Roller Bearing Take-Up Block - Double Locking Collar E-TTU-TRB-3 7/16
  • 3-7/16" Top Angle Type-E Taper Roller Bearing Take-Up Block - Double Locking Collar E-TTU-TRB-3 7/16
  • 3-7/16" Top Angle Type-E Taper Roller Bearing Take-Up Block - Double Locking Collar E-TTU-TRB-3 7/16
  • 3-7/16" Top Angle Type-E Taper Roller Bearing Take-Up Block - Double Locking Collar E-TTU-TRB-3 7/16
  • 3-7/16" Top Angle Type-E Taper Roller Bearing Take-Up Block - Double Locking Collar E-TTU-TRB-3 7/16

    • 3-7/16" Top Angle Type-E Taper Roller Bearing Take-Up Block - Double Locking Collar E-TTU-TRB-3 7/16

    Timken

    $1,606.43
    (No reviews yet) Write a Review
    SKU:
    TIM E-TTU-TRB-3 7/16
    UPC:
    UPC 053893778501
    Weight:
    44.07 LBS
    Shaft size:
    3-7/16"
    Unit type:
    Take-Up
    Profile:
    Top angle
    Eccentric lock collars:
    2
    Measurement:
    Inch
    Optional auxiliary seal use:
    EUDR-3 7/16
    Optional end cover use:
    EUC-H
    Adding to cart… category.add_cart_announcement

    Product Description

    TIMKEN® TYPE-E HOUSED UNITS

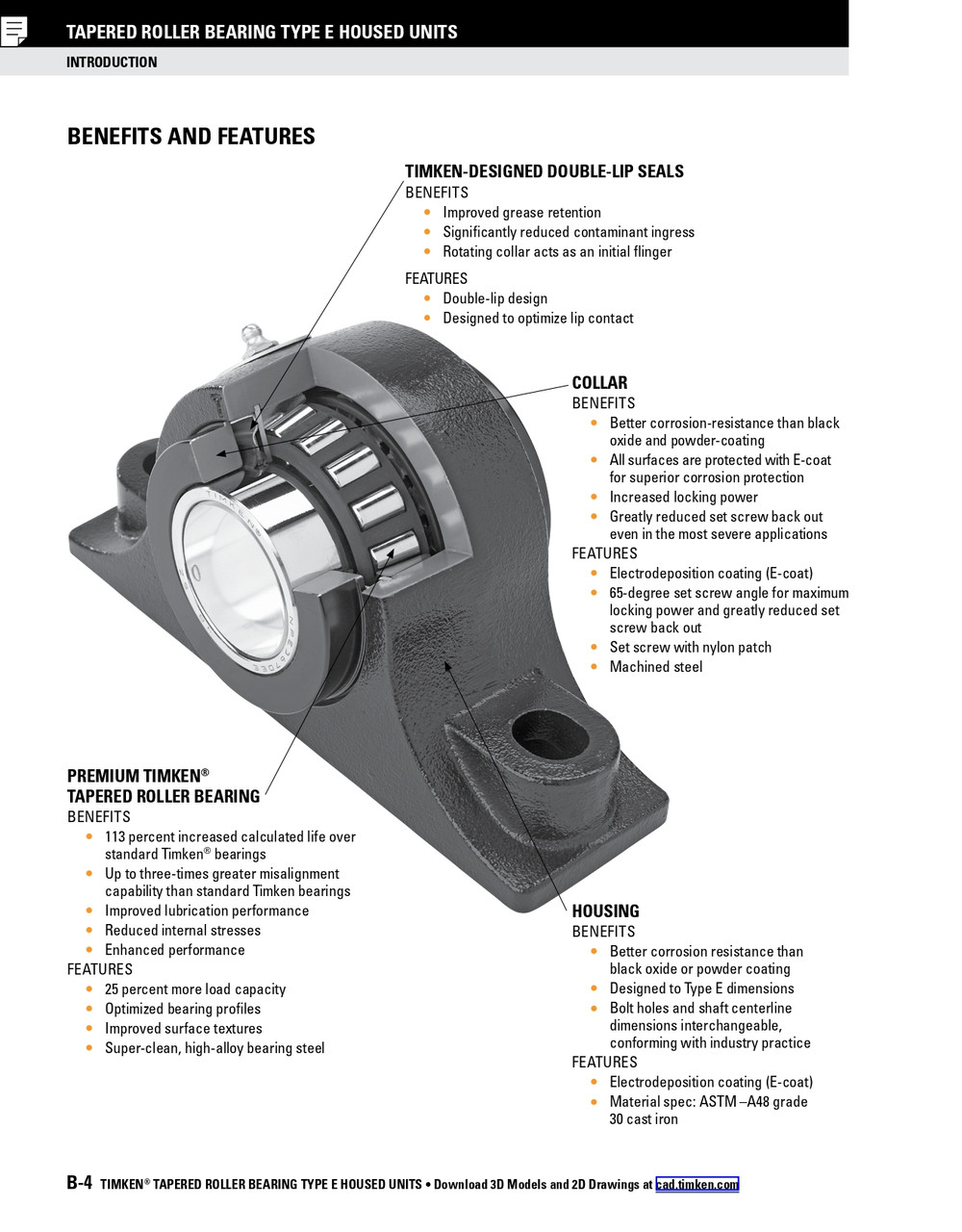

  • Timken® Type-E tapered roller bearing housed units feature double-lip seals and locking collars that protect against water and other contaminants. This double-lip seal design blocks debris and retains grease better than single-lip or triple-lip seals, according to Timken 2012 laboratory tests. Its cast-iron exterior includes a corrosion-resistant electro-coat finish for the housing and collar, a more durable shield than industry-standard powder coating or black oxide. Set screws with nylon patches reduce back-out, even in rigorous applications. Premium Timken® tapered roller bearings inside Type-E housings are manufactured with advanced technology that results in longer predicted useful bearing life than other housed units with standard bearings. Designed with optimized bearing profiles and improved surface finishes, Timken tapered roller bearings operate efficiently within the housing.

    TYPICAL INDUSTRIES AND APPLICATIONS
  • Timken Type-E housings are utilized for pulp and paper, power generation, mining, cement and aggregate industries. Type E housed units also are widely used in equipment for air-handling and treatment of water and waste water. Other common machine applications include mixers, washers, shredders, mills and oven/furnace roller beds.

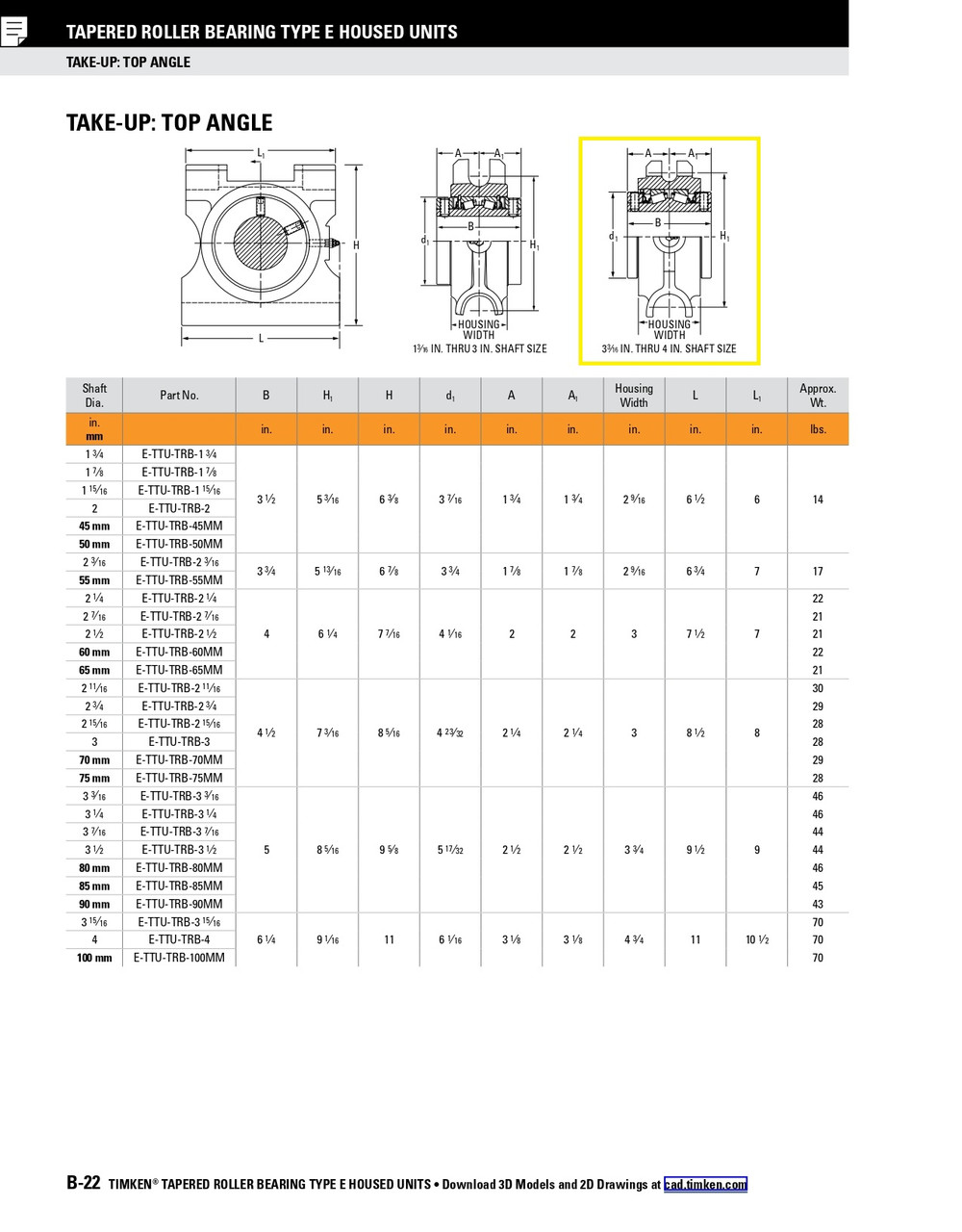

    adobepdficon.pngTimken Mounted Taper Roller Bearing Catalog



    Timken stronger by design

    • Product Videos

    Custom Field

    Shaft size 3-7/16"
    Unit type Take-Up
    Profile Top angle
    Eccentric lock collars 2
    Measurement Inch
    Optional auxiliary seal use EUDR-3 7/16
    Optional end cover use EUC-H
