    Timken

    $169.80
    (No reviews yet) Write a Review
    SKU:
    TIM LO520/3-7/16
    Weight:
    2.78 LBS
    Fits bearing block series:
    SNT500-600 / 200-300
    Seal type:
    Labyrinth
    Material:
    Steel
    O-ring material:
    Nitrile (default)

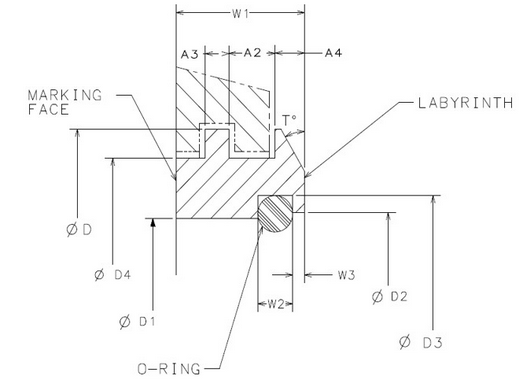

    Outer Diameter D:
    145.5 mm
    Overall Width W1:
    22 mm
    Diameter D2:
    95.6 mm
    Diameter D3:
    97.6 mm
    Diameter D4:
    136.5 mm
    Dimension A2:
    8 mm
    Dimension A3:
    5 mm
    Dimension A4:
    5mm
    Dimension W2:
    6 mm
    Dimension W3:
    2 mm
    T:
    30º
    Adding to cart… category.add_cart_announcement

    Product Description

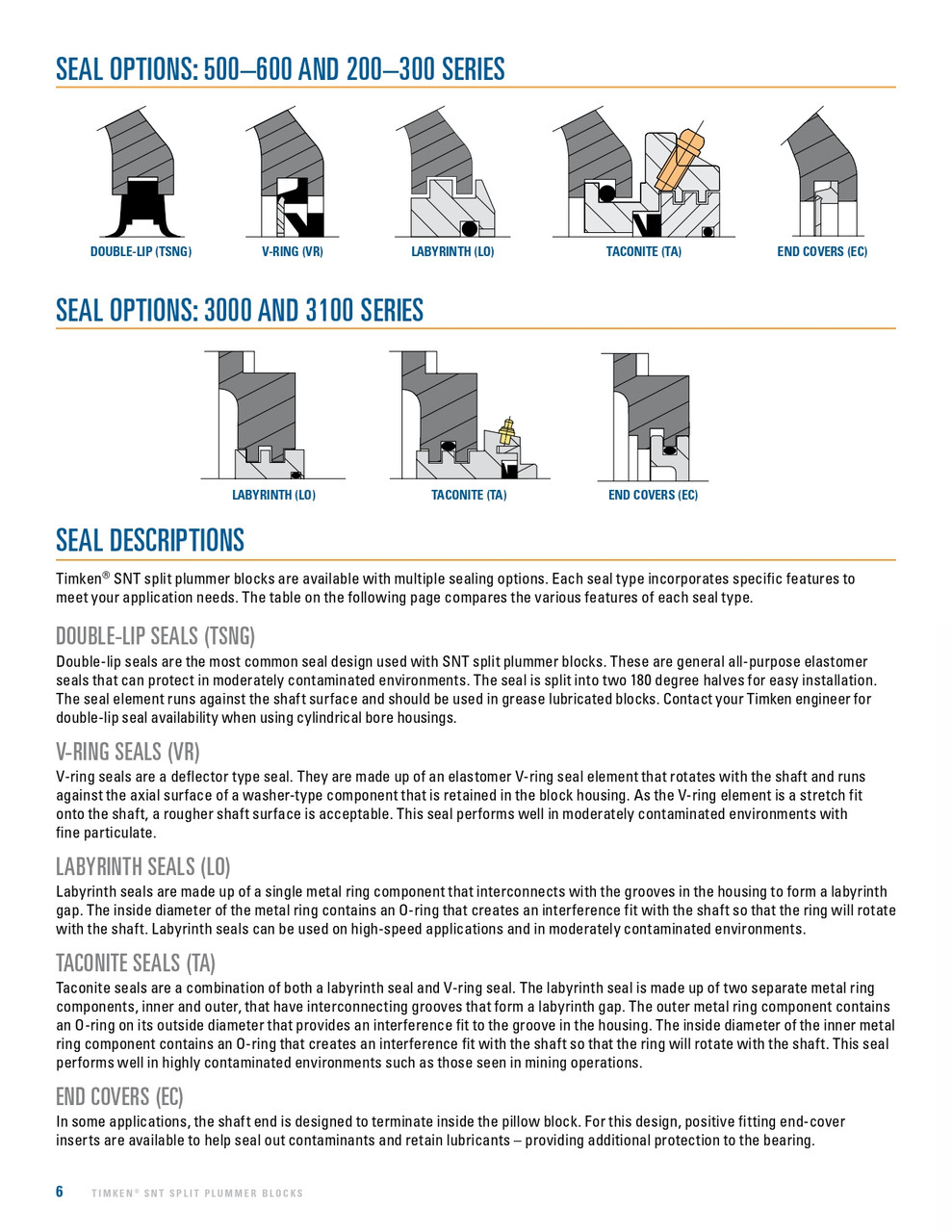

    LABYRINTH SEALS (LO)

  • Labyrinth seals are made up of a single metal ring component that interconnects with the grooves in the housing to form a labyrinth gap.
  • The inside diameter of the metal ring contains an O-ring that creates an interference fit with the shaft so that the ring will rotate with the shaft.
  • Labyrinth seals can be used on high-speed applications and in moderately contaminated environments.


    adobepdficon.png Timken SNT Bearing Blocks & Accessories

    •

    Product Videos

    Custom Field

    Fits bearing block series SNT500-600 / 200-300
    Seal type Labyrinth
    Material Steel
    O-ring material Nitrile (default)
    Outer Diameter D 145.5 mm
    Overall Width W1 22 mm
    Diameter D2 95.6 mm
    Diameter D3 97.6 mm
    Diameter D4 136.5 mm
    Dimension A2 8 mm
    Dimension A3 5 mm
    Dimension A4 5mm
    Dimension W2 6 mm
    Dimension W3 2 mm
    T 30º
