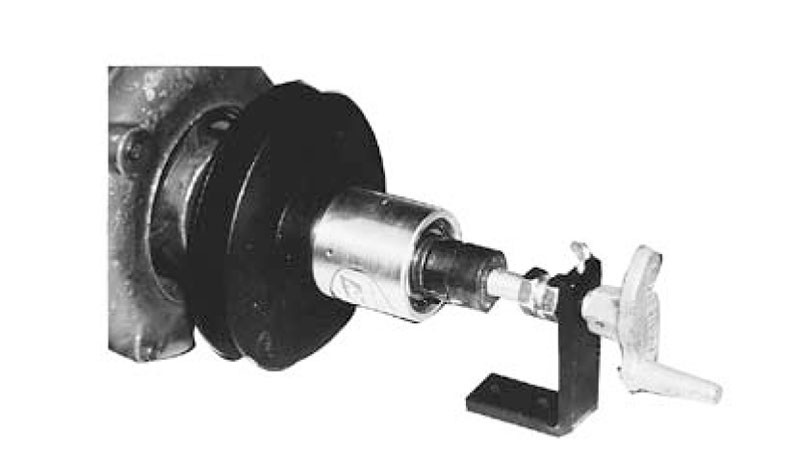

3/4" Shaft Lovejoy® Econoline Model MLA-40 Manually Adjustable Pulley MLA-40-3/4-PULLEY

Overview
Reviews

Product Description

Econoline fixed center drives utilize the same type of spring-loaded pulley as an adjustable center drive, only it is normally mounted on the driven shaft. The driver pulley is of similar size and construction, but it is manually adjustable. A fixed center drive offers greater driven speed range in a more compact space. There are two types of controllable pulleys: the M type with a hand wheel and built-in adjusting device, and the MLA type that uses an external control. The MLA type pulley can be used with the Lovejoy #76 Control Stand or some other type of linear controller.

Timkens Quick Flex® Elastomeric Coupling Configurator helps you quickly size Quick Flex coupling solutions for common applications.

By entering motor power (HP or kW), speed (rpm), and service factors, the configurator presents available Quick Flex coupling options, supporting faster selection and quoting.

Access the Quick Flex® Coupling Configurator to speed up your next coupling selection.

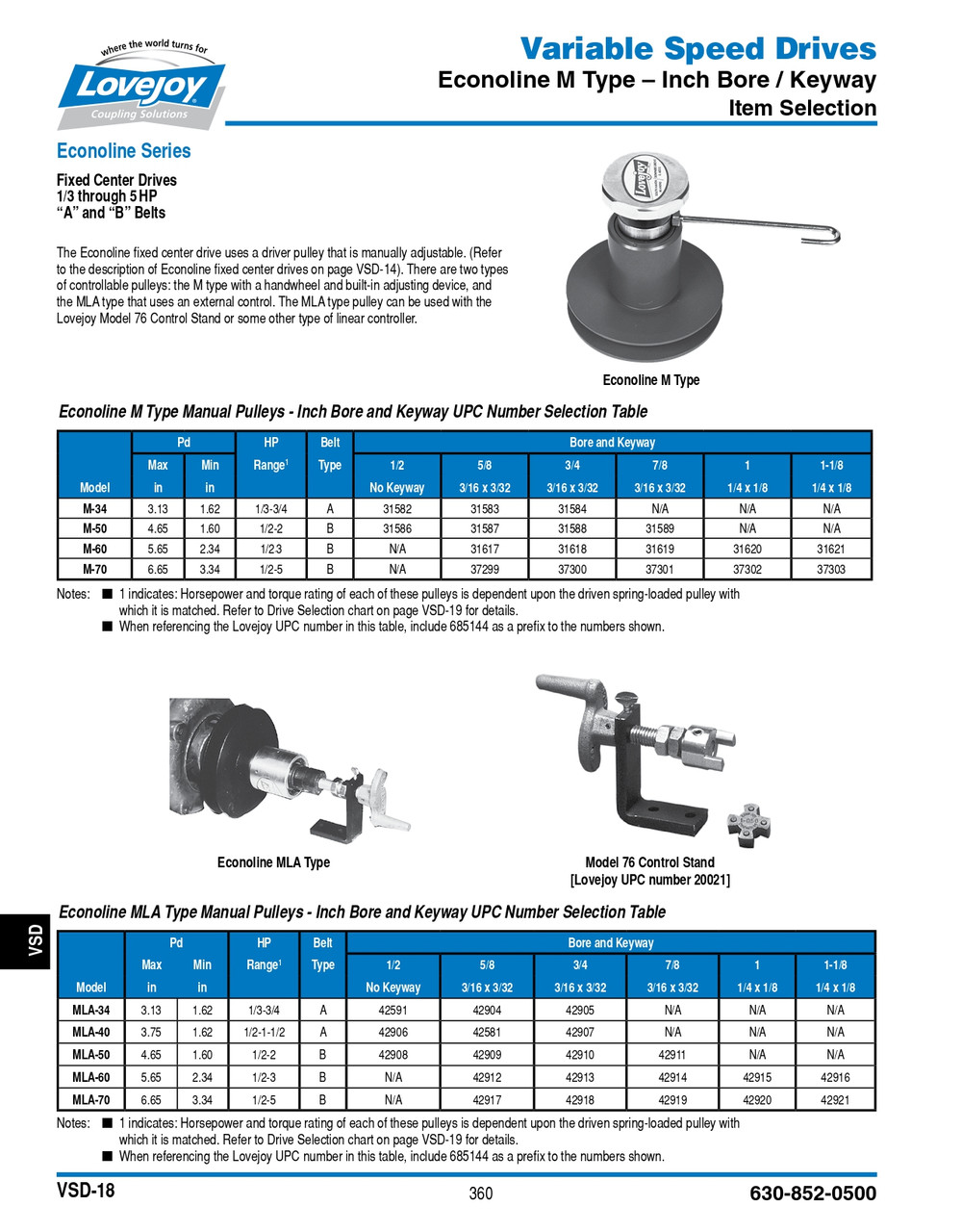

Timken Lovejoy Master Catalog

Product Videos

Custom Field

Series MLA-40

Shaft diameter 3/4"

Keyway size 3/16 x 3/32"

Outer diameter 4.00"

Belt size "A" belt

Type Variable speed drive
