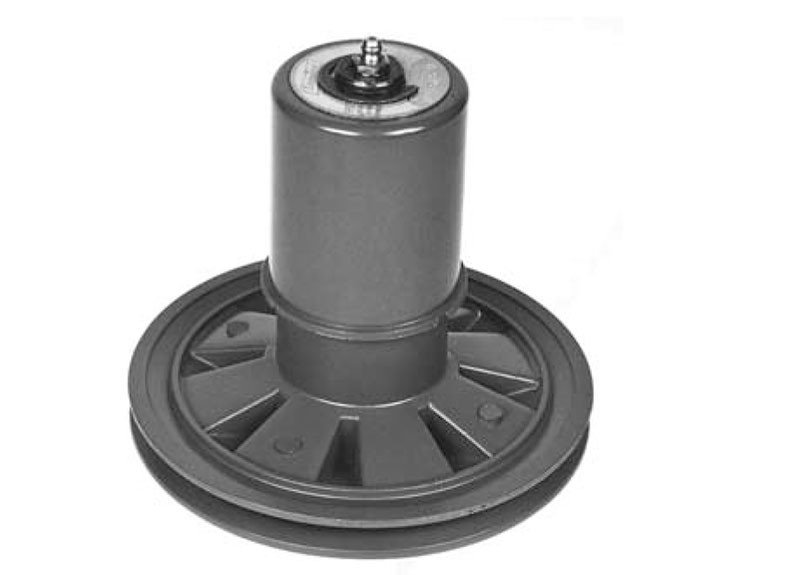

  • 3/4" Shaft Lovejoy® Aluminoline® Model 180 Spring Loaded Driver Pulley 180-3/4-PULLEY
  • 3/4" Shaft Lovejoy® Aluminoline® Model 180 Spring Loaded Driver Pulley 180-3/4-PULLEY
  • 3/4" Shaft Lovejoy® Aluminoline® Model 180 Spring Loaded Driver Pulley 180-3/4-PULLEY
  • 3/4" Shaft Lovejoy® Aluminoline® Model 180 Spring Loaded Driver Pulley 180-3/4-PULLEY

    • 3/4" Shaft Lovejoy® Aluminoline® Model 180 Spring Loaded Driver Pulley 180-3/4-PULLEY

    Timken

    $1,876.19
    (No reviews yet) Write a Review
    SKU:
    TIM 180-3/4-PULLEY
    UPC:
    UPC 0685144186768
    Weight:
    4.75 LBS
    Series:
    180
    Shaft diameter:
    3/4"
    Keyway size:
    3/16 x 3/32"
    Outer diameter:
    6.31"
    Belt size:
    "A" & "B" belt
    Type:
    Variable speed drive
    Adding to cart… category.add_cart_announcement

    Product Description

  • Aluminoline variable speed pulleys are designed for the best possible belt alignment with the least amount of overhung load. Flanges are made of a lightweight, corrosion-resistant aluminum, which is hard-coat anodized for long life. The aluminum flanges provide quiet operation with minimum vibration. These pulleys are used with classical “A” and “B” drive belts. Aluminoline pulleys offer maximum service when lubricated through a convenient grease fitting located on the end of the pulley shaft.

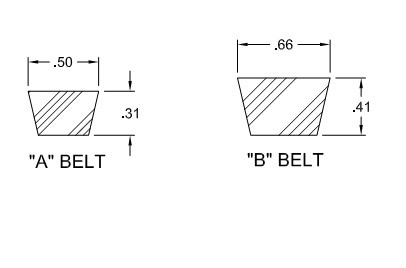

  • Belt Selection: Aluminoline variable speed pulleys are designed to drive standard “A” and “B” section belts. Due to the intermeshing flange design, it is best to use a wrapped belt or one without cogs.
  • Adjustable Center Drives: The typical adjustable center drive consists of the Aluminoline pulley mounted on the motor shaft, a companion sheave on the driven shaft, an adjustable motor base and a belt. Standard “A” and “B” fixed diameter sheaves should be used as driven companion sheaves. Belt alignment will be maintained throughout the speed range because the Aluminoline pulleys are two-side moveable. Due to the minimal bottom contact area of “A” and “B” belts, flat driven sheaves are NOT recommended.
  • Ratings for 1/3 through 1-1/2 HP motors
  • Unique “intermeshing” flange design
  • Greater speed ratios (up to 2.75 to 1) with a narrow-belt adjustable center drive than any other pulley

  • Timken’s Quick Flex® Elastomeric Coupling Configurator helps you quickly size Quick Flex coupling solutions for common applications.
  • By entering motor power (HP or kW), speed (rpm), and service factors, the configurator presents available Quick Flex coupling options, supporting faster selection and quoting.
  • Access the Quick Flex® Coupling Configurator to speed up your next coupling selection.

    adobepdficon.png Timken Lovejoy Master Catalog

    • Product Videos

    Custom Field

    Series 180
    Shaft diameter 3/4"
    Keyway size 3/16 x 3/32"
    Outer diameter 6.31"
    Belt size "A" & "B" belt
    Type Variable speed drive
