  • 3/4" Grade 80 V-Line Hammer Lock Coupling Link 3956 00481
  • 3/4" Grade 80 V-Line Hammer Lock Coupling Link 3956 00481
  • 3/4" Grade 80 V-Line Hammer Lock Coupling Link 3956 00481

    • 3/4" Grade 80 V-Line Hammer Lock Coupling Link 3956 00481

    Vanguard

    $97.52
    (No reviews yet) Write a Review
    SKU:
    VAN 3956 00481
    Weight:
    5.00 LBS
    Diameter:
    3/4"
    Working load limit:
    28300lbs
    Adding to cart… category.add_cart_announcement

    Product Description

  • Alloy steel - quenched and tempered
  • Meet or exceed ASTM A-952-96 standard
  • Meet EN1677 standard (20,000 cycle fatigue test)
  • Permanently embossed with VGD, size, model number and trace code
  • Approved for overhead lifting when all components are grade 80
  • Fast and easy assembly without the need for special tools
  • Designed for attaching hooks, master links/sub-assemblies and other end fittings to grade 80 alloy chain
  • Proof tested to 2.5 times the working load limit (WLL)
  • Design factor 4:1

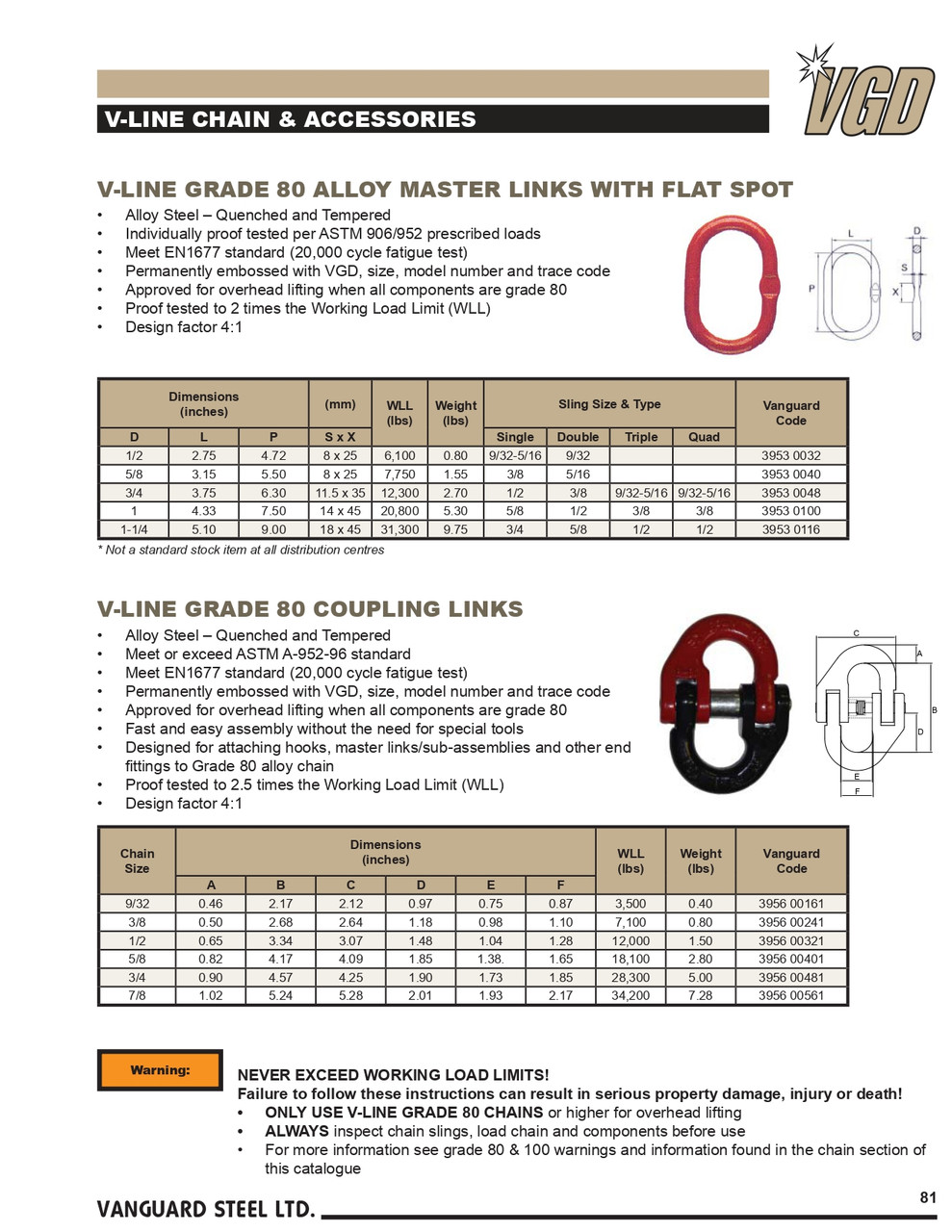

    adobepdficon.png Vanguard Catalog

    • Product Videos

    Custom Field

    Diameter 3/4"
    Working load limit 28300lbs
