Product Description
Cost Effective:
Speedi-sleeves are precision formed stainless steel wear sleeves designed to prolong the life of damaged shafts and yokes by providing a new sealing surface that is superior to most original finishes and materialsOil seals over time cut fine grooves into shafts due to factors such as dirt, heat, excessive water, lack of lubrication and high shaft speed rotationSpeedi-sleeves offer a cost effective alternative to resizing, metalizing, spray welding or replacing severely damaged surfacesThe sleeves low profile design means that the original oil seals dimensions can continue to be used without any shaft rework or machiningPlease note that there are higher performance Gold Speedi-Sleeves with Rockwell HRC80 hardness available for special order that are not listed in this databasePlease refer to the attached dimensional charts for exact specifications and min-max tolerances conveniently provided in both inch and metric increments
SKF Speedi-Sleeves

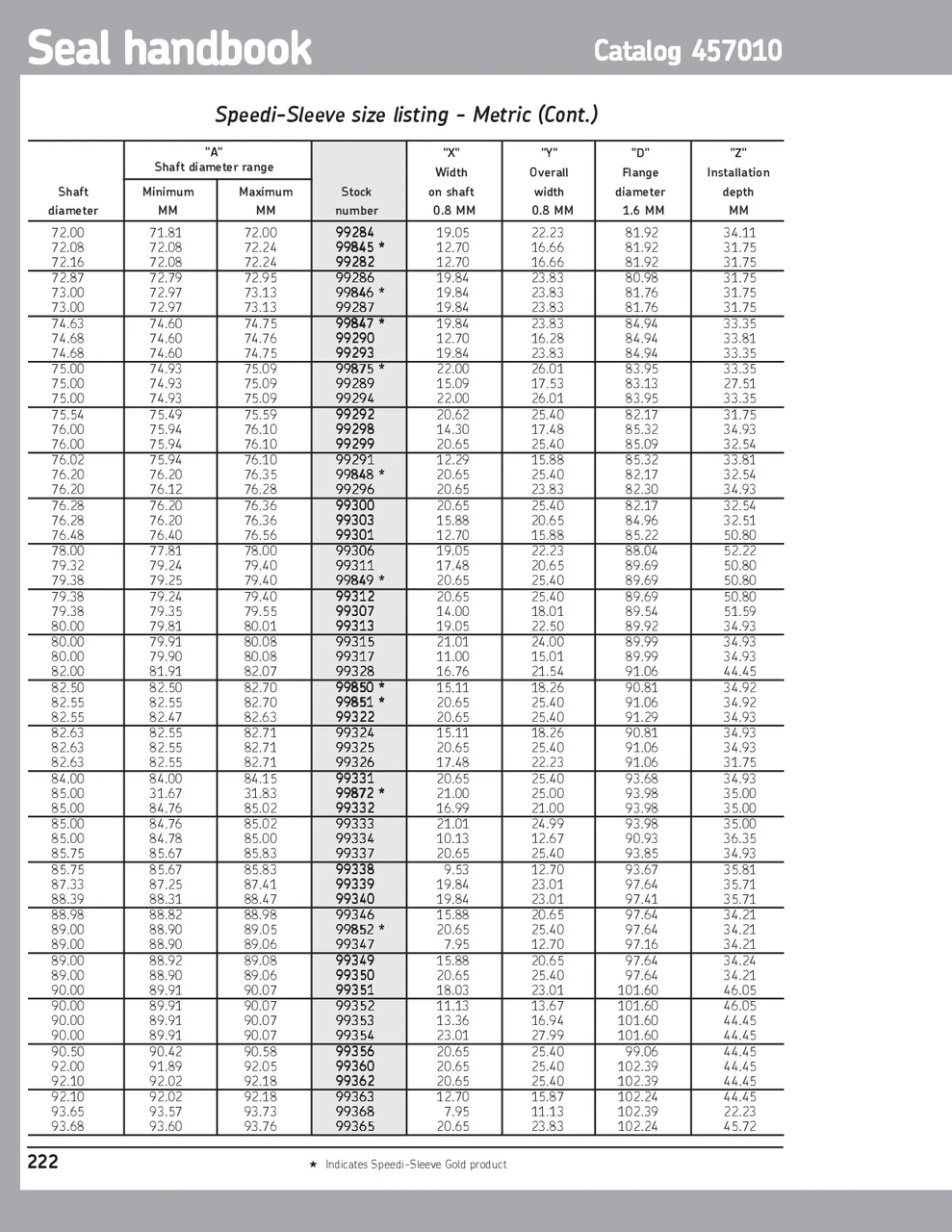

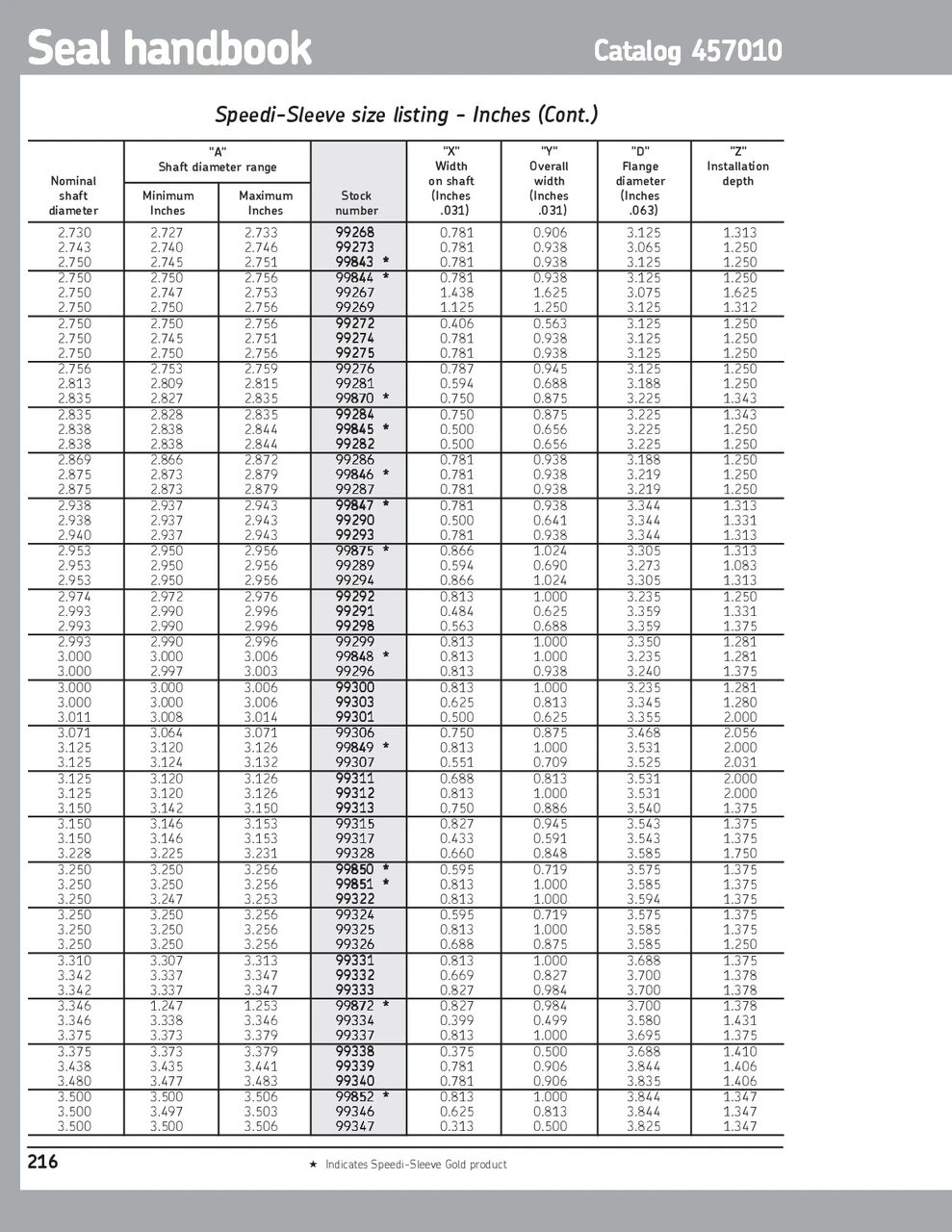

SKF Seals Handbook 457010
Shaft fit range
Shaft fit range 3.346"
Shaft fit range 85.00mm
Material Stainless steel
Removable installation flange Yes
