  • 25 GPM 12V Extreme Temperature Rated V25® Series Fuel Transfer Pump 170000-06
  • 25 GPM 12V Extreme Temperature Rated V25® Series Fuel Transfer Pump 170000-06
  • 25 GPM 12V Extreme Temperature Rated V25® Series Fuel Transfer Pump 170000-06
  • 25 GPM 12V Extreme Temperature Rated V25® Series Fuel Transfer Pump 170000-06

    • 25 GPM 12V Extreme Temperature Rated V25® Series Fuel Transfer Pump 170000-06

    GPI

    $2,465.42
    (No reviews yet) Write a Review
    SKU:
    GPI 170000-06
    UPC:
    UPC 031401008272
    Weight:
    0.00 LBS
    Compatible fluids:
    Diesel, Gasoline, Kerosene, Ethanol blends (E15), Bio-diesel blends (B20)
    Voltage:
    12V (DC)
    Nozzle type:
    1 in. FNPT Inlet, Automatic Shut-off, Diesel
    Mount type:
    Direct Mount, 2in. male NPT
    Power cord:
    18 ft. (5.5m), 10/2 AWG, Factory Installed
    Dispensing hose:
    18ft. (5.5M) x 1 in. Dispensing Hose
    RPM:
    1620
    Horsepower:
    1/3HP
    Inlet connection:
    NPT
    Outlet connection:
    NPT
    Pump housing material:
    Cast Iron
    Adding to cart… category.add_cart_announcement

    Product Description

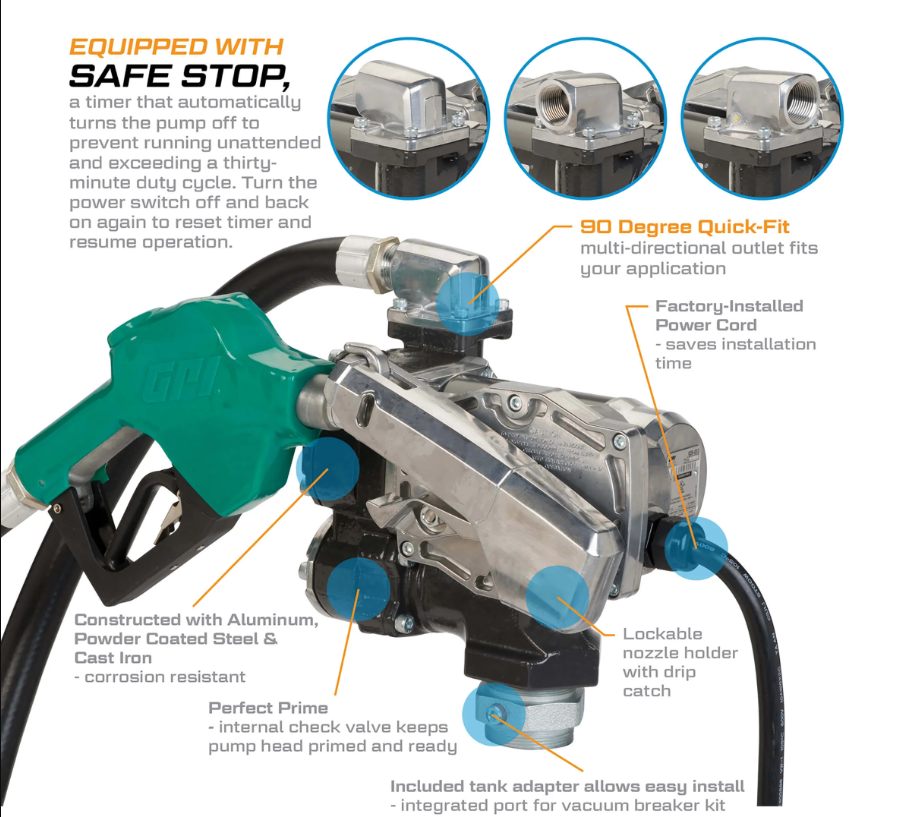

  • For environments with EXTREME TEMPERATURES - Tested to -40° F (-40° C), the GPRO V25-012 XT series is the next-generation modular vane pump.
  • The V25 is engineered to deliver consistent high-pressure performance from a tough, hard-working modular vane pump.
  • 12V DC motor delivers up to 25 GPM (94 L/min).
  • It’s fast and flexible; able to load up to 750 gallons of fuel uninterrupted, with a quick-fit modular system (4 bolts and an o-ring) that allows easy, leak-free attachment of filter, meter, or both.
  • Extreme temperature series (XT) models available.
  • Whether your business is agriculture, construction, or managing vehicle fleets, staying fueled up is critical and it must be a quick and dependable process.

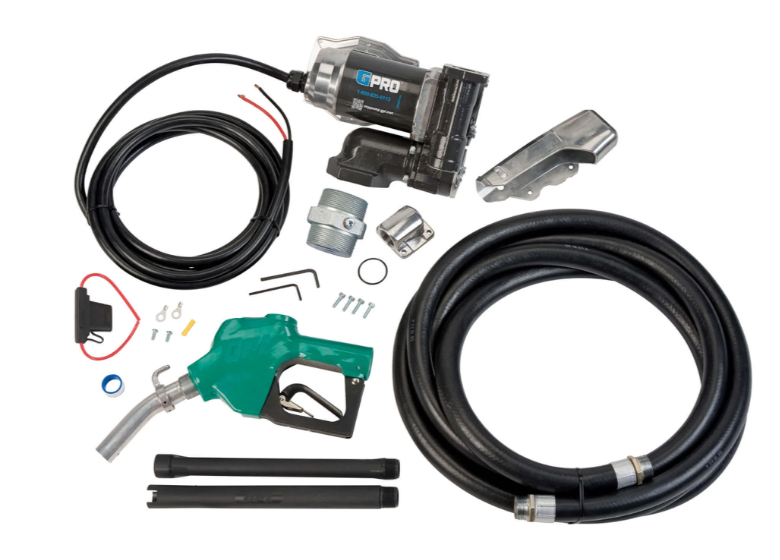

  • Includes:V25-12AD 12V DC 25 GPM fuel transfer pump, auto shut-off diesel nozzle, dispensing hose, factory-installed power cord, telescoping suction pipe, modular fitting w/hardware, tank adapter, fuse assembly, owner's manual

    adobepdficon.png GPI Catalog

    • Product Videos

    Custom Field

    Compatible fluids Diesel, Gasoline, Kerosene, Ethanol blends (E15), Bio-diesel blends (B20)
    Voltage 12V (DC)
    Nozzle type 1 in. FNPT Inlet, Automatic Shut-off, Diesel
    Mount type Direct Mount, 2in. male NPT
    Power cord 18 ft. (5.5m), 10/2 AWG, Factory Installed
    Dispensing hose 18ft. (5.5M) x 1 in. Dispensing Hose
    RPM 1620
    Horsepower 1/3HP
    Inlet connection NPT
    Outlet connection NPT
    Pump housing material Cast Iron
